Do I need to already own the Eventuri intake to use the Carbon Charge Pipe V3 Upgrade Kit?

Yes. The Eventuri Carbon Charge Pipe V3 Upgrade Kit is designed only for FK8 Honda Civic Type R owners who already run the earlier Eventuri carbon turbo tube system. It is an upgrade to that setup, not a complete standalone intake, so it will not fit a factory airbox or another brand's intake.

How much power does the V3 charge pipe add?

Eventuri's dyno testing shows gains of 9hp and 9ft-lb at peak, rising to as much as 15hp and 18ft-lb in the mid-range below 4,000rpm, where the FK8 spends most of its street and track time. The larger bore reduces turbine loading, so the turbo spools faster and boost builds more quickly.

Does fitting the V3 pipe require a tune?

No. It is a bolt-on hardware upgrade that runs on your existing setup with no ECU remap needed. The gains come from the physical increase in pipe volume: the internal diameter grows from the OEM 63mm to 78mm at the inlet and 88mm through the main section, a 96% increase in cross-sectional area over the factory pipe.

What does the V3 design improve over the original pipe?

It is built from high-temperature pre-preg carbon fiber with a smooth internal surface and optimized curvature, which cuts turbulence compared with the rough cast-aluminium OEM inlet. A machined turbo flange, silicone coupler, and integrated thermal spacer block heat conduction from the turbocharger into the carbon, helping keep intake air temperatures lower under load.

Can I return the kit, and is it street legal?

The kit is not eligible for return once opened, so confirm you have the required Eventuri turbo tube before fitting. Emissions rules vary by region, so check local legality first; charge pipes of this type are generally not CARB approved and are not for sale in California or other CARB states.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Eventuri Carbon Charge Pipe V3 Upgrade Kit for FK8 Honda Civic Type-R

Eventuri introduces an updated FK8 Carbon Turbo Tube with increased internal volume, enabling the turbo to operate with less restriction for greater performance. The design focuses on three core objectives: maximizing airflow capacity, minimizing pressure loss, and maintaining stable inlet temperatures for consistent, repeatable gains.

VOLUME

Eventuri specifies inlet diameters of 78mm at the intake end expanding to 88mm through the main section, versus the OEM’s 63mm. By matching the MAF tube at the connection and then increasing to 88mm, the tube delivers approximately a 96% increase in cross-sectional area over stock, encapsulating substantially greater internal volume to de-restrict the flow path to the turbo. The result is improved turbo efficiency with quicker spool to peak boost and reduced turbine loading when sustaining peak boost.

FLOW QUALITY

Eventuri emphasizes that sheer volume is ineffective without a clean, controlled flow path. By utilizing high-temperature prepreg carbon fiber, the inlet achieves a notably smooth internal surface, unlike the OEM cast-aluminum tube’s rough interior. Paired with a carefully contoured elbow, this geometry minimizes turbulence and preserves laminar flow to the turbo for more efficient operation.

TEMPERATURE

Eventuri prioritizes minimizing heat conduction into the intake charge. Whereas the OEM inlet bolts directly to the turbo and rapidly conducts heat during spool, Eventuri employs a machined flange mated to the turbo, followed by a silicone coupler with an integrated thermal spacer to isolate the carbon elbow from direct contact. Combined with carbon fiber’s inherently low through-thickness thermal conductivity, this barrier reduces heat transfer to the incoming airflow.

Features

Enlarged carbon turbo tube for ~96% greater cross-sectional area
Matched MAF connection and smooth, contoured elbow to minimize turbulence
Prepreg carbon construction with low-roughness interior for superior flow quality
Reduced pressure loss enables quicker spool and lower turbine loading at peak boost
Thermal isolation to limit heat soak
Stable inlet temperatures support consistent, repeatable performance gains

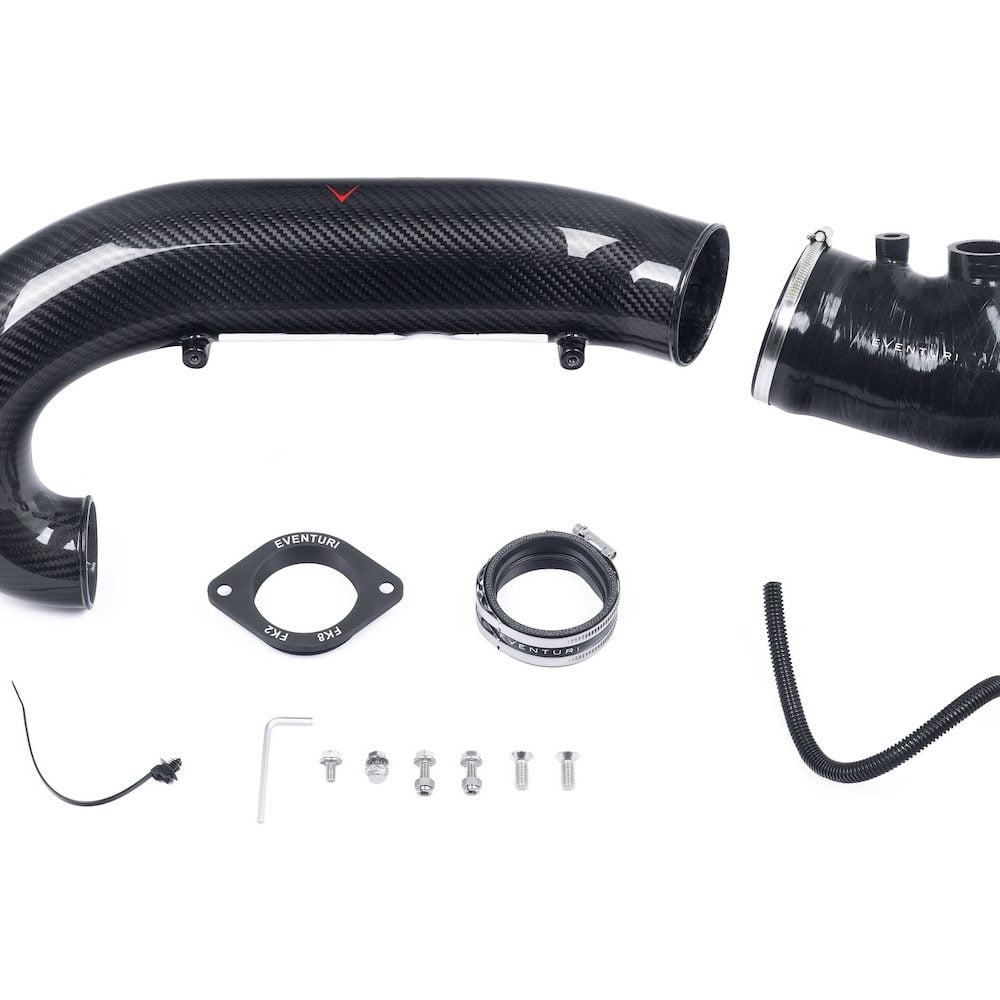

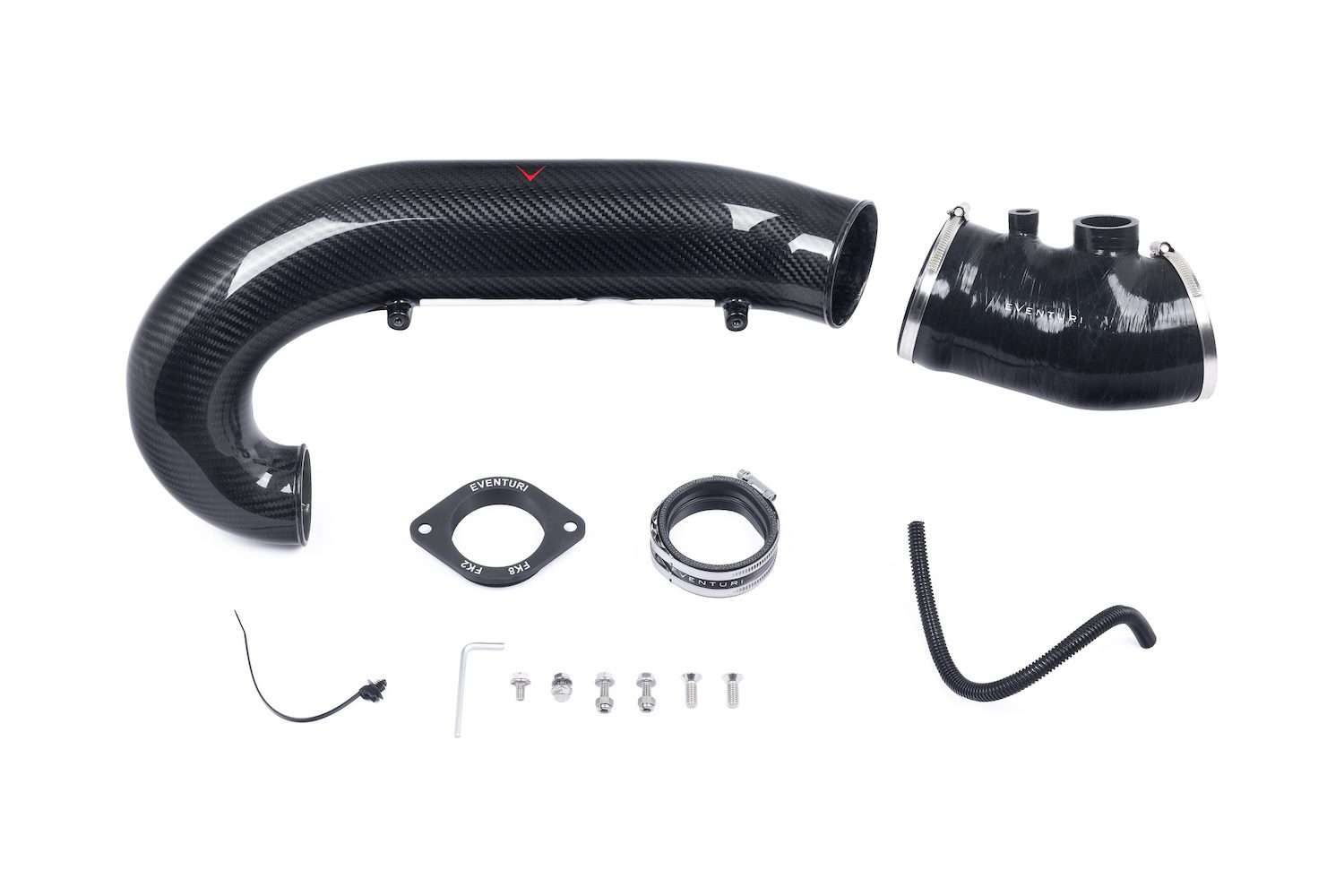

What’s Included

Carbon Fiber Turbo Tube
Laser Cut Stainless Steel Brackets
Anti-Vibration Mount

Applications

Honda Civic Type-R: FK8 (2017-2021)
[K20C1 – 2.0L I4 Turbo]

Notes

This item is not eligible for return
Only compatible for FK8 Models with the carbon turbo tube installed

Frequently Asked Questions

Do I need to already own the Eventuri intake to use the Carbon Charge Pipe V3 Upgrade Kit? Yes. The Eventuri Carbon Charge Pipe V3 Upgrade Kit is designed only for FK8 Honda Civic Type R owners who already run the earlier Eventuri carbon turbo tube system. It is an upgrade to that setup, not a complete standalone intake, so it will not fit a factory airbox or another brand’s intake.
How much power does the V3 charge pipe add? Eventuri’s dyno testing shows gains of 9hp and 9ft-lb at peak, rising to as much as 15hp and 18ft-lb in the mid-range below 4,000rpm, where the FK8 spends most of its street and track time. The larger bore reduces turbine loading, so the turbo spools faster and boost builds more quickly.
Does fitting the V3 pipe require a tune? No. It is a bolt-on hardware upgrade that runs on your existing setup with no ECU remap needed. The gains come from the physical increase in pipe volume: the internal diameter grows from the OEM 63mm to 78mm at the inlet and 88mm through the main section, a 96% increase in cross-sectional area over the factory pipe.
What does the V3 design improve over the original pipe? It is built from high-temperature pre-preg carbon fiber with a smooth internal surface and optimized curvature, which cuts turbulence compared with the rough cast-aluminium OEM inlet. A machined turbo flange, silicone coupler, and integrated thermal spacer block heat conduction from the turbocharger into the carbon, helping keep intake air temperatures lower under load.
Can I return the kit, and is it street legal? The kit is not eligible for return once opened, so confirm you have the required Eventuri turbo tube before fitting. Emissions rules vary by region, so check local legality first; charge pipes of this type are generally not CARB approved and are not for sale in California or other CARB states.

About Eventuri

Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for their own cars and being disappointed with the gains which seldom lived up to their claims – they decided to take things into our own hands and rewrite the book. To set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures. Their systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. They strive to publish all the development information to illustrate the depths they go to in bringing an intake from concept to reality. Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none. After many years of disappointment with the usual aftermarket intakes, they are proud to be raising the bar and creating intake systems which are setting a new standard and genuinely improve the performance of your vehicle.
