Eventuri Black Carbon Intake System for F10 BMW M5

Eventuri Black Carbon Intake System for F10 BMW M5

The F10 M5 intake system was developed through extensive dyno testing, velocity testing, and flow optimization. Eventuri designed a comprehensive system, including front air ducts, filter housings, and inlet tubes leading to the turbos. This system provides an efficient and smooth airflow path, reducing resistance to the turbos and enhancing performance. Each component of the Eventuri F10 M5 intake system is meticulously engineered for a specific function and fabricated to the highest standards.

The Eventuri Difference

• The F10 M5 Eventuri system features their patent-pending carbon fiber housing, designed to create an aerodynamically efficient airflow path from the filter to the MAF tube. This is not just a typical cone filter with a heat shield, but a unique design that utilizes the Venturi effect for optimal performance.

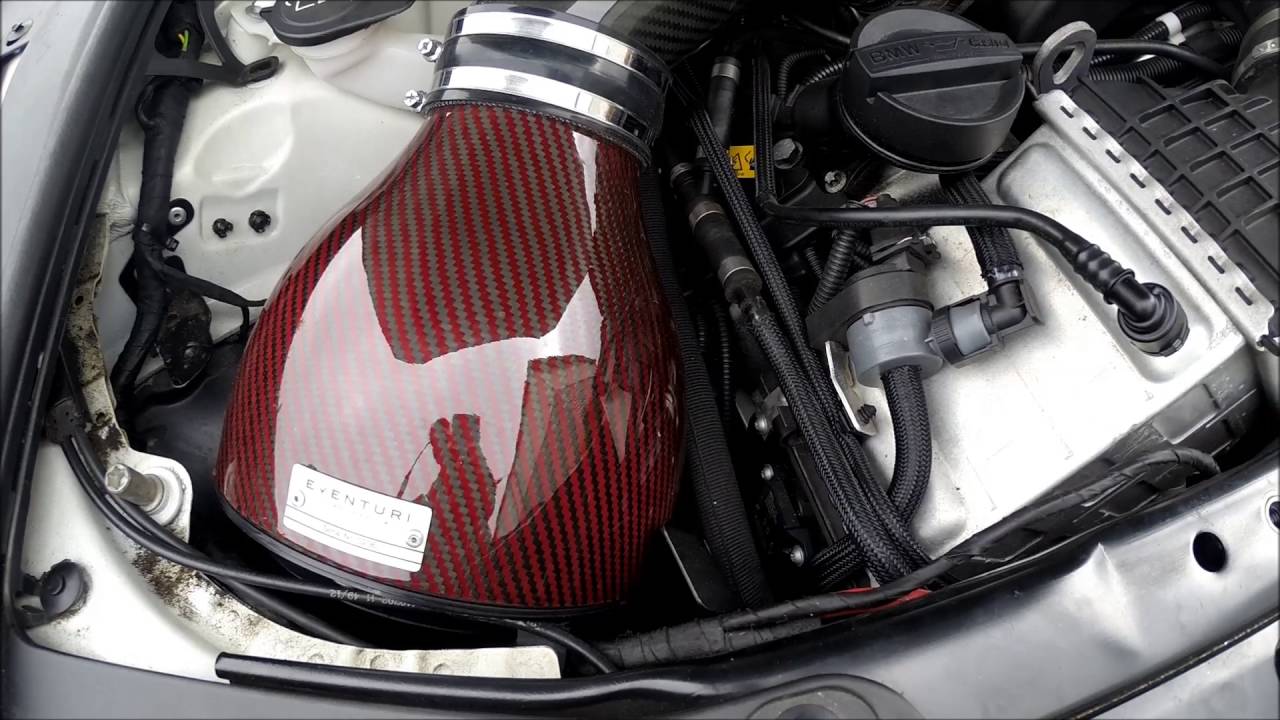

Carbon Intake Housing Assemblies

• The filter housings consist of high-flow filters, aluminum cowls, and carbon pods. The carbon pods enclose the reverse-mounted filters and smoothly direct the airflow toward the intake tubes. The gradual reduction in cross-sectional area invokes the Venturi effect, accelerating airflow while maintaining laminar flow conditions. This design functions similarly to a large velocity stack.

Carbon Intake Tubes

• Eventuri’s intake tubes are crafted from 100% prepreg carbon fiber. Each tube features an integrated CNC-machined aluminum MAF sensor mount. The tubes provide a smooth connection between the filter housings and turbo inlets, replacing the stock corrugated flexi-tubes, which disrupt airflow. Eventuri ensured that the carbon tubes maintain a true circular cross-section, even at the MAF sensor, to optimize flow characteristics.

Carbon Fiber Air Scoops

• The scoops are designed for maximum efficiency in channeling incoming air to the stock duct openings. Unlike many aftermarket scoops, which feature a large flat surface that sits nearly perpendicular to the airflow—causing turbulence—the Eventuri scoops are specifically shaped to guide air smoothly into the ducts, reducing disruption and improving airflow.
• Unlike most aftermarket “scoops,” the Eventuri scoops are designed to extend from the stock duct openings all the way to the grilles. To capture the maximum amount of air, they are contoured to match the shape of the outer edges of the grilles and smoothly channel ambient air through a continuous curve to the duct openings, ensuring efficient airflow.
• An effective cold air feed to the filters is a crucial aspect of Eventuri’s design. Heat shields alone are not sufficient to prevent heated air from entering the filters unless they create a completely airtight seal around them. The system’s scoops and shields work together to deliver ambient air to the filter openings, ensuring low intake air temperatures and optimal performance.

Shields / Flow Deflectors

• The filter housings are positioned with their openings nestled within the flow deflectors. These deflectors capture the cold air channeled from the front scoops and help to displace hot air surrounding the filter openings, ensuring optimal airflow and temperature control.

Features

• Improved performance and sound
• Lower IAT’s
• Smoother airflow
• 100% pre-preg carbon

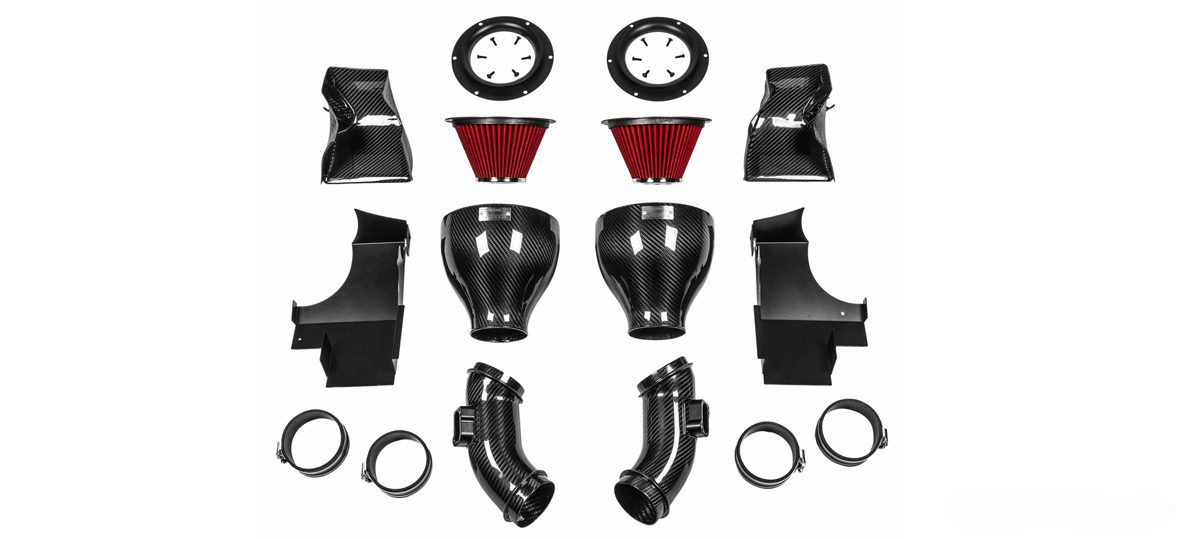

Kit Contents

• Aluminum cowls for smooth airflow entry (2)
• Carbon front scoops (2)
• Carbon venturi housings (2)
• High flow double cone air filters (2)
• Laser cut aluminum shields with integrated flow deflectors (2)
• High quality silicon couplers with BMW specification hose clamps
• Left side carbon tube with integrated MAF sensor mount
• Right side carbon tube with integrated MAF sensor mount

Applications

• BMW M5: F10 (2012-2016) – 4.4L TT V8

Notes

• The scoops are simple to install – they snap onto the existing strut brace and are then held in position by the front grills
• This item is not eligible for return

About Eventuri

Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for their own cars and being disappointed with the gains which seldom lived up to their claims – they decided to take things into our own hands and rewrite the book. To set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures. Their systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. They strive to publish all the development information to illustrate the depths they go to in bringing an intake from concept to reality. Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none. After many years of disappointment with the usual aftermarket intakes, they are proud to be raising the bar and creating intake systems which are setting a new standard and genuinely improve the performance of your vehicle.
