What does the Racing MONO6 TA Big Brake Kit for R35 change over the factory brakes?

It moves the front rotor from the factory 380mm x 34mm to 400mm x 36mm two-piece E-slit rotors, with the pipeless forged monobloc Racing MONO6 TA caliper. The larger, thicker rotor gives more thermal capacity for repeated stops, and the caliper uses a GT-R-specific RCP123 pad.

Why does Endless ask for the hub bolt size on the Racing MONO6 TA kit for the R35 GT-R?

The R35 has been built with M12 and M14 hub bolts, and Endless needs to know which your car uses to supply the correct parts. Check the bolts or the build date before ordering, and we will pass the size to Endless with the order for this Big Brake Kit for R35.

What is different about a TA caliper?

The TA version of the Racing MONO6 has no external fluid crossover pipe, a 3D-cut surface to help it shed heat, and stainless pistons. Endless rates the body at 110 percent of the original Racing MONO6 rigidity. On the GT-R it runs with Tufram-coated rotor bells as well.

Which pad compound is supplied with the Racing MONO6 TA kit for the R35 GT-R?

Endless Japan lists SR01, MX72 and MX72 PLUS for the Racing MONO6 TA and supplies MX72 when no compound is chosen. MX72 is a semi-metallic street and light track pad rated from 50 to 700 degrees C. For heavier circuit use, ask us about the other compounds.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless Racing MONO6 TA Front Big Brake Kit for R35 Nissan GT-R

Endless’s Racing MONO6 TA Front Big Brake Kit for R35 Nissan GT-R replaces the factory 380mm x 34mm front discs with 400mm x 36mm two-piece E-slit rotors on Tufram-coated bells, clamped by the pipeless TA caliper. The forged monobloc body has no external fluid pipe, a 3D-cut surface to help it cool, and stainless pistons that keep pedal feel consistent as heat builds, and Endless rates it at 110 percent of the original Racing MONO6 rigidity. The GT-R gets its own RCP123 pad shape in this caliper. It suits an R35 that sees regular circuit work and needs more front rotor than the factory system offers.

Features

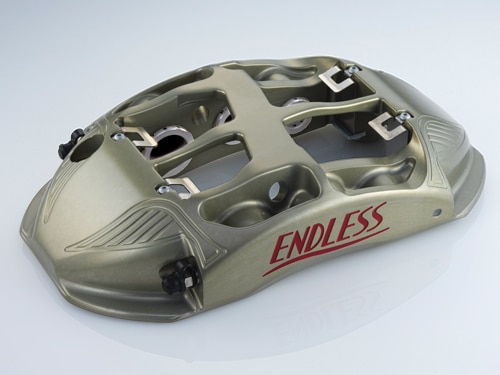

Pipeless forged monobloc Racing MONO6 TA caliper
400mm x 36mm two-piece E-slit rotors, up from the factory 380mm
Tufram-coated aluminium rotor bells
Stainless steel pistons and a 3D-cut caliper surface
RCP123 pad shape for the GT-R
110 percent of the original Racing MONO6 rigidity, per Endless

Specifications

Caliper: Endless Racing MONO6 TA, six-piston forged monobloc, pipeless
Caliper weight: 2,880g (Endless USA; Endless Japan lists 3,015g)
Caliper size: 177mm x 72mm x 305mm
Finish: Hard anodised, no colour options
Rotors: 400mm x 36mm, two-piece
Caliper rotor range: 355mm to 400mm diameter
Pad shape: RCP123
Minimum wheel size: 18 inch, per Endless

What’s Included

Endless Racing MONO6 TA calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 400mm x 36mm two-piece
Brake lines (2)

Applications

Nissan GT-R: R35 | 2009-2025

Notes

Front axle only. The rear brakes stay as they are unless the matching rear kit is added
Endless needs the hub bolt size, M12 or M14, when the order is placed
Endless USA lists the caliper at 2,880g and Endless Japan at 3,015g
An 18 inch wheel is the Endless minimum; check spoke clearance against the template
Replace the E-slit rotors when the E marks are worn, and use DOT4 or higher fluid
Made to order in Japan. This Big Brake Kit for R35 has a lead time confirmed after ordering

Frequently Asked Questions

What does the Racing MONO6 TA Big Brake Kit for R35 change over the factory brakes? It moves the front rotor from the factory 380mm x 34mm to 400mm x 36mm two-piece E-slit rotors, with the pipeless forged monobloc Racing MONO6 TA caliper. The larger, thicker rotor gives more thermal capacity for repeated stops, and the caliper uses a GT-R-specific RCP123 pad.
Why does Endless ask for the hub bolt size on the Racing MONO6 TA kit for the R35 GT-R? The R35 has been built with M12 and M14 hub bolts, and Endless needs to know which your car uses to supply the correct parts. Check the bolts or the build date before ordering, and we will pass the size to Endless with the order for this Big Brake Kit for R35.
What is different about a TA caliper? The TA version of the Racing MONO6 has no external fluid crossover pipe, a 3D-cut surface to help it shed heat, and stainless pistons. Endless rates the body at 110 percent of the original Racing MONO6 rigidity. On the GT-R it runs with Tufram-coated rotor bells as well.
Which pad compound is supplied with the Racing MONO6 TA kit for the R35 GT-R? Endless Japan lists SR01, MX72 and MX72 PLUS for the Racing MONO6 TA and supplies MX72 when no compound is chosen. MX72 is a semi-metallic street and light track pad rated from 50 to 700 degrees C. For heavier circuit use, ask us about the other compounds.
What comes in the Racing MONO6 TA kit for the R35 GT-R? Two Racing MONO6 TA calipers, a set of RCP123 Endless pads, mounting brackets, two 400mm x 36mm two-piece E-slit rotors on Tufram-coated bells and two brake lines. Endless specifies DOT4 or higher fluid, which is not included in the kit.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
