Is the 400mm Racing MONO6 TA Big Brake Kit for JZA80 overkill?

For a near-stock Supra on the street, yes. The 400mm x 36mm rotor and TA caliper are aimed at a heavily modified JZA80 braking from high speed on circuit. For mostly road use, the 370mm TA kit or a standard Racing MONO6 kit is a better match.

What wheel size does it need?

Plan on 19 inch or larger, though it depends on the wheel. Endless gives 18 inch as the minimum for the caliper, but the 400mm rotor moves it outward. Send us your wheel size, brand and offset and we will check them against the Endless template.

How is it different from the standard 400mm Racing MONO6 kit?

Same rotor and pad, different caliper. The TA body runs its fluid internally rather than through an external pipe, has a 3D-cut surface for cooling and uses stainless pistons. It costs more than the standard Racing MONO6 kit on the same 400mm rotor.

Why are the bells Tufram coated?

Endless coats the aluminium rotor bells on its TA kits with Tufram, which it says holds adhesion and resists corrosion better than anodising at circuit temperatures. On a 400mm rotor that runs hot, a durable bell finish is worth having.

What comes in the 400mm Racing MONO6 TA kit for the JZA80 Supra?

Two Racing MONO6 TA calipers, RCP123 Endless pads, mounting brackets, two 400mm x 36mm two-piece E-slit rotors on Tufram-coated bells and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for JZA80 and is not supplied.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless Racing MONO6 TA Front Big Brake Kit for JZA80 Toyota Supra with 400mm Rotors

Endless’s Racing MONO6 TA Front Big Brake Kit for JZA80 Toyota Supra with 400mm rotors is the largest TA kit Endless USA lists for the car, pairing 400mm x 36mm two-piece E-slit rotors on Tufram-coated bells with the pipeless Racing MONO6 TA. The forged monobloc caliper runs its fluid internally, is 3D cut over its surface and uses stainless pistons; Endless rates it at 110 percent of the original Racing MONO6 rigidity. With the thickest rotor of the Supra range at 36mm, it is the kit for a heavily modified JZA80 that brakes from high speed lap after lap.

Features

400mm x 36mm two-piece E-slit rotors, the largest TA size for the JZA80
Pipeless forged monobloc Racing MONO6 TA caliper
Stainless steel pistons and a 3D-cut surface
110 percent of the original Racing MONO6 rigidity, per Endless
Tufram-coated rotor bells
RCP123 pad shape

Specifications

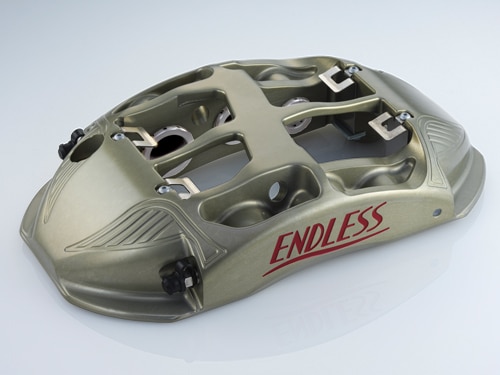

Caliper: Endless Racing MONO6 TA, six-piston forged monobloc, pipeless
Caliper weight: 2,880g (Endless USA; Endless Japan lists 3,015g)
Caliper size: 177mm x 72mm x 305mm
Finish: Hard anodised, no colour options
Rotors: 400mm x 36mm, two-piece
Pad shape: RCP123
Minimum wheel size: 18 inch, per Endless

What’s Included

Endless Racing MONO6 TA calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 400mm x 36mm two-piece
Brake lines (2)

Applications

Toyota Supra: JZA80 | 1993-1998

Notes

Front axle only. Rear kits are listed separately for the Supra
A 400mm rotor needs a large wheel, so check clearance before ordering this Big Brake Kit for JZA80
Endless USA lists the caliper at 2,880g and Endless Japan at 3,015g
Endless Japan supplies MX72 pads with its TA calipers unless SR01 or MX72 PLUS is chosen
Replace the E-slit rotors when the E marks are worn
Made to order in Japan; use DOT4 or higher fluid

Frequently Asked Questions

Is the 400mm Racing MONO6 TA Big Brake Kit for JZA80 overkill? For a near-stock Supra on the street, yes. The 400mm x 36mm rotor and TA caliper are aimed at a heavily modified JZA80 braking from high speed on circuit. For mostly road use, the 370mm TA kit or a standard Racing MONO6 kit is a better match.
What wheel size does it need? Plan on 19 inch or larger, though it depends on the wheel. Endless gives 18 inch as the minimum for the caliper, but the 400mm rotor moves it outward. Send us your wheel size, brand and offset and we will check them against the Endless template.
How is it different from the standard 400mm Racing MONO6 kit? Same rotor and pad, different caliper. The TA body runs its fluid internally rather than through an external pipe, has a 3D-cut surface for cooling and uses stainless pistons. It costs more than the standard Racing MONO6 kit on the same 400mm rotor.
Why are the bells Tufram coated? Endless coats the aluminium rotor bells on its TA kits with Tufram, which it says holds adhesion and resists corrosion better than anodising at circuit temperatures. On a 400mm rotor that runs hot, a durable bell finish is worth having.
What comes in the 400mm Racing MONO6 TA kit for the JZA80 Supra? Two Racing MONO6 TA calipers, RCP123 Endless pads, mounting brackets, two 400mm x 36mm two-piece E-slit rotors on Tufram-coated bells and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for JZA80 and is not supplied.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
