Who is the 390mm Racing MONO6 TA Big Brake Kit for JZA80 for?

A Supra that sees regular track sessions and runs wheels large enough for the bigger rotor. It adds 20mm of rotor diameter over the 370mm kit for more heat capacity, without needing the space the 400mm kit takes, and uses the same pipeless caliper and pad.

Will 18 inch wheels clear the 390mm rotor?

Some may not. Endless gives 18 inch as the caliper minimum, but a 390mm rotor moves the caliper further out, and many 18 inch wheels will not clear it. We check your exact wheel size, brand and offset against the Endless template before ordering.

What makes the TA caliper different?

The TA body carries brake fluid internally instead of through an external pipe, is 3D cut over its surface to help it cool, and uses stainless pistons. Endless rates it at 110 percent of the original Racing MONO6 rigidity, and pairs it with Tufram-coated rotor bells.

How do I know when the rotors are worn?

The E-slit rotors carry small E-shaped marks machined into the face alongside the long slits. Endless says to replace the rotor when those marks have worn away, which makes the check a quick visual one whenever the wheels are off.

What comes with the Endless kit?

Two Racing MONO6 TA calipers, RCP123 Endless pads, mounting brackets, two 390mm x 34mm two-piece E-slit rotors on Tufram-coated bells and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for JZA80 and is not supplied.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless Racing MONO6 TA Front Big Brake Kit for JZA80 Toyota Supra with 390mm Rotors

Endless’s Racing MONO6 TA Front Big Brake Kit for JZA80 Toyota Supra with 390mm rotors is the middle of the three TA sizes Endless USA lists for the car: 390mm x 34mm two-piece E-slit rotors on Tufram-coated bells under the pipeless Racing MONO6 TA. The caliper is a forged monobloc with no external fluid pipe, a 3D-cut surface and stainless pistons, and Endless rates it at 110 percent of the original Racing MONO6 rigidity. At 390mm the rotor adds real diameter over the 370mm kit without going to the full 400mm, which suits a Supra on 19 inch wheels that sees regular circuit time.

Features

390mm x 34mm two-piece E-slit rotors
Pipeless forged monobloc Racing MONO6 TA caliper
Stainless steel pistons hold pedal feel when hot
3D-cut caliper surface
Tufram-coated rotor bells
RCP123 pad shape

Specifications

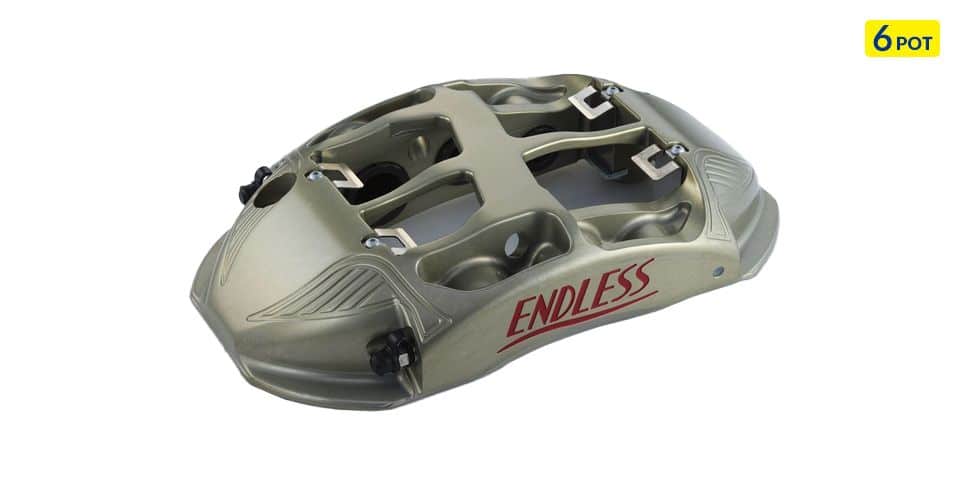

Caliper: Endless Racing MONO6 TA, six-piston forged monobloc, pipeless
Caliper weight: 2,880g (Endless USA; Endless Japan lists 3,015g)
Caliper size: 177mm x 72mm x 305mm
Finish: Hard anodised, no colour options
Rotors: 390mm x 34mm, two-piece
Pad shape: RCP123
Minimum wheel size: 18 inch, per Endless

What’s Included

Endless Racing MONO6 TA calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 390mm x 34mm two-piece
Brake lines (2)

Applications

Toyota Supra: JZA80 | 1993-1998

Notes

Front axle only. This Big Brake Kit for JZA80 leaves the rear brakes in place
The 390mm rotor needs more room inside the wheel than the 370mm kit; check clearance first
Endless USA lists the caliper at 2,880g and Endless Japan at 3,015g
Endless Japan supplies MX72 pads with its TA calipers unless SR01 or MX72 PLUS is chosen
Backing plate trimming is usually required at installation
Made to order in Japan; use DOT4 or higher fluid

Frequently Asked Questions

Who is the 390mm Racing MONO6 TA Big Brake Kit for JZA80 for? A Supra that sees regular track sessions and runs wheels large enough for the bigger rotor. It adds 20mm of rotor diameter over the 370mm kit for more heat capacity, without needing the space the 400mm kit takes, and uses the same pipeless caliper and pad.
Will 18 inch wheels clear the 390mm rotor? Some may not. Endless gives 18 inch as the caliper minimum, but a 390mm rotor moves the caliper further out, and many 18 inch wheels will not clear it. We check your exact wheel size, brand and offset against the Endless template before ordering.
What makes the TA caliper different? The TA body carries brake fluid internally instead of through an external pipe, is 3D cut over its surface to help it cool, and uses stainless pistons. Endless rates it at 110 percent of the original Racing MONO6 rigidity, and pairs it with Tufram-coated rotor bells.
How do I know when the rotors are worn? The E-slit rotors carry small E-shaped marks machined into the face alongside the long slits. Endless says to replace the rotor when those marks have worn away, which makes the check a quick visual one whenever the wheels are off.
What comes with the Endless kit? Two Racing MONO6 TA calipers, RCP123 Endless pads, mounting brackets, two 390mm x 34mm two-piece E-slit rotors on Tufram-coated bells and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for JZA80 and is not supplied.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
