Is the Racing MONO4r Big Brake Kit for RZ34 being replaced?

Endless announced on 30 September 2026 that it is redesigning the Racing MONO4r with its latest analysis methods and larger rotor options, with deliveries expected from around April 2027. The current caliper in this kit is sold until stock runs out, and we will tell you which version your Big Brake Kit for RZ34 order receives.

Why does the Endless USA sheet list the Racing MONO4r kit for the RZ34 Z as Racing Mono4?

Endless USA lists the RZ34 rear kit as Racing Mono4, but the RCP147 pad it specifies belongs to the Racing MONO4r, the rear-only version of the caliper. We use the MONO4r name so the listing matches the caliper Endless actually supplies for the rear axle.

Does the rear kit need a matching front kit?

No part of the installation depends on a front kit. Endless designed the MONO4r to pair with its Racing MONO6 front and sells the two as a set, so most owners buy this kit to complete a car that already has a Racing MONO6 up front.

Does the Racing MONO4r kit for the RZ34 Z keep the parking brake?

The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.

What comes in the Endless Racing MONO4r rear kit?

Two Racing MONO4r calipers, an Endless pad set, mounting brackets, two 355mm x 32mm three-piece E-slit rotors and two brake lines. Fluid is not included, and Endless specifies DOT4 or higher. Replace the rotors once the E marks machined into the face have worn away.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

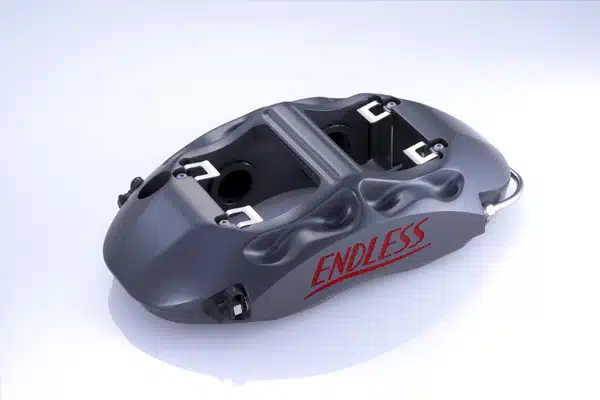

Endless Racing MONO4r Rear Big Brake Kit for RZ34 Nissan Z

Endless’s Racing MONO4r Rear Big Brake Kit for RZ34 Nissan Z carries the forged monobloc construction of the Racing MONO6 front to the rear axle. Endless builds the MONO4r as a rear-only caliper: EC4606N, 2,260g, two 27mm and two 32mm pistons, and a 15mm RCP147 pad. It runs a 355mm x 32mm three-piece E-slit rotor. Endless lists this caliper as Racing Mono4 on its US price sheet; the RCP147 pad identifies it as the MONO4r. It is the natural rear partner for a Racing MONO6 front, and overkill behind factory front brakes.

Features

EC4606N forged monobloc rear caliper, 2,260g
Four pistons, 27mm and 32mm, two of each
355mm x 32mm three-piece E-slit rotors
15mm RCP147 pad shape
Racing anodise finish, 15 inch minimum wheel
Rear partner to the Racing MONO6 front

Specifications

Caliper: Endless Racing MONO4r, four-piston forged monobloc
Caliper weight: 2,260g
Caliper size: 141mm x 72.5mm x 270mm
Piston sizes: 27mm x 2, 32mm x 2
Finish: Racing anodise
Rotors: 355mm x 32mm, three-piece
Caliper rotor range: 300mm to 355mm diameter
Pad shape: RCP147
Minimum wheel size: 15 inch, per Endless

What’s Included

Endless Racing MONO4r calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 355mm x 32mm three-piece
Brake lines (2)

Applications

Nissan Z: RZ34 | 2023-present

Notes

Rear axle only. Endless also sells this Big Brake Kit for RZ34 as a set with the Racing MONO6 front
Endless announced on 2026-09-30 a redesigned Racing MONO4r, with deliveries from around April 2027; current-design stock sells until it runs out
The three-piece rear rotors retain the factory parking brake
Endless USA lists this caliper as Racing Mono4; the RCP147 pad shape is the MONO4r rear caliper
Replace the E-slit rotors when the E marks have worn away, and use DOT4 or higher fluid
Made to order in Japan; lead time is confirmed once ordered

Frequently Asked Questions

Is the Racing MONO4r Big Brake Kit for RZ34 being replaced? Endless announced on 30 September 2026 that it is redesigning the Racing MONO4r with its latest analysis methods and larger rotor options, with deliveries expected from around April 2027. The current caliper in this kit is sold until stock runs out, and we will tell you which version your Big Brake Kit for RZ34 order receives.
Why does the Endless USA sheet list the Racing MONO4r kit for the RZ34 Z as Racing Mono4? Endless USA lists the RZ34 rear kit as Racing Mono4, but the RCP147 pad it specifies belongs to the Racing MONO4r, the rear-only version of the caliper. We use the MONO4r name so the listing matches the caliper Endless actually supplies for the rear axle.
Does the rear kit need a matching front kit? No part of the installation depends on a front kit. Endless designed the MONO4r to pair with its Racing MONO6 front and sells the two as a set, so most owners buy this kit to complete a car that already has a Racing MONO6 up front.
Does the Racing MONO4r kit for the RZ34 Z keep the parking brake? The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.
What comes in the Endless Racing MONO4r rear kit? Two Racing MONO4r calipers, an Endless pad set, mounting brackets, two 355mm x 32mm three-piece E-slit rotors and two brake lines. Fluid is not included, and Endless specifies DOT4 or higher. Replace the rotors once the E marks machined into the face have worn away.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
