What rear brakes come with the MONO6 Sports TA and BIG4 Big Brake Kit for RZ34?

Two Racing BIG4 calipers over 355mm x 32mm three-piece curving slit rotors. The BIG4 is a forged two-piece body with two 27mm and two 32mm pistons, and Endless designed it as the rear caliper to balance its six-piston front kits.

Is the set cheaper than buying both kits?

Yes, slightly. Endless prices the set below the MONO6 Sports TA front kit and the Racing BIG4 rear kit added together. The bigger reason to buy this Big Brake Kit for RZ34 now is that the front caliper is going out of production and may not be available later.

How does the parking brake work with this set?

The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.

Can I keep my factory wheels?

Possibly not. Endless notes that most factory wheels do not clear its calipers, with only a few exceptions, and gives 17 inch as the minimum for both calipers in this set. Send us your wheel size and brand and we will check it against the Endless template.

How do I bed in the Endless set?

Endless specifies raising rotor temperature to about 400 to 500 degrees C without hard braking, then letting everything cool naturally below 100 degrees C. Choose a dry day, because Endless notes that bedding in the rain can keep the pads from reaching their original performance.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless MONO6 Sports TA / Racing BIG4 Front and Rear Big Brake Kit for RZ34 Nissan Z with 355mm Rear Rotors

Endless’s MONO6 Sports TA / Racing BIG4 Front and Rear Big Brake Kit for RZ34 Nissan Z gives the rear axle the forged two-piece BIG4, a 3,486g four-piston caliper Endless built to balance its six-piston fronts. It sits over a 355mm x 32mm three-piece curving slit rotor, with 27mm and 32mm pistons in pairs and the RCP052 pad shape. The front half is the pipeless MONO6 Sports TA on 370mm rotors, a caliper Endless Japan has now taken out of production.

Features

Racing BIG4 rear caliper, 3,486g, four pistons
355mm x 32mm three-piece curving slit rear rotors
RCP052 rear pad shape
MONO6 Sports TA forged monobloc front caliper
370mm x 34mm two-piece front rotors
Endless lists the set as the Cut Logo type

Specifications

Front caliper: Endless MONO6 Sports TA, six-piston forged monobloc, pipeless
Front caliper weight: 2,660g
Front piston sizes: 27mm x 2, 32mm x 2, 38mm x 2
Front rotors: 370mm x 34mm, two-piece

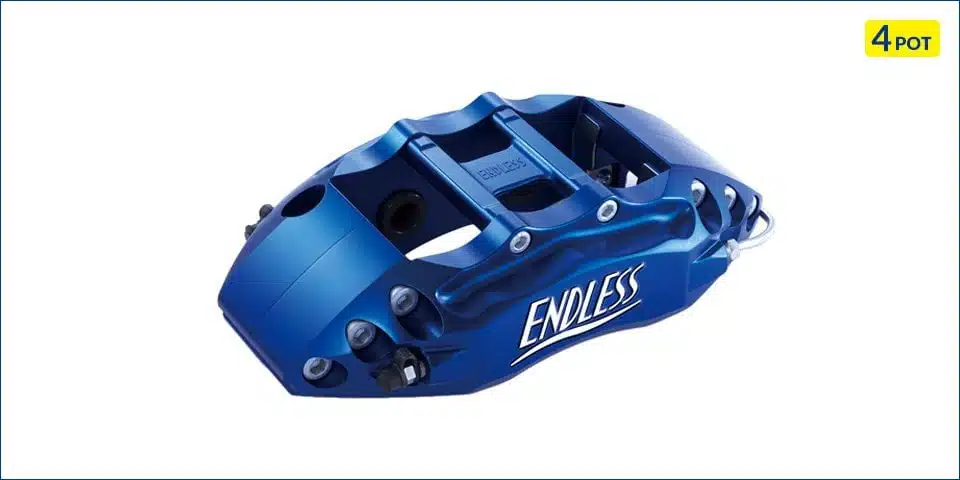

Rear caliper: Endless Racing BIG4, four-piston forged two-piece
Rear caliper weight: 3,486g
Rear piston sizes: 27mm x 2, 32mm x 2
Rear rotors: 355mm x 32mm, three-piece
Pad shapes: RCP180 front, RCP052 rear
Minimum wheel size: 17 inch front, per Endless

What’s Included

Endless MONO6 Sports TA front calipers (2)
Endless Racing BIG4 rear calipers (2)
Front and rear Endless brake pad sets
Caliper mounting brackets, front and rear
Front rotors (2), 370mm x 34mm two-piece
Rear rotors (2), 355mm x 32mm three-piece
Brake lines (4)

Applications

Nissan Z: RZ34 | 2023-present

Notes

Front and rear set. This Big Brake Kit for RZ34 is the same kit as the listing that leads with the 370mm front rotors
Endless Japan has ended MONO6 Sports TA production; the set is sold while caliper stock lasts
The three-piece rear rotors retain the factory parking brake
Standard RZ34 only, not the Z NISMO
Backing plate trimming is usually needed, and Endless specifies DOT4 or higher fluid
Made to order by Endless in Japan, with lead time confirmed after ordering

Frequently Asked Questions

What rear brakes come with the MONO6 Sports TA and BIG4 Big Brake Kit for RZ34? Two Racing BIG4 calipers over 355mm x 32mm three-piece curving slit rotors. The BIG4 is a forged two-piece body with two 27mm and two 32mm pistons, and Endless designed it as the rear caliper to balance its six-piston front kits.
Is the set cheaper than buying both kits? Yes, slightly. Endless prices the set below the MONO6 Sports TA front kit and the Racing BIG4 rear kit added together. The bigger reason to buy this Big Brake Kit for RZ34 now is that the front caliper is going out of production and may not be available later.
How does the parking brake work with this set? The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.
Can I keep my factory wheels? Possibly not. Endless notes that most factory wheels do not clear its calipers, with only a few exceptions, and gives 17 inch as the minimum for both calipers in this set. Send us your wheel size and brand and we will check it against the Endless template.
How do I bed in the Endless set? Endless specifies raising rotor temperature to about 400 to 500 degrees C without hard braking, then letting everything cool naturally below 100 degrees C. Choose a dry day, because Endless notes that bedding in the rain can keep the pads from reaching their original performance.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
