What rear brakes come in the 6POT and S4r Brake Kit for Toyota GR Corolla?

Two forged four-piston S4r calipers on 332mm x 30mm three-piece curving slit rotors with RCP167 pads. Endless pairs them with the 6POT front calipers in this set, and both are finished in the same blue anodise for a matched look front to rear.

Is the S4r a monobloc caliper?

No. The S4r is a forged four-piston caliper rather than a monobloc, which is part of why it costs less than the Racing MONO rears Endless lists for the GR Corolla. For a car used on the road and at track days it gives the rear axle a real upgrade.

Does the parking brake still work on the S4r rear set for the GR Corolla?

The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 332mm x 30mm three-piece rotors at the rear, so the GR Corolla keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.

Can I upgrade the front later?

Yes. Endless also lists the Racing MONO6 TA front for the GR Corolla on the same 370mm rotor size. If the car moves toward heavier circuit use, the Endless monobloc front and rear sets with a MONO2 TA or MONO4r TA rear are the next step up.

What is included in the S4r rear set for the GR Corolla?

Two 6POT front calipers, two S4r rear calipers, Endless pads for both axles, mounting brackets, two 370mm two-piece front rotors, two 332mm three-piece rear rotors and four brake lines. DOT4 or higher fluid is needed for the bleed of this Brake Kit for Toyota GR Corolla.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless 6POT / S4r Front and Rear Big Brake Kit for Toyota GR Corolla with 332mm Rear Rotors

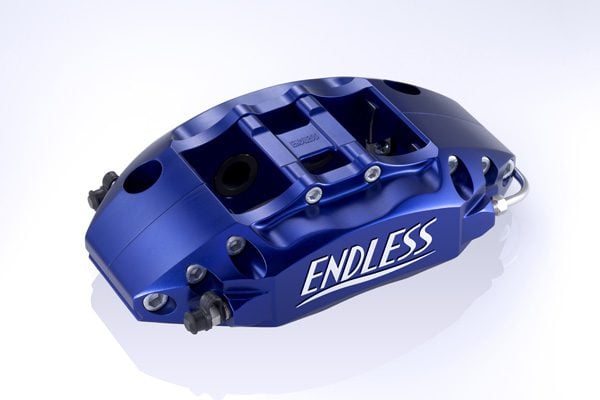

Endless’s 6POT / S4r Front and Rear Big Brake Kit for Toyota GR Corolla gives the rear of the car forged four-piston S4r calipers to match the 6POT front, the pairing Endless lists as its entry four-corner set for the GR Corolla. The S4r weighs 2,050g, is finished in blue anodise, and clamps 332mm x 30mm three-piece curving slit rotors with the RCP167 pad, the largest rotor Endless rates it for. The set is priced below the 6POT and S4r kits bought separately and ships as one order with all brackets and brake lines.

Features

Forged four-piston S4r rear caliper, 2,050g
332mm x 30mm three-piece curving slit rear rotors
RCP167 rear pad shape
6POT front calipers on 370mm x 34mm rotors
Matching blue anodise front and rear
One order covering both axles

Specifications

Front caliper: Endless 6POT, six-piston forged two-piece
Front caliper weight: 3,280g
Front piston sizes: 27mm x 2, 32mm x 2, 38mm x 2
Front rotors: 370mm x 34mm, two-piece
Rear caliper: Endless S4r, four-piston forged
Rear caliper weight: 2,050g
Rear rotors: 332mm x 30mm, three-piece
Pad shapes: RCP052 front, RCP167 rear
Minimum wheel size: 17 inch front, per Endless

What’s Included

Endless 6POT front calipers (2)
Endless S4r rear calipers (2)
Front and rear Endless brake pad sets
Caliper mounting brackets, front and rear
Front rotors (2), 370mm x 34mm two-piece
Rear rotors (2), 332mm x 30mm three-piece
Brake lines (4)

Applications

Toyota GR Corolla: GZEA14H | 2022-present

Notes

Front and rear set. Same parts as the listing that leads with the 370mm front rotors
The three-piece rear rotors in this Brake Kit for Toyota GR Corolla retain the factory parking brake
Endless publishes the S4r width as 125.2mm, or 135.2mm at its widest point
Endless rates the S4r for rotors from 280mm to 332mm
Endless gives 17 inch as the minimum wheel for both calipers
Made to order in Japan; bleed with DOT4 or higher fluid

Frequently Asked Questions

What rear brakes come in the 6POT and S4r Brake Kit for Toyota GR Corolla? Two forged four-piston S4r calipers on 332mm x 30mm three-piece curving slit rotors with RCP167 pads. Endless pairs them with the 6POT front calipers in this set, and both are finished in the same blue anodise for a matched look front to rear.
Is the S4r a monobloc caliper? No. The S4r is a forged four-piston caliper rather than a monobloc, which is part of why it costs less than the Racing MONO rears Endless lists for the GR Corolla. For a car used on the road and at track days it gives the rear axle a real upgrade.
Does the parking brake still work on the S4r rear set for the GR Corolla? The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 332mm x 30mm three-piece rotors at the rear, so the GR Corolla keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.
Can I upgrade the front later? Yes. Endless also lists the Racing MONO6 TA front for the GR Corolla on the same 370mm rotor size. If the car moves toward heavier circuit use, the Endless monobloc front and rear sets with a MONO2 TA or MONO4r TA rear are the next step up.
What is included in the S4r rear set for the GR Corolla? Two 6POT front calipers, two S4r rear calipers, Endless pads for both axles, mounting brackets, two 370mm two-piece front rotors, two 332mm three-piece rear rotors and four brake lines. DOT4 or higher fluid is needed for the bleed of this Brake Kit for Toyota GR Corolla.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
