What does the 6POT Light Big Brake Kit for VBH change?

It replaces the factory 316mm x 28mm front rotors with 355mm x 32mm two-piece curving slit rotors and fits a six-piston forged Endless caliper. The larger, thicker rotor carries more heat, and the narrow 6POT Light body was designed to clear more wheels than the standard 6POT.

Does it fit the US-market WRX?

Endless lists this kit for the VBH WRX S4. It does not list it against other WRX models in the data we have, so ask us before ordering for any other car and we will confirm fitment with Endless rather than assume the two are the same.

Will my wheels clear it?

Endless gives 17 inch as the minimum for the 6POT Light, and the caliper is about 15mm narrower than the 6POT to help clearance. Spoke shape and offset still decide it, so send us your wheel details and we will check them against the Endless template.

Is there a matching rear upgrade?

Yes. Endless lists a rear inch-up kit for the VBH that keeps the factory electric parking brake caliper and adds a larger rotor, and it sells the front and rear together as a set in Japan. The rear kit is listed separately here.

What comes in the Endless 6POT Light kit?

Two 6POT Light calipers, RCP120 Endless pads, mounting brackets, two 355mm x 32mm two-piece curving slit rotors and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for VBH and is not supplied.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless 6POT Light Front Big Brake Kit for VBH Subaru WRX S4

Endless’s 6POT Light Front Big Brake Kit for VBH Subaru WRX S4 replaces the factory 316mm x 28mm front discs with 355mm x 32mm two-piece curving slit rotors and a six-piston forged caliper. The 6POT Light is the narrow-body EC671, about 15mm slimmer than the standard 6POT, which Endless designed to clear more wheels. It weighs 2,924g by Endless USA’s figure and runs a 16mm RCP120 pad on 27mm, 32mm and 38mm pistons. For a WRX S4 driven hard on the road, it is the least expensive way to a full Endless front axle.

Features

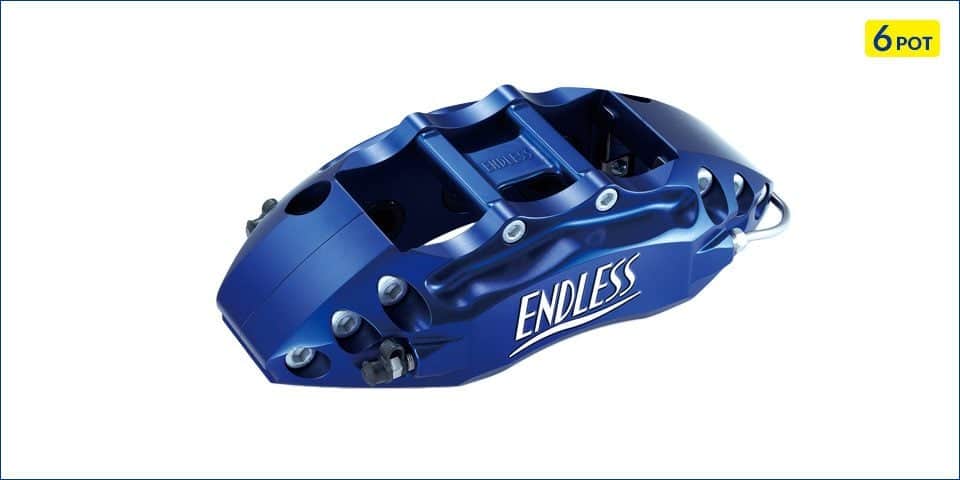

EC671 6POT Light forged two-piece six-piston caliper
About 15mm narrower than the 6POT for wheel clearance
355mm x 32mm two-piece curving slit rotors
Up from the factory 316mm x 28mm front rotor
16mm RCP120 pad shape
Blue anodise finish

Specifications

Caliper: Endless 6POT Light, six-piston forged two-piece, narrow body
Caliper weight: 2,924g (Endless USA; Endless Japan lists 2,970g)
Piston sizes: 27mm x 2, 32mm x 2, 38mm x 2
Finish: Blue anodise
Rotors: 355mm x 32mm, two-piece
Caliper rotor range: up to 370mm diameter
Pad shape: RCP120
Minimum wheel size: 17 inch, per Endless

What’s Included

Endless 6POT Light calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 355mm x 32mm two-piece
Brake lines (2)

Applications

Subaru WRX S4: VBH | 2021-present

Notes

Front axle only. The rear inch-up kit is listed separately
Endless lists this Big Brake Kit for VBH for the WRX S4; ask us before ordering for any other WRX
Endless USA lists the caliper at 2,924g and Endless Japan at 2,970g
A 17 inch wheel is the Endless minimum for the 6POT Light; check spoke clearance against the template
Backing plate trimming is usually required, and DOT4 or higher fluid is specified
Made to order in Japan; lead time is confirmed after ordering

Frequently Asked Questions

What does the 6POT Light Big Brake Kit for VBH change? It replaces the factory 316mm x 28mm front rotors with 355mm x 32mm two-piece curving slit rotors and fits a six-piston forged Endless caliper. The larger, thicker rotor carries more heat, and the narrow 6POT Light body was designed to clear more wheels than the standard 6POT.
Does it fit the US-market WRX? Endless lists this kit for the VBH WRX S4. It does not list it against other WRX models in the data we have, so ask us before ordering for any other car and we will confirm fitment with Endless rather than assume the two are the same.
Will my wheels clear it? Endless gives 17 inch as the minimum for the 6POT Light, and the caliper is about 15mm narrower than the 6POT to help clearance. Spoke shape and offset still decide it, so send us your wheel details and we will check them against the Endless template.
Is there a matching rear upgrade? Yes. Endless lists a rear inch-up kit for the VBH that keeps the factory electric parking brake caliper and adds a larger rotor, and it sells the front and rear together as a set in Japan. The rear kit is listed separately here.
What comes in the Endless 6POT Light kit? Two 6POT Light calipers, RCP120 Endless pads, mounting brackets, two 355mm x 32mm two-piece curving slit rotors and two brake lines. DOT4 or higher fluid is needed for the bleed of this Big Brake Kit for VBH and is not supplied.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
