Endless 4POT Front Performance Brake System w/ 1PC Rotors for EK4 Honda Civic SiR

Endless 4POT Front Performance Brake System w/ 1PC Rotors for EK4 Honda Civic SiR

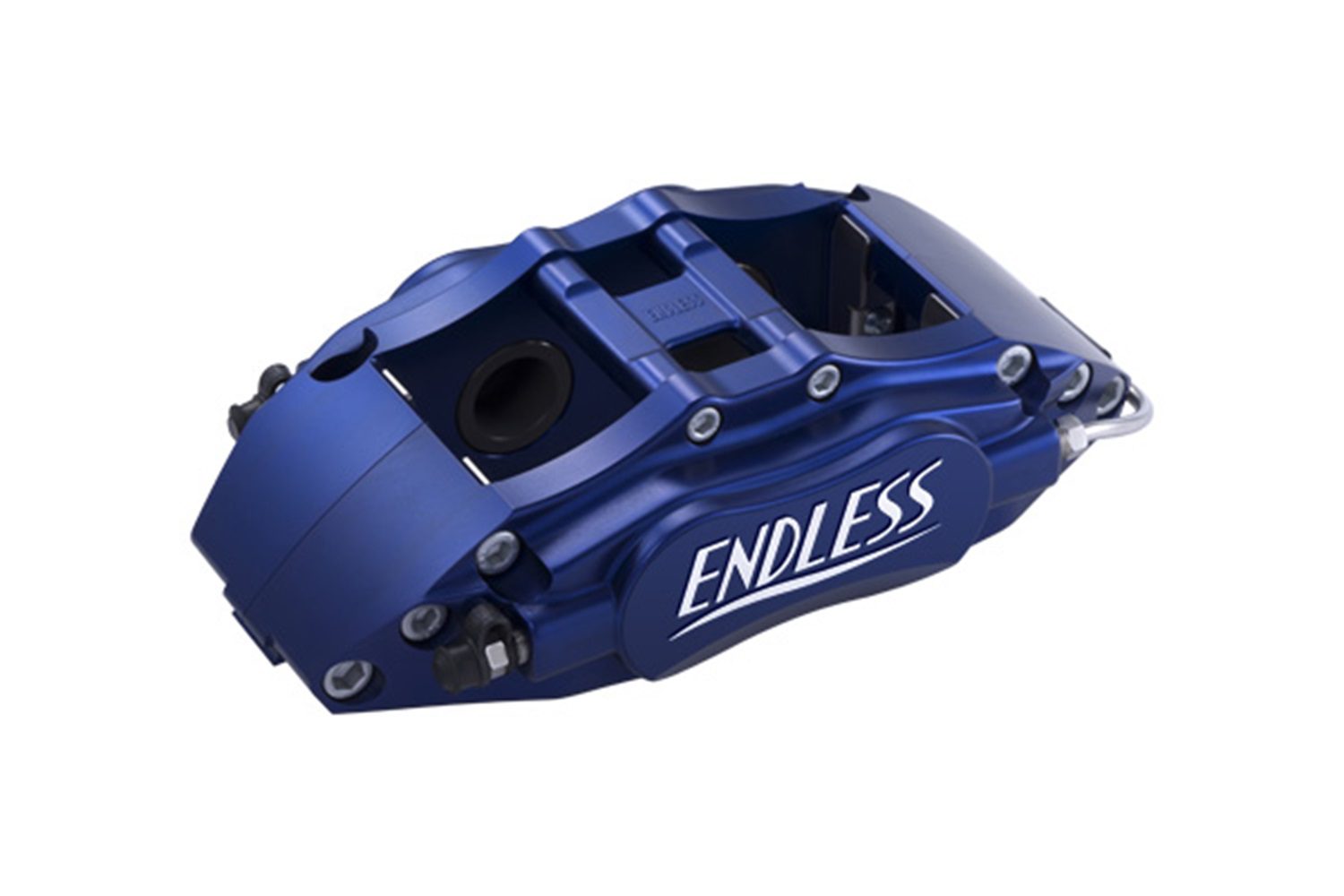

The Endless 4POT Front Performance Brake System for Honda Civic SiR is the ultimate brake upgrade for your vehicle. This system provides superior stopping power and control for your vehicle, giving you the confidence you need to take on any track or road. The 4POT calipers provide greater heat dissipation and increased stiffness for a more responsive feel. The high friction Endless brake pads are designed for maximum performance, providing greater stopping power and improved modulation. The kit also includes stainless steel brake lines for improved performance and durability. With this system, you can be sure to have the ultimate in braking performance and control. A four–pot caliper kit is an economical and ideal solution for those who wish to upgrade from the standard combination of calipers and pads typically found on smaller, lighter cars. This kit is perfect for those seeking an improved performance from their vehicle without breaking the bank. The Endless 4POT calipers exhibit remarkable control and performance when braking due to their lightweight and highly rigid forged aluminum construction, identical to that of other Endless high–end calipers.

Endless only utilizes the most exceptional materials and designs in the production of their racing, rally, and street calipers, to ensure the most exceptional performance. These calipers are capable of withstanding the most demanding of conditions, while remaining firm and accurate. For maximum performance, the calipers should be paired with Endless‘ RF650 Racing Super Fluid, allowing for the precise and dependable application and release of the pads.

Blue Anodized Finish

• When raw aluminum is exposed to the atmosphere, it develops a protective coating on its surface, which is a process known as oxidation. This is similar to rust, but anodizing takes it to a higher level of protection by creating an even stronger and impervious coat of aluminum oxide. Anodizing creates a coating that is highly resistant to abrasion, which makes it an ideal option for use on the racetrack.

“E-Slit” Double Shaving Effect

• The impressive design of the E–Slit Rotor comes from combining a long slit for creating curves and an “E“ slit on the top. The long and “E“ slits provide dual shading, keeping the pad in the best condition. The long slit gives a more subtle pad shape while the “E“ slit gives extra force to the brakes, thus improving their effectiveness. If you notice that the long slit on the rotor side has disappeared and the letter “E“ is no longer visible, it is time to replace the rotor.
• As the brake rotor ages, it can become susceptible to rust and corrosion, leading to damage. To keep your brakes in optimal condition, it is recommended that the rotor be changed at least every two years.

E-Slit Rotors

• The E–Slit rotor is designed with a curved slit along with four smaller E–Slits, providing a smoother shave. The longer slit and increased friction from the E–Slits keep the brake pad in superior condition. This rotor is made from a unique carbon blend that is only available from Endless, which ensures balanced mu–levels, avoidance of heat cracks, and optimized use of the brake pad‘s potential. The E–Slit design has been optimized to permit a more efficient shave.

Cost Effective, and More On So Many Levels

• Endless steel discs provide racers and drivers with greater performance potential compared to other options, making them a cost–effective and popular choice. The versatility of Endless steel discs make them a favorite among racers and drivers alike.

Special Heat Treatment Process

• A pre–treatment was done to the rotor prior to it being used for extended periods of heavy use to increase its durability. This is because the heat generated from the build–up of use would cause the surface to expand and contract, resulting in the formation of small cracks (heat cracks). As a result of the pre–treatment, the life expectancy of the rotor has been increased and it can now be used with less concern for a longer period of time.

Blue Rotor Hat Finish

• The bell part has been painted blue in order to lower the chance of corrosion and give it a pleasing visual effect.

About Bedding

• In order to access the maximum potential of circuit–specific pads that are designed to perform in high temperatures, a preheating process called ‘bedding‘ must be employed prior to hard–driving. This will help to ensure that the pads are not detrimentally impacted by extreme temperatures.
• Competitions at the highest level of motorsports, including SUPER GT, WRC, and some European events, all necessitate the use of bedding.
• Before using semi–metallic brake pads, it is necessary to carry out an appropriate bedding–in process to make sure the brakes work optimally when hot and to prolong the life of both the brake pads and rotors.
• How to Bed:
  • When running a new product on a circuit, make sure to warm up the rotor to a temperature between 400–500° C, avoiding any heavy braking. Once the rotor has been sufficiently heated, you may add atari, and let the rotor cool until it reaches a temperature of 100° C or lower, thus ending the process.

Specifications

• Weight: 2143g
• Size: 141mm x 73.2mm x 250mm
• Compatible Rotor Diameter: 270mm thru 300mm
• Standard Color of kit: Blue anodize
• Standard Compound for Kit: SSM / Type R / MX72 / MX72-Plus
• Compatible Wheel Size: 15″

Rotor Specifications

• Material: Steel with special carbon
• Slit Shape: E-slit
• 1-piece design
• Special heat treatment

Kit Contents

• Endless facing calipers (2)
• Brake pad set
• Caliper mounting bracket (2)
• Brake rotors (282 mm x 23mm 1PC) (2)
• Brake lines (2)

Applications

• Honda Civic SiR: EK4 (1995-2000)

Notes

• Bedding in the brake pads should preferably be done in dry, fine weather in order to achieve the optimal performance of the pads. If it is raining, it is unlikely that the brake pads will reach their intended performance level.
• The type of wheels that can be used together depend on the brand and size of the wheels
• Some four-piston brake kits come with pre-installed factory brake rotors
