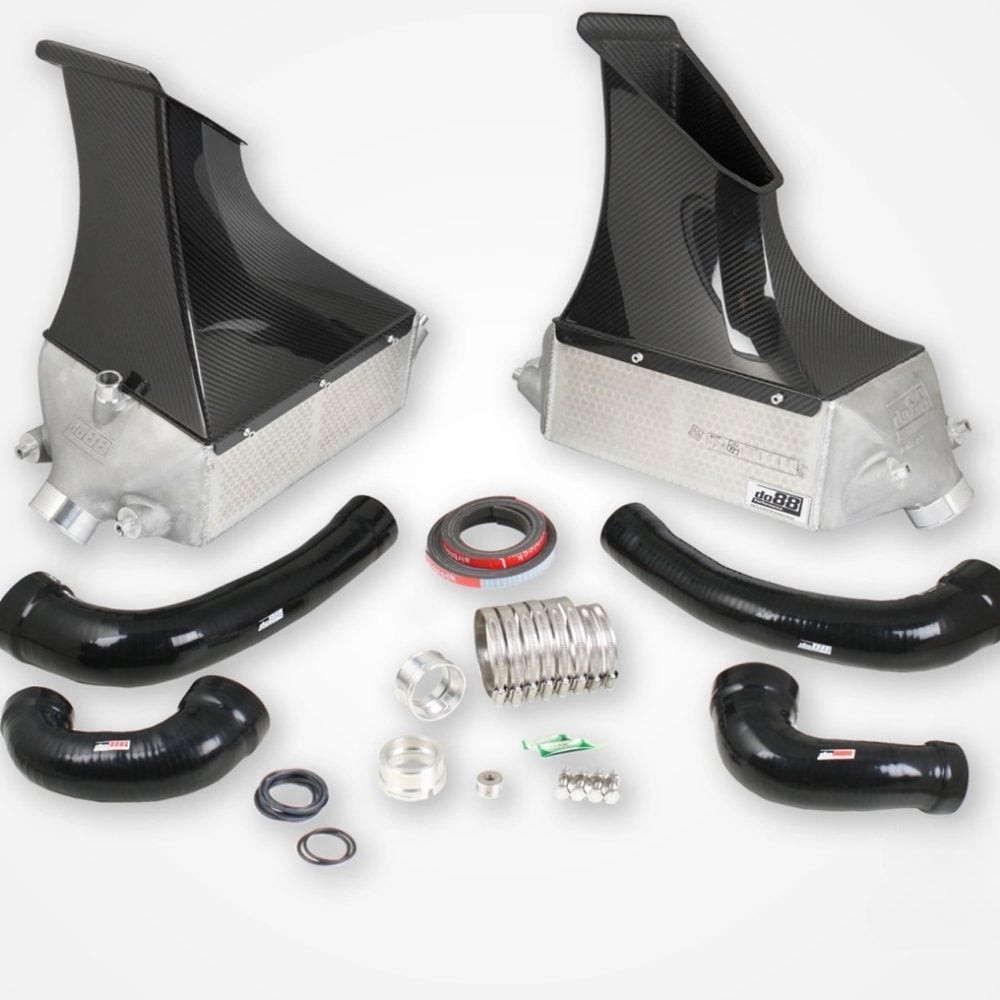

do88 Performance MERA Intercooler kit for 991 Porsche 911 Turbo and Turbo S [ICM-270-do88/ICM-270-OEM]

do88 Performance MERA Intercooler kit for 991 Porsche 911 Turbo and Turbo S [ICM-270-do88/ICM-270-OEM]

The do88 Performance Intercooler Kit MERA for the 991.2 Porsche 911 Turbo and Turbo S exemplifies advanced intercooler technology, engineered for superior cooling and performance. Initially launched in 2018 with a lightweight UK-made tube-and-fin core, the kit has proven its effectiveness in builds exceeding 1000 horsepower. In 2022, do88 enhanced this already outstanding design by upgrading to motorsport-grade Bar & Plate cores from Garrett, achieving even greater performance. The updated version offers a 13% increase in airflow over its predecessor and features a lighter air duct made from genuine prepreg carbon. The kit includes hoses compatible with either the OEM or do88 (63mm) y-pipe, with differences in hose configuration depending on the setup. Despite adding just 3.1kg per intercooler, the performance improvements make this a vital upgrade for high-performance 991.2 models.

Intercooler

• The core in the updated do88 Performance Intercooler Kit MERA is new, but the cast end tanks and accessories remain unchanged. The end tanks are designed to precisely distribute airflow across the entire core, optimizing both pressure drop and cooling efficiency. To accommodate the appropriately thick core, a new upper ambient air guide was developed using a 3D-scanned environment, ensuring a perfect fit with the vehicle-integrated air guides and the intercooler. To eliminate bottlenecks, the kit features 70mm intercooler connections, allowing unrestricted airflow. New 3D-designed, CFD-tested hoses are included, optimized for maximum airflow. The turbo outlet hoses are made from high-temperature material, rated for continuous use at 464°F.
• To maximize the use of ambient air for heat transfer, the carbon ducts include proper seals that force all airflow through the core, preventing leakage around it. Despite being significantly larger, the all-aluminum intercoolers result in only a modest weight increase. Each intercooler weighs 18.74lbs compared to the OEM intercooler’s 6.83lbs. While this increase may seem significant, it is well justified by the substantial performance gains the intercoolers deliver.

Testing

• The do88 intercoolers deliver significantly improved performance by reducing intake temperatures compared to OEM 991 units. Tested with a Stage 1-tuned Porsche 991 during five consecutive full-throttle runs (30-155mph) without cooldowns, the results showed a peak inlet temperature reduction of 30.6°F. The tests, conducted in Sport Plus mode with AC off, involved initial runs with OEM intercoolers, a quick swap to do88 intercoolers, and identical follow-up runs after a brief shakedown. Extensive development, including refined end tank designs and optimized core selection, ensures superior heat transfer and airflow. Verified using the Superflow SF-1020 Probench as a complete system with hoses, the do88 intercoolers offer unmatched cooling efficiency and consistent, reliable performance.

Features

• Colder inlet air temperatures
• Addition air, reduced backpressure and increased airflow
• 19% higher CFM
• 3D freeform designed cast end tanks
• Custom carbon ambient air guides
• High quality silicone hoses and accessories
• Includes hoses adapted for OEM or do88 (63mm) y-pipe

Applications

• Porsche 911 Turbo: 991.1, 991.2 (2013-2019)
• Porsche 911 Turbo S: 991.1, 991.2 (2013-2019)

Notes

• Please note that all products are built to order in the EU and shipped via international air express, however lead times are generally pretty fast
• Installation Instructions
• Price includes all import tariffs

About d088 Performance

do88, headquartered in Nykvarn near Stockholm and established in 2007, began as a distributor of universal silicone hoses and has since grown into one of the northern hemisphere’s largest suppliers in this category, shipping products globally. Initially focusing on Swedish brands like SAAB and Volvo, do88 expanded to develop model-specific parts that extend beyond hoses, including intercoolers, oil coolers, radiators, intake systems, and more for various car brands and models. All products are developed in-house, adhering to do88’s high standards for performance and quality. Known for a commitment to quality, proven performance, and strong customer support, do88 has earned a respected reputation in the auto parts industry.
