What does the Dinan X5 M Axle-Back Exhaust fit?

The Dinan X5 M Axle-Back Exhaust fits the F95 BMW X5 M and F96 X6 M (2020-2026), including Competition models, with the S63 4.4L twin-turbo V8. It bolts to the factory mounting points, replacing the rear section of the exhaust for a louder, fuller note.

Is this a valved exhaust?

Yes. The Dinan X5 M Axle-Back Exhaust retains full factory exhaust valve control, so the vehicle stays civil when cruising and opens to a louder, fuller tone under throttle. No separate valve controller is required to run the system.

What finish are the tips?

This version uses black ceramic clamp-on tips. The system is 100% T304 stainless steel, TIG-welded and brush-finished for a clean, corrosion-resistant appearance at the rear of the car.

An axle-back exhaust is chosen mainly for sound and styling. The Dinan X5 M Axle-Back Exhaust reduces backpressure, which can free up a small amount of power, but the primary benefit is the improved note and appearance.

Is installation difficult?

No. The Dinan X5 M Axle-Back Exhaust is a bolt-on installation using the factory mounting points, with no cutting or welding required. Mounting hardware is included to complete the swap.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

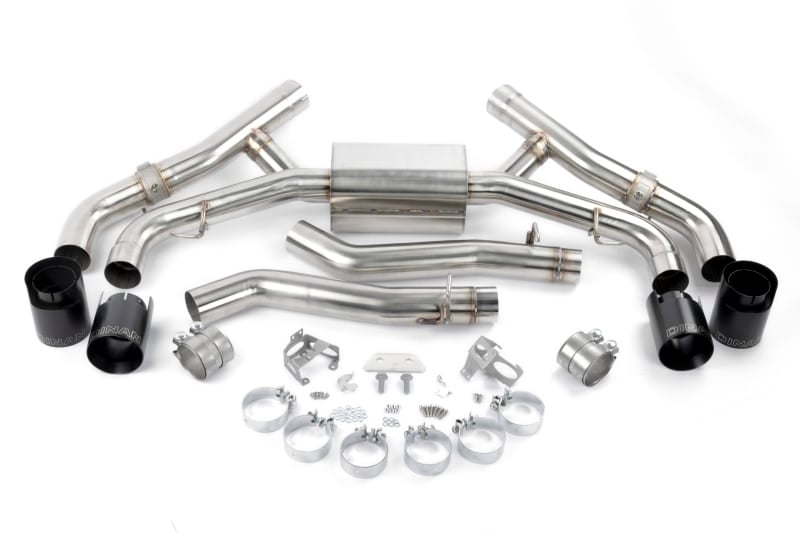

Dinan Valved Axle-Back Exhaust with Black Tips for F95 / F96 BMW X5 M and X6 M

The Dinan X5 M Axle-Back Exhaust is a T304 stainless steel valved axle-back exhaust for the F95 BMW X5 M and F96 X6 M and their S63 4.4L twin-turbo V8. It retains full factory exhaust valve control and reduces backpressure for a louder, fuller note than the muted factory setup, capped with black ceramic clamp-on tips. TIG-welded and brush-finished throughout. Finished with black ceramic tips.

Features

Stock exhaust valve actuators reused, and operation of exhaust valve is unchanged so exhaust tone can be adjusted via the M-drive settings
Computer controlled exhaust valves are retained and limit noise during low-speed driving and open fully during high-load conditions
Four, diffuser filling, 4.5″ (114mm) double-walled, black ceramic coated clamp-on tips with laser engraved Dinan logo
Twin secondary exhaust valves are a whopping 76mm diameter, making them 30% less restrictive than the OE valves
Drone abatement technologies used to reduce cabin resonance
Larger diameter piping for increased flow (83mm vs. 80mm)
Factory-like fitment with included mounting hardware
Maximum gains of +6hp and +5ft/lbs of torque
100% 304 Stainless Steel construction
Enjoyably louder, sportier sound

Specifications

Material: T304 stainless steel
Construction: TIG-welded, brush-finished
Design: valved axle-back
Exhaust tips: black ceramic, clamp-on
Valve control: retains factory exhaust valve

Applications

BMW X5 M: F95 | 2020-2026 | 4.4L Twin-Turbo V8 S63
BMW X6 M: F96 | 2020-2026 | 4.4L Twin-Turbo V8 S63

Notes

A polished-tip version is available as Dinan part number D660-0090

Frequently Asked Questions

What does the Dinan X5 M Axle-Back Exhaust fit? The Dinan X5 M Axle-Back Exhaust fits the F95 BMW X5 M and F96 X6 M (2020-2026), including Competition models, with the S63 4.4L twin-turbo V8. It bolts to the factory mounting points, replacing the rear section of the exhaust for a louder, fuller note.
Is this a valved exhaust? Yes. The Dinan X5 M Axle-Back Exhaust retains full factory exhaust valve control, so the vehicle stays civil when cruising and opens to a louder, fuller tone under throttle. No separate valve controller is required to run the system.
What finish are the tips? This version uses black ceramic clamp-on tips. The system is 100% T304 stainless steel, TIG-welded and brush-finished for a clean, corrosion-resistant appearance at the rear of the car.
Does it add power? An axle-back exhaust is chosen mainly for sound and styling. The Dinan X5 M Axle-Back Exhaust reduces backpressure, which can free up a small amount of power, but the primary benefit is the improved note and appearance.
Is installation difficult? No. The Dinan X5 M Axle-Back Exhaust is a bolt-on installation using the factory mounting points, with no cutting or welding required. Mounting hardware is included to complete the swap.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
