Does the Dinan X1 axle-back exhaust fit the X2 and MINI JCW models?

Yes. The Dinan X1 axle-back exhaust fits the F48 BMW X1 and F39 X2 xDrive28i (2016-2023) and the F54 and F60 MINI Clubman and Countryman JCW (2016-2024). It is not compatible with sDrive models; the sDrive version is Dinan part number D660-0088.

What finish are the tips?

This version uses dual 4-inch (102mm) double-walled, black ceramic-coated clamp-on tips with the laser-engraved Dinan logo. A polished stainless tip version is offered as D660-0089 if you prefer a bright finish.

Is this a valved exhaust?

Yes. The Dinan X1 axle-back retains full factory exhaust valve control, so the vehicle stays civil when cruising and opens to a louder, fuller tone under throttle. No separate controller is required to run the system.

How much power does it add?

The system delivers a maximum gain of +5hp and +4ft/lbs of torque at 6000 RPM. Axle-back exhausts are chosen mainly for sound and styling; the gain comes from the freer-flowing 70mm piping and reduced backpressure at the top of the band.

Is installation difficult?

No. The Dinan X1 axle-back exhaust is a bolt-on job of about 3 hours using the factory mounting points, with no cutting or welding required. All mounting hardware, clamps, and hangers are included.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

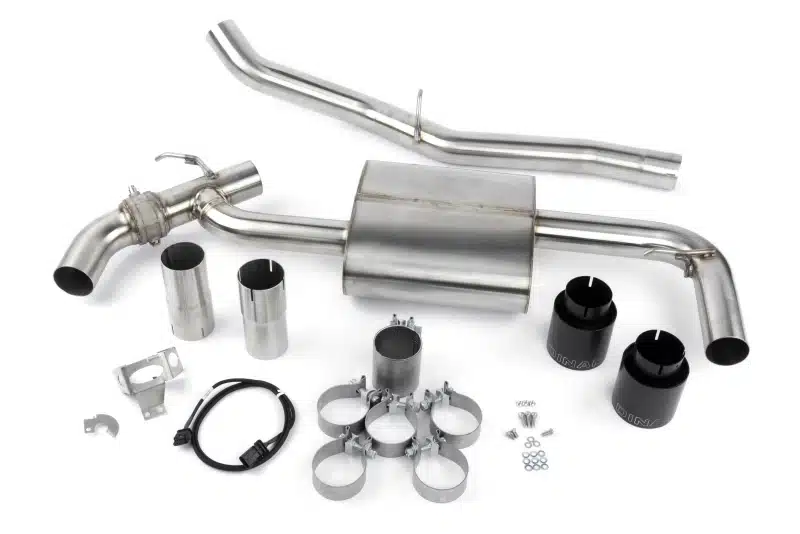

Dinan Valved Axle-Back Exhaust with Black Tips for F48 / F39 BMW X1 / X2 xDrive28i and F54 / F60 MINI Clubman / Countryman JCW

The Dinan X1 Axle-Back Exhaust is a T304 stainless steel valved system engineered for the F48 BMW X1 and F39 X2 xDrive28i, and it shares fitment with the F54 and F60 MINI Clubman and Countryman JCW. It runs 70mm piping free of hydroforming into a streamlined absorption muffler that cuts backpressure and tames low-RPM drone for a louder, fuller, deeper note. The whole system is TIG-welded and brush-finished, then capped with dual 4-inch (102mm) double-walled clamp-on tips in a black ceramic finish with the laser-engraved Dinan logo. Factory valve control is retained, and the system adds up to +5hp and +4ft/lbs at the top of the band. Finished with black ceramic 4-inch tips.

Features

Dual 4″ (102mm) double-walled, black ceramic coated clamp-on tips with laser engraved Dinan logo
Bolt-on installation; Includes mounting hardware
Maximum gain of +5hp and +4ft/lbs of torque
100% 304 Stainless Steel Construction
Enjoyably louder, sportier sound
Retains factory valve control

Specifications

Material: T304 stainless steel
Construction: TIG-welded, brush-finished
Pipe diameter: 70mm (2.75 in)
Exhaust tips: dual 4 in (102mm) double-walled, black ceramic, clamp-on, laser-engraved
Valve control: retains factory exhaust valve
Max power gain: +5hp @ 6000 RPM
Max torque gain: +4ft/lbs @ 6000 RPM
Weight: 42 lb

Applications

BMW X1 xDrive28i: F48 | 2016-2023 | 2.0L Turbo I4 B48
BMW X2 xDrive28i: F39 | 2016-2023 | 2.0L Turbo I4 B48
MINI Clubman JCW: F54 | 2016-2024 | 2.0L Turbo I4 B48
MINI Countryman JCW: F60 | 2016-2024 | 2.0L Turbo I4 B48

Notes

Not compatible with sDrive models; the sDrive version is Dinan part number D660-0088
A polished-tip version is available as Dinan part number D660-0089

Frequently Asked Questions

Does the Dinan X1 axle-back exhaust fit the X2 and MINI JCW models? Yes. The Dinan X1 axle-back exhaust fits the F48 BMW X1 and F39 X2 xDrive28i (2016-2023) and the F54 and F60 MINI Clubman and Countryman JCW (2016-2024). It is not compatible with sDrive models; the sDrive version is Dinan part number D660-0088.
What finish are the tips? This version uses dual 4-inch (102mm) double-walled, black ceramic-coated clamp-on tips with the laser-engraved Dinan logo. A polished stainless tip version is offered as D660-0089 if you prefer a bright finish.
Is this a valved exhaust? Yes. The Dinan X1 axle-back retains full factory exhaust valve control, so the vehicle stays civil when cruising and opens to a louder, fuller tone under throttle. No separate controller is required to run the system.
How much power does it add? The system delivers a maximum gain of +5hp and +4ft/lbs of torque at 6000 RPM. Axle-back exhausts are chosen mainly for sound and styling; the gain comes from the freer-flowing 70mm piping and reduced backpressure at the top of the band.
Is installation difficult? No. The Dinan X1 axle-back exhaust is a bolt-on job of about 3 hours using the factory mounting points, with no cutting or welding required. All mounting hardware, clamps, and hangers are included.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
