Does the Dinan M5 cold air intake fit the M5 Competition?

Yes. The Dinan M5 cold air intake fits the F90 BMW M5 (2018-2023), including the M5 Competition, since both use the same S63 4.4L twin-turbo V8 and intake architecture. It bolts to the factory mounting points for a direct fit.

Is it a sealed intake?

Yes. The Dinan M5 cold air intake uses sealed airboxes that isolate the high-flow filters from hot underhood air, keeping intake temperatures down. Cooler, denser air helps both turbochargers respond more consistently under load.

The intake tubes are carbon fiber for a smooth, low-restriction path and a clean underhood look. The filters are high-flow, washable, and reusable, so they can be cleaned rather than replaced over the life of the car.

No tune is required to run the Dinan M5 cold air intake, and it improves airflow on its own. The intake pairs well with engine tuning, which lets the S63 take fuller advantage of the cooler, freer-flowing air for stronger, more repeatable gains.

Is installation difficult?

No. The intake is a bolt-on installation using the factory mounting points with no cutting required. The kit includes the carbon fiber tubes, sealed airboxes, and high-flow filters needed to complete the swap on the F90 M5.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

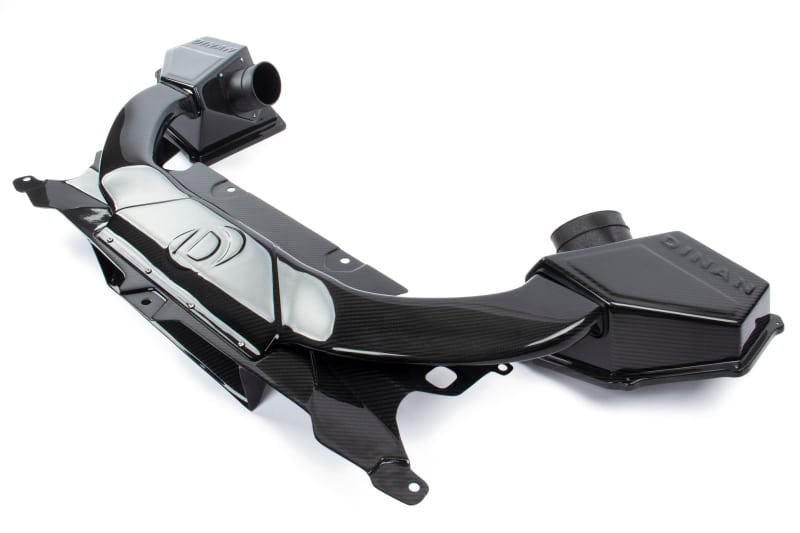

Dinan Carbon Fiber Cold Air Intake for F90 BMW M5

The Dinan M5 Cold Air Intake is a carbon fiber induction system for the F90 BMW M5 and its S63 twin-turbo V8. Dinan swaps the restrictive factory setup for larger sealed airboxes, larger high-flow filters, and optimized carbon fiber tubes that cut restriction and shield the filters from underhood heat, feeding cooler, denser air to both turbochargers. The result is sharper throttle and turbo response and a more purposeful intake note, with a clean carbon look under the hood. Finished in exposed carbon fiber.

Features

Larger volume air boxes (31% larger than stock) that completely seals allowing an increased volume of air to be utilized.
Center wishbone inlet/scoop incorporated as an additional secondary air source for maximum airflow.
35% increase in filter area (stock: 56.5in², Dinan: 80in² per side) for optimum flow.
More Flow: 11% greater than stock (Stock: 575 CFM, Dinan: 637 CFM @ 28″ H2O per bank).
Increased turbo efficiency, reliability, and head room.
Improved throttle response.
Bolt-on installation.

Specifications

Material: carbon fiber intake tubes
Engine: 4.4L Twin-Turbo V8 S63
Airboxes: dual, sealed, larger volume
Filters: dual high-flow, washable and reusable
Intake style: sealed

Applications

BMW M5: F90 | 2018-2023 | 4.4L Twin-Turbo V8 S63

Frequently Asked Questions

Does the Dinan M5 cold air intake fit the M5 Competition? Yes. The Dinan M5 cold air intake fits the F90 BMW M5 (2018-2023), including the M5 Competition, since both use the same S63 4.4L twin-turbo V8 and intake architecture. It bolts to the factory mounting points for a direct fit.
Is it a sealed intake? Yes. The Dinan M5 cold air intake uses sealed airboxes that isolate the high-flow filters from hot underhood air, keeping intake temperatures down. Cooler, denser air helps both turbochargers respond more consistently under load.
What is it made of? The intake tubes are carbon fiber for a smooth, low-restriction path and a clean underhood look. The filters are high-flow, washable, and reusable, so they can be cleaned rather than replaced over the life of the car.
Do I need a tune? No tune is required to run the Dinan M5 cold air intake, and it improves airflow on its own. The intake pairs well with engine tuning, which lets the S63 take fuller advantage of the cooler, freer-flowing air for stronger, more repeatable gains.
Is installation difficult? No. The intake is a bolt-on installation using the factory mounting points with no cutting required. The kit includes the carbon fiber tubes, sealed airboxes, and high-flow filters needed to complete the swap on the F90 M5.
