Does the Dinan M3 sway bar set fit the M2 and M4?

Yes. The Dinan M3 sway bar set fits the G80 BMW M3 and G82 / G83 M4 (2021-present) and the G87 M2 (2023-present), including xDrive variants. Each bar is tuned specifically for the G8X chassis rather than shared across unrelated platforms.

Are the bars adjustable?

Yes. The rear bar is two-hole adjustable, letting you fine-tune the front-to-rear balance and stiffness for street comfort or track use. The front bar is a fixed 28mm. Adjusting the rear changes how much the car rotates without needing to change the bars.

How much stiffer are they than stock?

The front bar grows from the 23.5mm stock bar to 28mm for about 18 percent more stiffness, and the rear grows from 21.9mm to 26mm for 35 to 48 percent more depending on the adjustment setting. The tubular construction adds this stiffness while keeping weight down.

Is it hard to install?

Installation is involved: the subframe must be dropped, so professional installation is highly recommended. Dinan lists roughly 10.3 hours of labor including a post-install alignment. Polyurethane bushings and grease are included in the set.

Are bushings included?

Yes. The set ships with polyurethane bushings and grease for both bars, so no separate bushing purchase is needed. Polyurethane holds the bars more precisely than rubber for sharper turn-in and more consistent roll control.

The Dinan M3 sway bar set is sold as a matched front and rear pair, with the 28mm front bar, the 26mm two-hole adjustable rear bar, polyurethane bushings, and grease included together.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

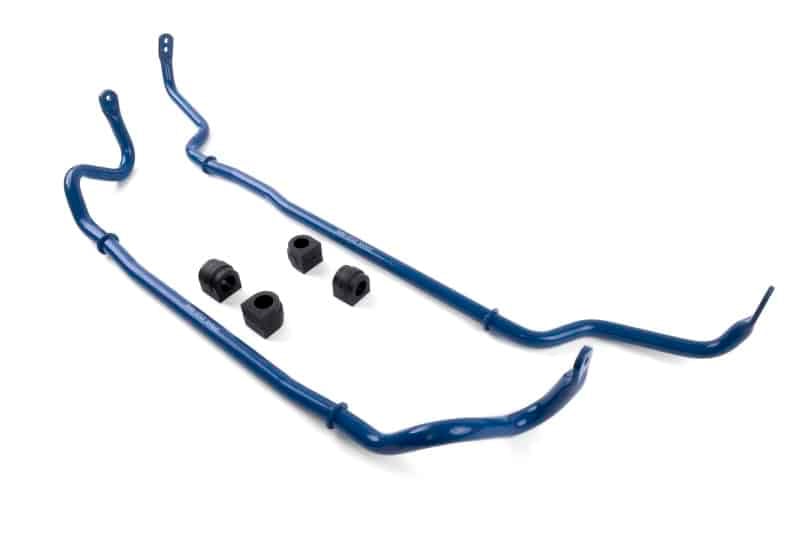

Dinan Adjustable Front and Rear Sway Bar Set 28mm / 26mm for G80 BMW M3, G82 / G83 M4, and G87 M2

The Dinan M3 Sway Bar set is a chassis-tuned front and rear anti-roll bar upgrade for the G80 BMW M3, G82 and G83 M4, and G87 M2. Where the factory bars are sized for comfort, Dinan tunes each bar specifically to the G8X chassis to cut body roll and keep the car closer to level through a corner while still allowing enough roll to load the tires for mechanical grip. The bars are formed from high-tensile alloy steel with a tubular, hollow construction that adds stiffness without the weight of a solid bar: the front measures 28mm versus the 23.5mm stock bar for 18 percent more stiffness, and the rear measures 26mm versus 21.9mm stock for 35 to 48 percent more, with two-hole rear adjustment to fine-tune balance. Polyurethane bushings and grease are included, and the Dinan M3 sway bar gives a more planted, confident feel that makes it a staple upgrade for back-road and track drivers. Front 28mm and rear 26mm bars with two-hole rear adjustment.

Features

Front bar 28mm (versus 23.5mm stock), 18% stiffer to control roll
Rear bar 26mm (versus 21.9mm stock), 35-48% stiffer
Two-hole adjustable rear bar to fine-tune handling balance and ride preference
High-tensile alloy steel with tubular, hollow construction for strength with less weight
Powder-coated finish for corrosion resistance
Includes polyurethane bushings and grease
Less body roll, more mechanical grip, and more stability at the limit

Specifications

Material: high-tensile alloy steel, tubular (hollow) construction
Finish: powder-coated
Front bar: 28mm (versus 23.5mm stock), 18% stiffer
Rear bar: 26mm (versus 21.9mm stock), 35-48% stiffer, two-hole adjustable
Bushings: polyurethane, included with grease
Drivetrain: RWD

Applications

BMW M2: G87 | 2023-present | 3.0L Twin-Turbo I6 S58
BMW M3: G80 | 2021-present | 3.0L Twin-Turbo I6 S58
BMW M4: G82 / G83 | 2021-present | 3.0L Twin-Turbo I6 S58

Notes

Sold as a front and rear set
Installation requires dropping the subframe; professional installation is recommended

Frequently Asked Questions

Does the Dinan M3 sway bar set fit the M2 and M4? Yes. The Dinan M3 sway bar set fits the G80 BMW M3 and G82 / G83 M4 (2021-present) and the G87 M2 (2023-present), including xDrive variants. Each bar is tuned specifically for the G8X chassis rather than shared across unrelated platforms.
Are the bars adjustable? Yes. The rear bar is two-hole adjustable, letting you fine-tune the front-to-rear balance and stiffness for street comfort or track use. The front bar is a fixed 28mm. Adjusting the rear changes how much the car rotates without needing to change the bars.
How much stiffer are they than stock? The front bar grows from the 23.5mm stock bar to 28mm for about 18 percent more stiffness, and the rear grows from 21.9mm to 26mm for 35 to 48 percent more depending on the adjustment setting. The tubular construction adds this stiffness while keeping weight down.
Is it hard to install? Installation is involved: the subframe must be dropped, so professional installation is highly recommended. Dinan lists roughly 10.3 hours of labor including a post-install alignment. Polyurethane bushings and grease are included in the set.
Are bushings included? Yes. The set ships with polyurethane bushings and grease for both bars, so no separate bushing purchase is needed. Polyurethane holds the bars more precisely than rubber for sharper turn-in and more consistent roll control.
How is it sold? The Dinan M3 sway bar set is sold as a matched front and rear pair, with the 28mm front bar, the 26mm two-hole adjustable rear bar, polyurethane bushings, and grease included together.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
