What does the Dinan F90 M5 turbo inlet pipes fit?

The Dinan F90 M5 turbo inlet pipes fit the F90 BMW M5 and F91, F92, and F93 M8 (2018-2025) with the S63 twin-turbo V8. They are a direct bolt-on replacement for the factory inlets.

The pipes are larger and smoother than the restrictive factory inlets, reducing the restriction feeding air into the S63's twin turbos. That supports better spool and airflow, with the biggest benefit on tuned cars.

No tune is required to install the turbo inlet pipes, and they reduce restriction on their own. The largest gains come on cars running higher boost with engine tuning.

Is installation difficult?

Installation is a bolt-on job replacing the factory inlets at their original location. Professional installation is recommended due to the work required to access the inlets.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

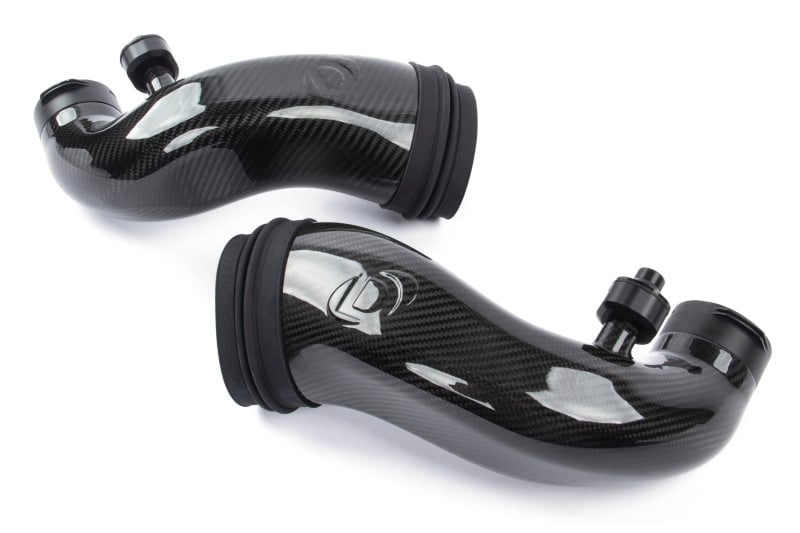

Dinan Turbo Inlet Pipes for F90 BMW M5 and F91 / F92 / F93 M8

The Dinan F90 M5 Turbo Inlet Pipes replace the restrictive factory inlets ahead of the turbochargers on the F90 BMW M5 and F91, F92, and F93 M8. Larger and smoother than stock, they reduce restriction into the S63’s twin turbos to support better spool and flow, especially on tuned cars. Larger, smoother turbo inlets.

Features

More Power: Max gains of 22 WHP and 18ft/lbs of torque @ 6500 RPM on an otherwise stock vehicle. Average gains of 11 WHP and 13 WTQ from 2000 RPM to redline.
Compatible with both the OEM and Dinan intake systems. Compatibility with other intakes not guaranteed.
More volume (~200% more than stock, 105 cubic inches vs. 35 cubic inches per side).
Larger internal diameter throughout (maximum cross-sectional area allowed).
Carbon fiber construction for heat insulation and visual appeal.
Quick and easy bolt-on installation.
Outflows the factory inlets.

Specifications

Type: turbo inlet pipes
Engine: 4.4L Twin-Turbo V8 S63
Benefit: reduced restriction ahead of the turbos
Fitment: direct bolt-on to factory location

Applications

BMW M5: F90 | 2018-2025 | 4.4L Twin-Turbo V8 S63
BMW M8: F91 / F92 / F93 | 2019-2025 | 4.4L Twin-Turbo V8 S63

Frequently Asked Questions

What does the Dinan F90 M5 turbo inlet pipes fit? The Dinan F90 M5 turbo inlet pipes fit the F90 BMW M5 and F91, F92, and F93 M8 (2018-2025) with the S63 twin-turbo V8. They are a direct bolt-on replacement for the factory inlets.
What do they do? The pipes are larger and smoother than the restrictive factory inlets, reducing the restriction feeding air into the S63’s twin turbos. That supports better spool and airflow, with the biggest benefit on tuned cars.
Do I need a tune? No tune is required to install the turbo inlet pipes, and they reduce restriction on their own. The largest gains come on cars running higher boost with engine tuning.
Is installation difficult? Installation is a bolt-on job replacing the factory inlets at their original location. Professional installation is recommended due to the work required to access the inlets.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
