What vehicles fit the Dinan E9X toe links?

The Dinan E9X toe links are built for the BMW E82 1M Coupe and the E90, E92, and E93 M3, which share the same S65-based rear subframe and suspension geometry. Confirm your chassis code before ordering, since the kit does not fit other 1 Series or 3 Series models.

What do the Dinan E9X toe links improve over the stock toe arm?

The factory toe arm uses a rubber bushing and a curved rod that flexes under hard acceleration and braking, changing rear toe angle mid-corner. Dinan replaces it with Teflon-coated rod ends and a straight billet aluminum bar, removing that flex for sharper, more predictable rear-end response at the limit.

Can the Dinan E9X toe links be adjusted?

Yes. A hex-nut center section lets you fine-tune rear toe settings, making it easier to dial in alignment for track days or larger wheel and tire setups without swapping parts.

Are the Dinan E9X toe links legal for street use?

No. Dinan designates this kit for racing use only. Installing it may affect your vehicle's warranty and, depending on your state or country, its street legality, so plan on track-only use.

Do I need an alignment after installing the Dinan E9X toe links?

Yes. Any rear toe link replacement changes suspension geometry, so a full alignment is required after installation to set the toe angle correctly and protect tire wear.

Who should install the Dinan E9X toe links?

Because these links affect rear suspension geometry and are intended for track use, installation should be handled by an experienced suspension technician or a Dinan-authorized shop with access to a proper alignment rack.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

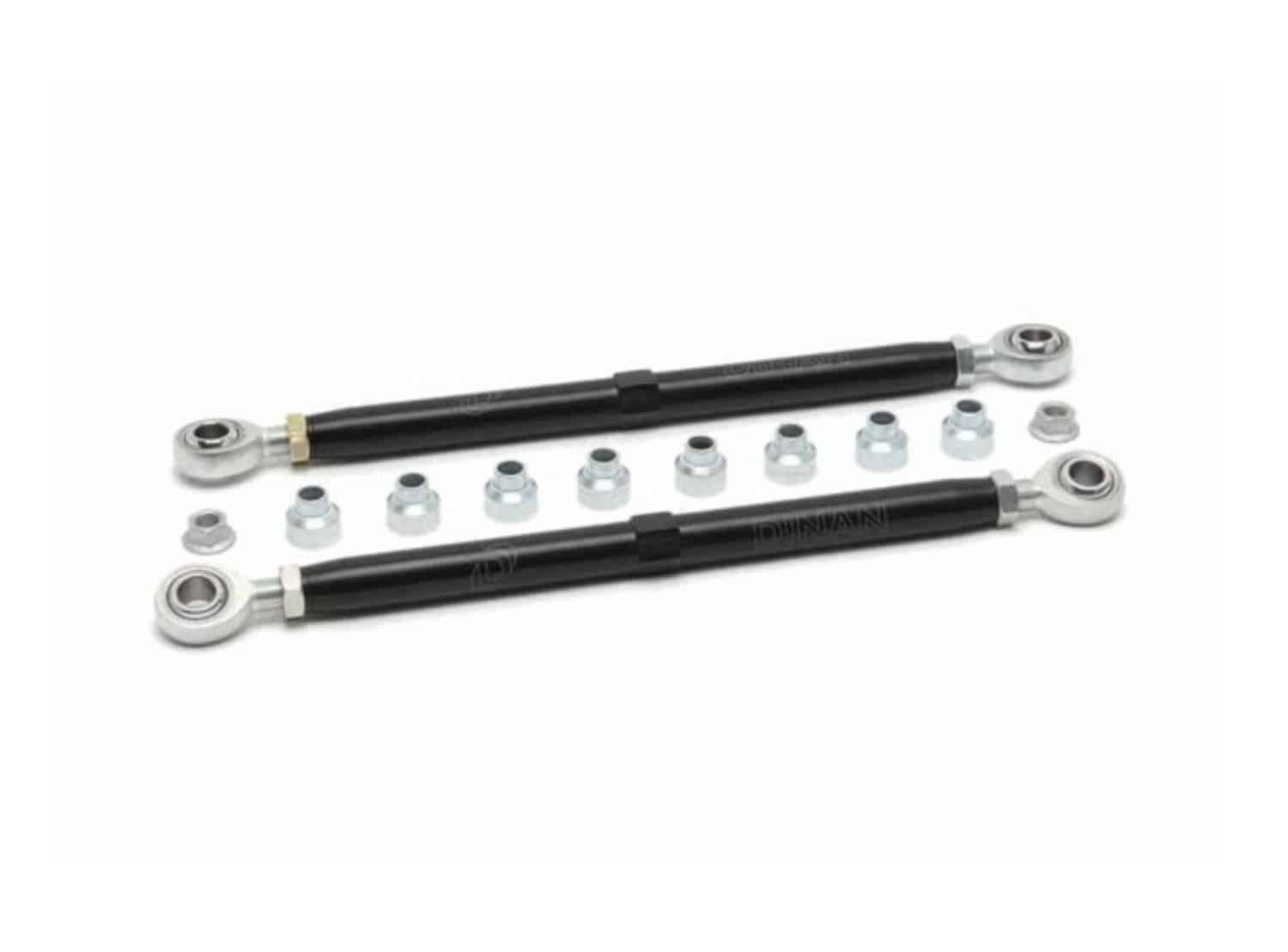

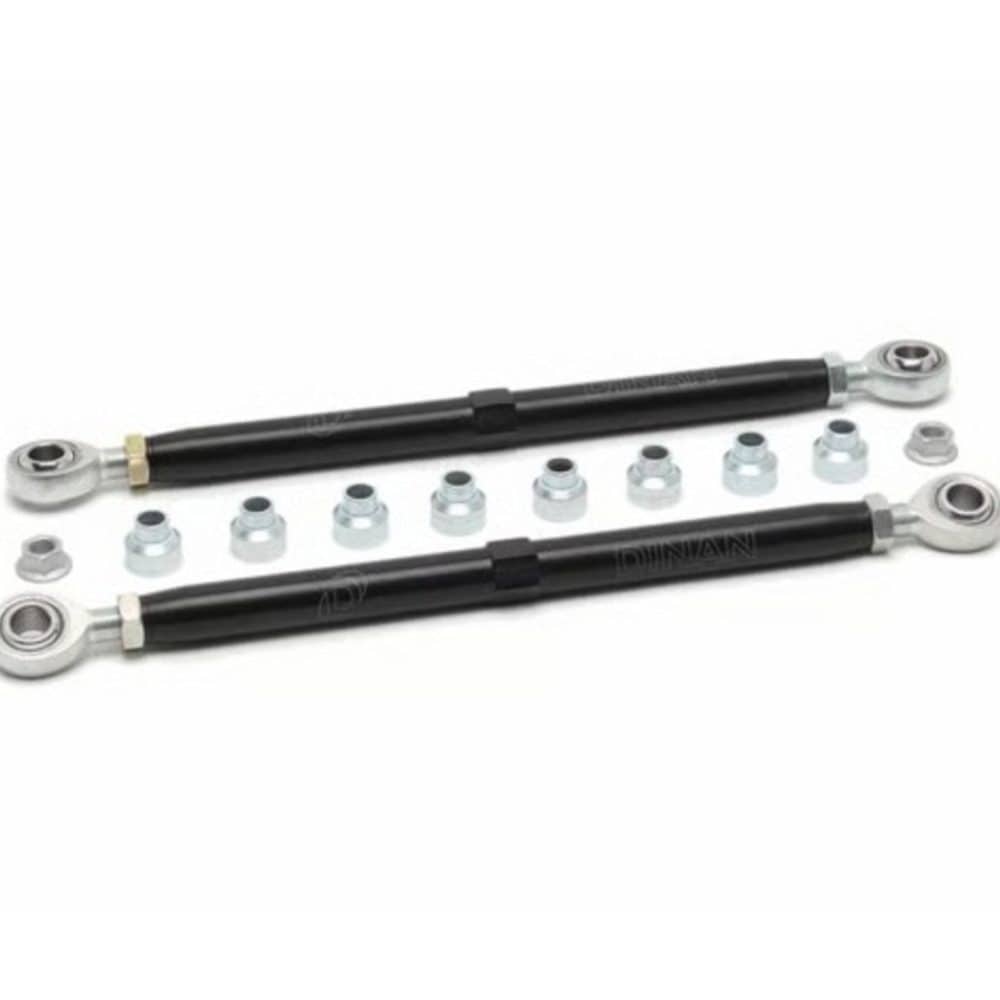

Dinan Racing Toe Links for BMW E82 1M and E90 / E92 / E93 M3

Dinan E9X toe links replace the factory rear toe arm on the BMW 1M and E9X M3, which uses a rubber bushing and a curved rod that flexes under hard acceleration and braking. That flex lets rear toe angle change mid-corner, hurting stability right when you need it most. Dinan’s kit eliminates the flex with Teflon-coated rod ends and a straight billet aluminum bar, giving the rear end sharper, more predictable response at the limit.

Features

Teflon-coated machined steel rod ends replace the OEM rubber bushings, removing deflection under load
Straight billet aluminum rod replaces the factory curved bar for added rigidity
Hex-nut center section allows fine adjustment of rear toe settings
Delivers noticeably improved predictability and stability at the limit compared to the stock link
Recommended for cars running larger wheel and tire setups, where suspension loads are higher
Estimated installation time is about 1.4 hours; each link weighs approximately 5lbs
Includes one pair of Dinan Racing Toe Links for the rear suspension

Applications

BMW 1M: E82 | 2011 | 3.0L Turbo I6 N54
BMW M3: E90, E92, E93 | 2008-2013 | 4.0L V8 S65

Notes

This product is designated for racing use only and is not intended for street use
Installing the Dinan Racing Toe Links may affect your vehicle’s warranty and, depending on your state or country, its street legality; check local regulations before installing
An alignment is required after installation to correctly set rear toe

Frequently Asked Questions

What vehicles fit the Dinan E9X toe links? The Dinan E9X toe links are built for the BMW E82 1M Coupe and the E90, E92, and E93 M3, which share the same S65-based rear subframe and suspension geometry. Confirm your chassis code before ordering, since the kit does not fit other 1 Series or 3 Series models.
What do the Dinan E9X toe links improve over the stock toe arm? The factory toe arm uses a rubber bushing and a curved rod that flexes under hard acceleration and braking, changing rear toe angle mid-corner. Dinan replaces it with Teflon-coated rod ends and a straight billet aluminum bar, removing that flex for sharper, more predictable rear-end response at the limit.
Can the Dinan E9X toe links be adjusted? Yes. A hex-nut center section lets you fine-tune rear toe settings, making it easier to dial in alignment for track days or larger wheel and tire setups without swapping parts.
Are the Dinan E9X toe links legal for street use? No. Dinan designates this kit for racing use only. Installing it may affect your vehicle’s warranty and, depending on your state or country, its street legality, so plan on track-only use.
Do I need an alignment after installing the Dinan E9X toe links? Yes. Any rear toe link replacement changes suspension geometry, so a full alignment is required after installation to set the toe angle correctly and protect tire wear.
Who should install the Dinan E9X toe links? Because these links affect rear suspension geometry and are intended for track use, installation should be handled by an experienced suspension technician or a Dinan-authorized shop with access to a proper alignment rack.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
