Which models does the Dinan 230i cold air intake fit?

The Dinan 230i cold air intake fits the B48-powered F22 BMW 230i, F30 330i, and F32 430i (2016-2021), including the F23 230i, F31 and F34 330i, and F33 and F36 430i body styles. A closed-box version, D760-0048, is available for the same cars.

What is the difference between semi-open and closed?

The Dinan 230i cold air intake uses a semi-open air box that lets more induction sound through for a sportier note. The closed version prioritizes a quieter, more OEM-like character; both use the same enlarged box and filter to increase flow and ease strain on the turbo.

No tune is required to install the Dinan 230i cold air intake, and it improves airflow on its own. The largest, most repeatable gains come when the intake is combined with engine tuning that lets the B48 use the added flow.

Is the filter reusable?

Yes. The intake uses a washable, reusable high-flow cotton gauze filter that can be cleaned and re-oiled rather than replaced. The high-flow element supports the intake's added airflow while protecting the B48.

Is installation difficult?

No. The Dinan 230i cold air intake is a bolt-on installation using factory mounting points, with no cutting required. The kit includes the carbon fiber tube, enlarged air box, and filter needed to complete the swap.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

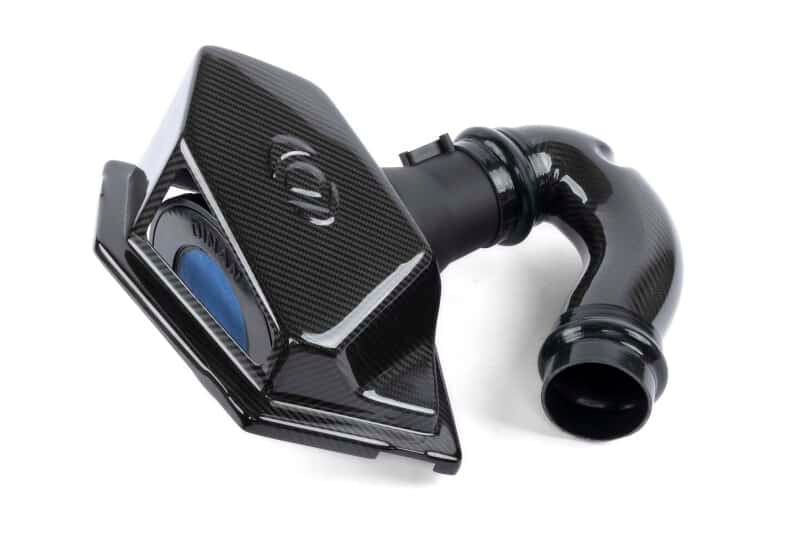

Dinan Semi-Open Carbon Fiber Cold Air Intake for F22 / F23 BMW 230i, F30 / F31 / F34 330i, and F32 / F33 / F36 430i

The Dinan 230i Cold Air Intake is a semi-open, carbon fiber induction system for the B48-powered F22 BMW 230i, F30 330i, and F32 430i, along with their F23, F31, F34, F33, and F36 body styles. It improves on the factory design with a larger air box and filter to increase flow, easing strain on the turbocharger, while the semi-open lid lets more induction sound through. The result is quicker throttle response and a sportier note. Finished in exposed carbon fiber.

Features

50 State Emissions Legal (partial application list): CARB EO D-176-56 (2019-21 F2x/F3x 230i/330i/430i Only)
More Power: + 6hp @ 5000 RPM & + 6ft/lbs @ 5000 RPM (+ 5 WHP & + 5 WTQ) without additional modifications
34% increase in filter area (stock: 76.3in², Dinan: 102.1in²) for optimum flow
Free flowing injection molded Air Mass Meter housing (ove 20% larger then stock)
Larger volume air box (30% larger than stock) for increased breathability
A pronounced sporty sound courtesy of a semi-open design
Optimized carbon fiber intake tube
Quick and easy installation
Improved throttle response

Specifications

Material: carbon fiber intake tube
Engine: 2.0L Turbo I4 B48
Air box: enlarged, semi-open
Filter: washable, reusable high-flow cotton gauze
Intake style: semi-open

Applications

BMW 230i: F22 / F23 | 2016-2021 | 2.0L Turbo I4 B48
BMW 330i: F30 / F31 / F34 | 2016-2021 | 2.0L Turbo I4 B48
BMW 430i: F32 / F33 / F36 | 2016-2021 | 2.0L Turbo I4 B48

Frequently Asked Questions

Which models does the Dinan 230i cold air intake fit? The Dinan 230i cold air intake fits the B48-powered F22 BMW 230i, F30 330i, and F32 430i (2016-2021), including the F23 230i, F31 and F34 330i, and F33 and F36 430i body styles. A closed-box version, D760-0048, is available for the same cars.
What is the difference between semi-open and closed? The Dinan 230i cold air intake uses a semi-open air box that lets more induction sound through for a sportier note. The closed version prioritizes a quieter, more OEM-like character; both use the same enlarged box and filter to increase flow and ease strain on the turbo.
Does it need a tune? No tune is required to install the Dinan 230i cold air intake, and it improves airflow on its own. The largest, most repeatable gains come when the intake is combined with engine tuning that lets the B48 use the added flow.
Is the filter reusable? Yes. The intake uses a washable, reusable high-flow cotton gauze filter that can be cleaned and re-oiled rather than replaced. The high-flow element supports the intake’s added airflow while protecting the B48.
Is installation difficult? No. The Dinan 230i cold air intake is a bolt-on installation using factory mounting points, with no cutting required. The kit includes the carbon fiber tube, enlarged air box, and filter needed to complete the swap.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
