Description

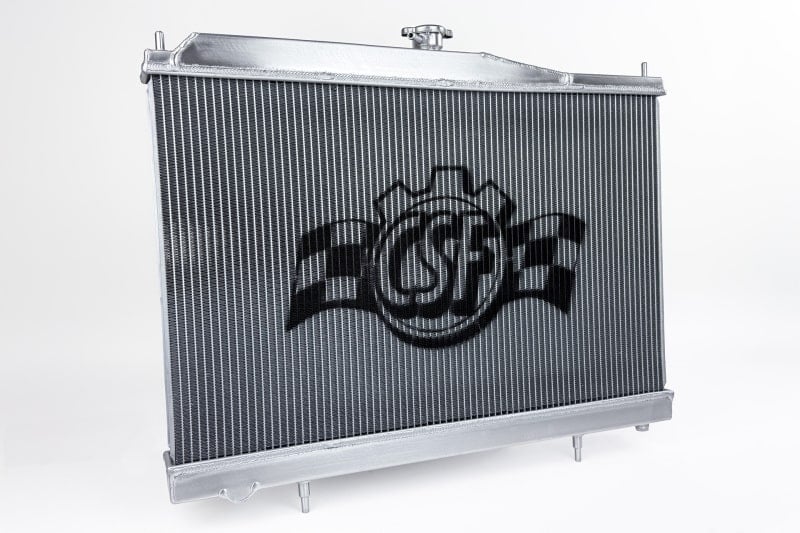

CSF High-Performance Silver Aluminum Radiator for R3x Nissan Skyline GTS & GT-R

The CSF R33 Skyline Radiator is a high-performance, all-aluminum replacement radiator built for the R33 Skyline GT-R and GTS, and the R34 Skyline GT-T, finished in brushed silver aluminum. The inline-six engines in these Skylines, from the basic RB20 up through the legendary RB26, are known for reliability, but the extra heat that comes with power upgrades pushes the factory radiator to its limit. CSF’s 2-row 42mm core adds fluid capacity and heat dissipation over the factory single-row design, and the exclusive B-Tube construction increases heat transfer by approximately 15% over regular oval welded tubes, while super-efficient multi-louvered fins maximize airflow through the core. This is a true drop-in fit radiator, installing in the OEM location with no modifications required.

Design and Engineering

The inline-six motors in the R33 and R34 Skylines are built to handle serious power, but more power means more heat. While the factory radiator manages heat adequately in stock form, a CSF R33 Skyline radiator gives the cooling system extra headroom, which matters most once the engine is making real power upgrades.

CSF B-Tube Technology

Unlike a standard oval “O” shaped tube, CSF’s B-Tube design uses a specially engineered tube shaped like a “B,” formed and brazed over the seam to seal. This shape increases the heat transfer surface area by approximately 15% over regular tubes, giving the effect of two smaller tubes working in the same space as one larger tube and allowing dual liquid laminar flow. It also lets CSF use thinner, lighter aluminum without sacrificing strength compared to standard welded “O” tubes. Multi-louvered fins are precisely aligned to maximize airflow through the core, with fin specifications calculated per application and validated in CSF’s wind tunnel lab.

Construction

Each end tank is built from high-grade aluminum for strength and durability, with TIG-welded construction adding further strength over the factory’s plastic tanks and crimped gasket seal. The top end tank includes a pre-plugged 1/8th NPT port, and the bottom end tank includes an M16 x 1.5P port, both for temperature sensors. Every radiator ships with a 1.4 bar high pressure cap featuring an embossed CSF logo, which raises the coolant’s boiling point for extra protection against boilover at high operating temperatures.

Fitment and Installation

This CSF R33 Skyline radiator is a true drop-in fit, requiring no modifications to install. OE-style brackets are CNC machined and welded for durability, and inlet/outlet connections match the factory fitment so OEM or aftermarket hoses can be reused without adapters.

Features

2-Row 42mm core for maximum cooling capacity
CSF’s exclusive B-Tube design boosts heat transfer over stock oval tubes
Multi-louvered fins maximize airflow for peak cooling efficiency
True drop-in fit, no modifications required
100% aluminum, TIG-welded construction for lasting strength
CNC-machined mounting pins and OEM-style inlet/outlet connections
Pre-installed temp sensor ports on both end tanks
1.4 bar high pressure cap with embossed CSF logo
Individually leak and pressure tested before shipping
OE-location fan shroud mounting points
Brushed silver aluminum finish
Backed by a 2-year limited warranty

Specifications

Core Rows & Thickness: 2-Row, 42mm (CSF) vs. 1-Row, 25mm (OEM)
Cooling Tubes: 75 (CSF) vs. 58 (OEM)
Cooling Fin Rows: 76 (CSF) vs. 59 (OEM)
Fin Height: 6.5mm (CSF) vs. 9mm (OEM)
Core Material: Aluminum (CSF and OEM)
Tank Material: Aluminum (CSF) vs. Plastic (OEM)
Construction: 100% TIG-welded (CSF) vs. crimp-on gasket (OEM)
Temperature Sensor Ports: 1/8th NPT (top end tank), M16 x 1.5P (bottom end tank)
Radiator Cap: 1.4 bar high pressure, embossed CSF logo
Finish: Brushed silver aluminum
Warranty: 2-year limited

Applications

Nissan Skyline GT-R: R33 | 1995-1998
Nissan Skyline GTS / GTS-25 / GTS-4 / GTS-25t: R33 | 1994-1997
Nissan Skyline GT / 25GT / 25GT-V / 25GT FOUR / 25GT Turbo: R34 | 1999-2002
Nissan Skyline 25GT-X / 25GT-X FOUR / 25GT-X Turbo: R34 | 1999-2002

Notes

Drop-in fit design requires no modifications unless otherwise noted in the included instructions; see the manufacturer repair manual for standard installation steps
Professional installation is recommended if you are not confident installing this yourself
Backed by a 2-year limited warranty

Frequently Asked Questions

Does this R33 Skyline radiator fit the GT-R and GTS? Yes. The CSF R33 Skyline radiator fits the 1995-1998 R33 GT-R and the 1994-1997 R33 GTS, GTS-25, GTS-4, and GTS-25t.
Does it fit the R34 Skyline GT-T? Yes. This same CSF radiator covers the 1999-2002 R34 GT, 25GT, 25GT-V, 25GT FOUR, and 25GT Turbo models, along with the 25GT-X variants. It does not fit the R34 GT-R, which uses a different CSF part number and tank design.
Will this radiator require any modifications to install? No. The CSF R33 Skyline radiator is a true drop-in fit, installing in the OEM location with OE-style brackets and matching inlet/outlet connections, so no cutting or modification is needed.
How does the CSF R33 Skyline radiator compare to the factory unit? The CSF R33 Skyline radiator uses a 2-row 42mm aluminum core with 75 tubes and 76 fin rows, compared to the OEM 1-row 25mm core with 58 tubes and 59 fin rows. The CSF unit also uses aluminum tanks and TIG-welded construction versus the factory’s plastic tanks and crimped gasket.
What is the B-Tube technology on this radiator? CSF’s B-Tube design uses a specially shaped, seam-brazed tube instead of a standard oval tube, increasing heat transfer surface area by approximately 15% while allowing thinner, lighter aluminum construction without losing strength.
Is professional installation recommended? Yes. While the radiator is a drop-in fit requiring no modifications, CSF recommends professional installation for anyone not confident performing the swap themselves.

About CSF

The Racing & High Performance Division of CSF Inc. is dedicated to designing and producing the world’s most advanced, efficient, and dependable cooling solutions. CSF offers a broad range of state-of-the-art cooling systems, with over 250 distinct applications. These include high-performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, as well as bespoke manufacturing tailored for racecars, power sports, off-road vehicles, marine, and industrial applications. Every cooling solution from CSF is meticulously crafted to ensure optimal engine temperature management, even in the most rigorous driving scenarios. With a legacy spanning over 50 years and more than 40 million cooling units distributed worldwide, CSF is widely regarded as a luminary in the industry.
