Does the CSF Condenser for Ferrari 458 also fit the 488, F8, SF90 and 296?

Yes. Ferrari used the same condenser across the 458, 488, F8, SF90, SF90 XX, 296, 849 Testarossa, LaFerrari and Daytona SP3, and CSF built one part number, 8377, to cover all of them, replacing Ferrari OE part number 262836. Coverage runs from the 2010 model year 458 Italia through to the current 296 Speciale and 849 Testarossa.

How much better is the CSF condenser than the factory one?

CSF measures the Condenser for Ferrari 458 at approximately 5 percent more capacity than a brand-new genuine Ferrari condenser. Against the unit actually fitted to most of these cars, which has spent years collecting road debris and losing fin area, the improvement is considerably larger. It also passes more air through to the radiator behind it, so engine coolant temperature benefits as well.

Is it a direct replacement?

Yes. The condenser uses the OE location, laser-cut mounting brackets in the factory positions and an OE-style block fitting connector, so no modification is required. The air conditioning system does have to be recovered, evacuated and recharged as part of any condenser replacement, so plan on a shop with the correct service equipment.

What is the Condenser for Ferrari 458 made from?

It is 100 percent aluminum, built around a dual-pass cross-flow parallel core with a super-high-pressure 16mm 14-channel microtube, 51 rows of cooling tubes and 52 rows of 5.4mm multi-louvered fins. The finish is satin black, and every unit is individually leak and pressure tested before it leaves CSF.

Should I replace the condenser at the same time as the radiators?

On the 458 it is worth doing. The Condenser for Ferrari 458 mounts directly in front of the left-side radiator, so it is fully exposed once the front end is apart for the radiator job. Doing both together means paying the disassembly labor once rather than twice, and a condenser of that age is rarely far from needing attention anyway.

What warranty comes with it?

CSF covers the condenser with a 2-year limited warranty against defects under normal use and service, to the original purchaser of the vehicle it was installed in. Claims require the original part to be returned to CSF for inspection.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

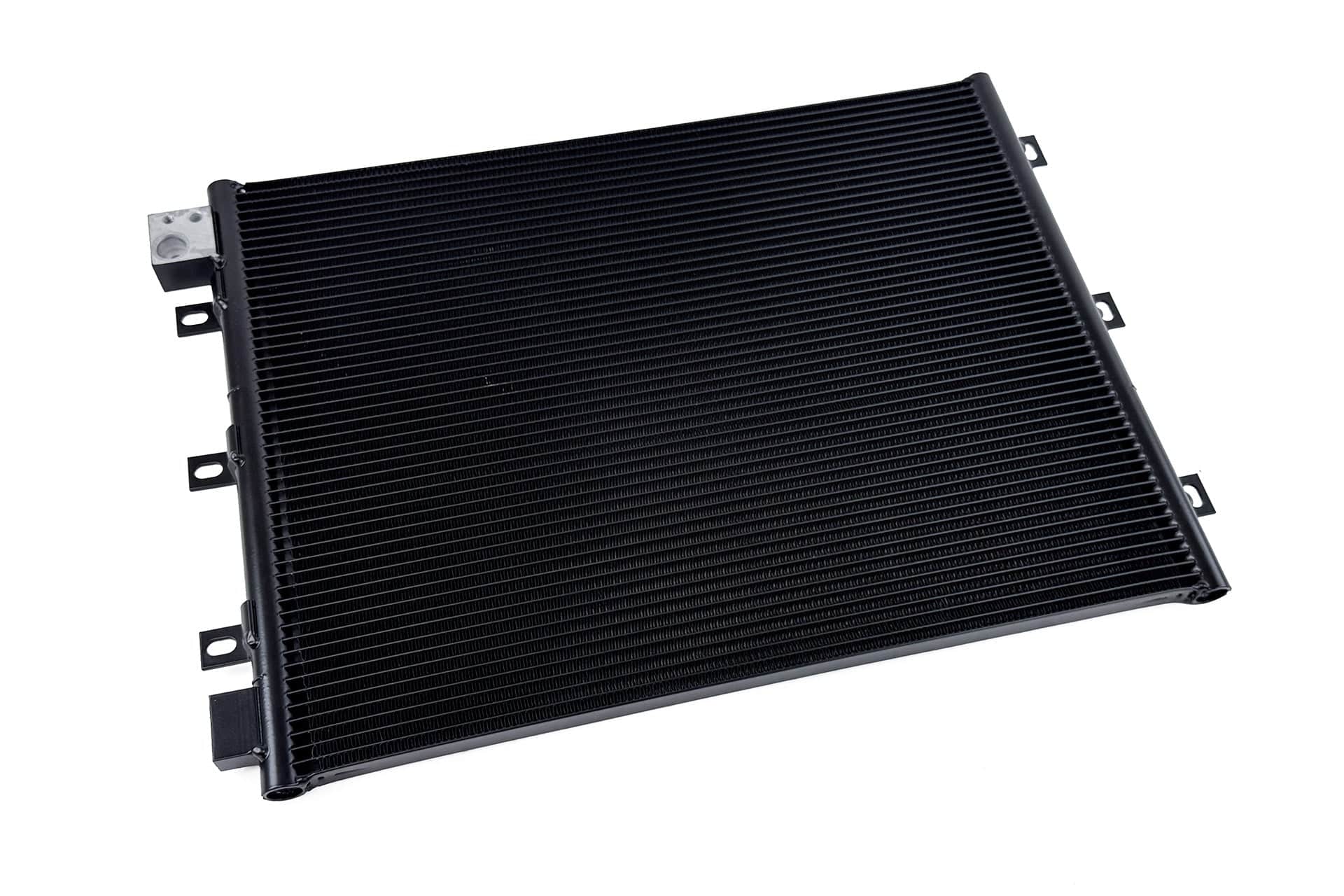

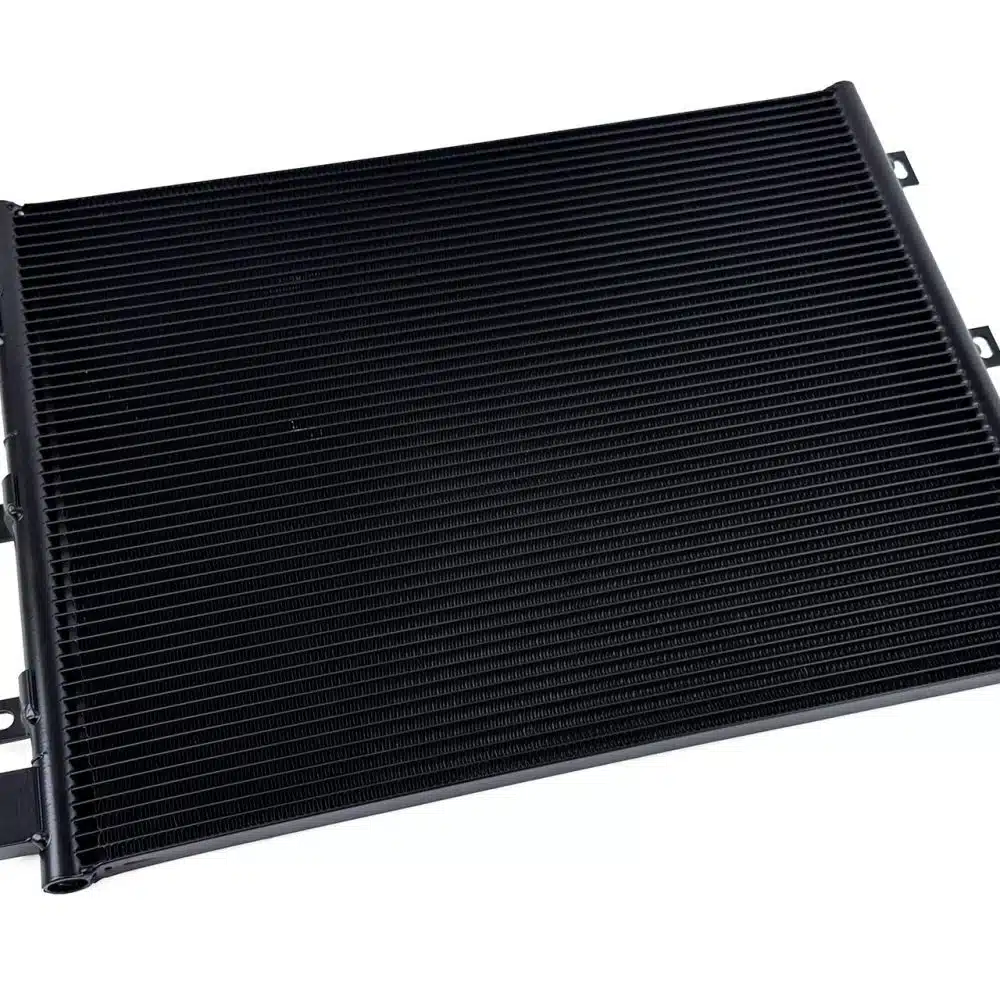

CSF OEM+ Performance A/C Condenser for Ferrari 458 / 488 / F8 / SF90 / 296, LaFerrari, Daytona SP3 and 849 Testarossa

CSF’s OEM+ Performance A/C Condenser for Ferrari 458 and every mid-engine Ferrari that shares it does something the factory part never managed: it cools the cabin better and helps the radiator behind it at the same time. Maranello used one condenser design across a remarkable span of cars, from the 458 through the 488, F8, SF90, 296, LaFerrari and Daytona SP3, and CSF built a single replacement to serve all of them. The core is a dual-pass cross-flow parallel design running a super-high-pressure 16mm 14-channel microtube, 51 rows of cooling tubes against 52 rows of 5.4mm multi-louvered fins, and it measures roughly 5% better than a brand-new genuine unit. Against the stone-chipped, half-clogged condenser actually fitted to most of these cars, the gap is far wider than that. It is all aluminum, it costs about half what Ferrari asks, and it drops into the OE location on factory brackets.

Design and Performance

CSF has built A/C condensers for decades and brought the same modern core design and manufacturing to the Ferrari unit. The architecture is parallel-flow, as the original is, but the 16mm 14-channel microtube carries more refrigerant across more internal surface area, and the 5.4mm multi-louvered fin replaces the plain fin Ferrari specified. The result is a Condenser for Ferrari 458 that rejects more heat from the refrigerant and passes more air through to the radiator sitting behind it, so engine coolant temperature benefits alongside cabin temperature. That second effect matters on these cars, where front-end packaging is tight and every degree of intake air to the radiator is worth having.

Construction

The Condenser for Ferrari 458 is 100% aluminum, with laser-cut mounting brackets in the factory positions and an OE-style block fitting connector, finished in satin black so it disappears behind the bumper. Every unit is individually leak and pressure tested before it ships. A condenser lives at the very front of the car and takes everything the road throws at it, which is exactly why the original ones end up bent, blocked and slowly leaking, and why build quality here is not a detail.

Bolt-On and Go

The Condenser for Ferrari 458 drops straight into the OE location with no modification. On the 458 it sits directly in front of the left-side radiator, which means the labor is already paid for if the radiators are coming out. Replacing a fifteen-year-old condenser while the front end is apart costs a fraction of doing it as a job of its own later, and the air conditioning system has to be recovered and recharged either way.

Features

Parallel-flow architecture matching the original, executed with more flow area and more internal surface contact
Multi-louvered fin replaces the plain fin Ferrari specified, moving more heat out of the refrigerant
Passes more air through to the radiator behind it, so engine coolant temperature improves alongside cabin temperature
Laser-cut mounting brackets in the factory positions and an OE-style block fitting connector
Drop-in fit in the OE location with no modification required
Costs roughly half what a genuine Ferrari replacement does
Every Condenser for Ferrari 458 and the models that share it is individually leak and pressure tested before shipping

Specifications

Core Type: Dual-pass cross-flow parallel condenser
Microtube: 16mm, 14-channel, super-high pressure
Cooling Tube Rows: 51
Fin Rows: 52
Fin Height: 5.4mm, multi-louvered
Performance: approximately 5% greater than a brand-new factory condenser
Construction: 100% aluminum
Finish: Satin black
Warranty: 2-year limited

Applications

Ferrari 296 GTB: 2022-2027 | 3.0L V6 turbo
Ferrari 296 GTS: 2023-2027 | 3.0L V6 turbo
Ferrari 296 Speciale: 2026-2027 | 3.0L V6 turbo
Ferrari 458 Italia: F142 | 2010-2015 | 4.5L V8
Ferrari 458 Speciale: F142 | 2015 | 4.5L V8
Ferrari 458 Spider: F142 | 2012-2015 | 4.5L V8
Ferrari 488 GTB: F142M | 2016-2019 | 3.9L V8 turbo
Ferrari 488 Pista: F142M | 2019-2021 | 3.9L V8 turbo
Ferrari 488 Pista Spider: F142M | 2019-2021 | 3.9L V8 turbo
Ferrari 488 Spider: F142M | 2016-2019 | 3.9L V8 turbo
Ferrari 849 Testarossa: 2026-2027 | 4.0L V8 turbo
Ferrari Daytona SP3: 6.5L V12
Ferrari F8 Spider: F142MFL | 2020-2022 | 3.9L V8 turbo
Ferrari F8 Tributo: F142MFL | 2020-2022 | 3.9L V8 turbo
Ferrari LaFerrari: 2014-2017 | 6.3L V12
Ferrari SF90 Spider: F173 | 2021-2024 | 4.0L V8 turbo
Ferrari SF90 Stradale: F173 | 2020-2024 | 4.0L V8 turbo
Ferrari SF90 XX Spider: F173 | 2024-2026 | 4.0L V8 turbo
Ferrari SF90 XX Stradale: F173 | 2024-2026 | 4.0L V8 turbo

Notes

Sold individually
The Condenser for Ferrari 458 replaces Ferrari OE part number 262836
On the 458 the condenser mounts directly in front of the left-side radiator and is fully exposed once the front end is apart, which is why most owners fit it alongside the CSF Left-Hand High-Performance Aluminum Radiator for F142 Ferrari 458 (7251) and the CSF Right-Hand High-Performance Aluminum Radiator for F142 Ferrari 458 (7252)
CSF quotes roughly 5% more capacity than a brand-new factory condenser; against a unit that has been in service for years, the improvement is considerably larger
Any condenser replacement requires the air conditioning system to be recovered, evacuated and recharged, so plan for a shop with the right equipment
Browse the wider CSF cooling range on Bulletproof Automotive

Frequently Asked Questions

Does the CSF Condenser for Ferrari 458 also fit the 488, F8, SF90 and 296? Yes. Ferrari used the same condenser across the 458, 488, F8, SF90, SF90 XX, 296, 849 Testarossa, LaFerrari and Daytona SP3, and CSF built one part number, 8377, to cover all of them, replacing Ferrari OE part number 262836. Coverage runs from the 2010 model year 458 Italia through to the current 296 Speciale and 849 Testarossa.
How much better is the CSF condenser than the factory one? CSF measures the Condenser for Ferrari 458 at approximately 5 percent more capacity than a brand-new genuine Ferrari condenser. Against the unit actually fitted to most of these cars, which has spent years collecting road debris and losing fin area, the improvement is considerably larger. It also passes more air through to the radiator behind it, so engine coolant temperature benefits as well.
Is it a direct replacement? Yes. The condenser uses the OE location, laser-cut mounting brackets in the factory positions and an OE-style block fitting connector, so no modification is required. The air conditioning system does have to be recovered, evacuated and recharged as part of any condenser replacement, so plan on a shop with the correct service equipment.
What is the Condenser for Ferrari 458 made from? It is 100 percent aluminum, built around a dual-pass cross-flow parallel core with a super-high-pressure 16mm 14-channel microtube, 51 rows of cooling tubes and 52 rows of 5.4mm multi-louvered fins. The finish is satin black, and every unit is individually leak and pressure tested before it leaves CSF.
Should I replace the condenser at the same time as the radiators? On the 458 it is worth doing. The Condenser for Ferrari 458 mounts directly in front of the left-side radiator, so it is fully exposed once the front end is apart for the radiator job. Doing both together means paying the disassembly labor once rather than twice, and a condenser of that age is rarely far from needing attention anyway.
What warranty comes with it? CSF covers the condenser with a 2-year limited warranty against defects under normal use and service, to the original purchaser of the vehicle it was installed in. Claims require the original part to be returned to CSF for inspection.

About CSF

The Racing & High Performance Division of CSF Inc. is dedicated to designing and producing the world’s most advanced, efficient, and dependable cooling solutions. CSF offers a broad range of state-of-the-art cooling systems, with over 250 distinct applications. These include high-performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, as well as bespoke manufacturing tailored for racecars, power sports, off-road vehicles, marine, and industrial applications. Every cooling solution from CSF is meticulously crafted to ensure optimal engine temperature management, even in the most rigorous driving scenarios. With a legacy spanning over 50 years and more than 40 million cooling units distributed worldwide, CSF is widely regarded as a luminary in the industry.
