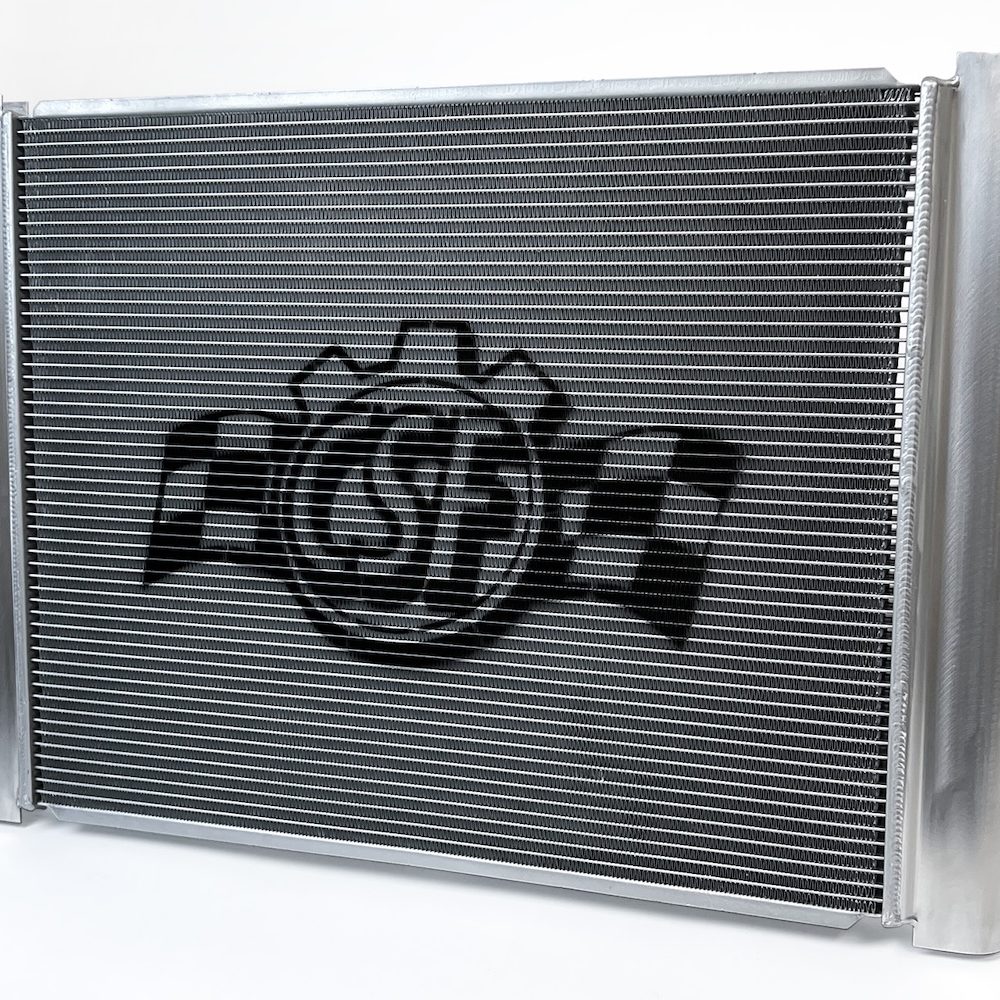

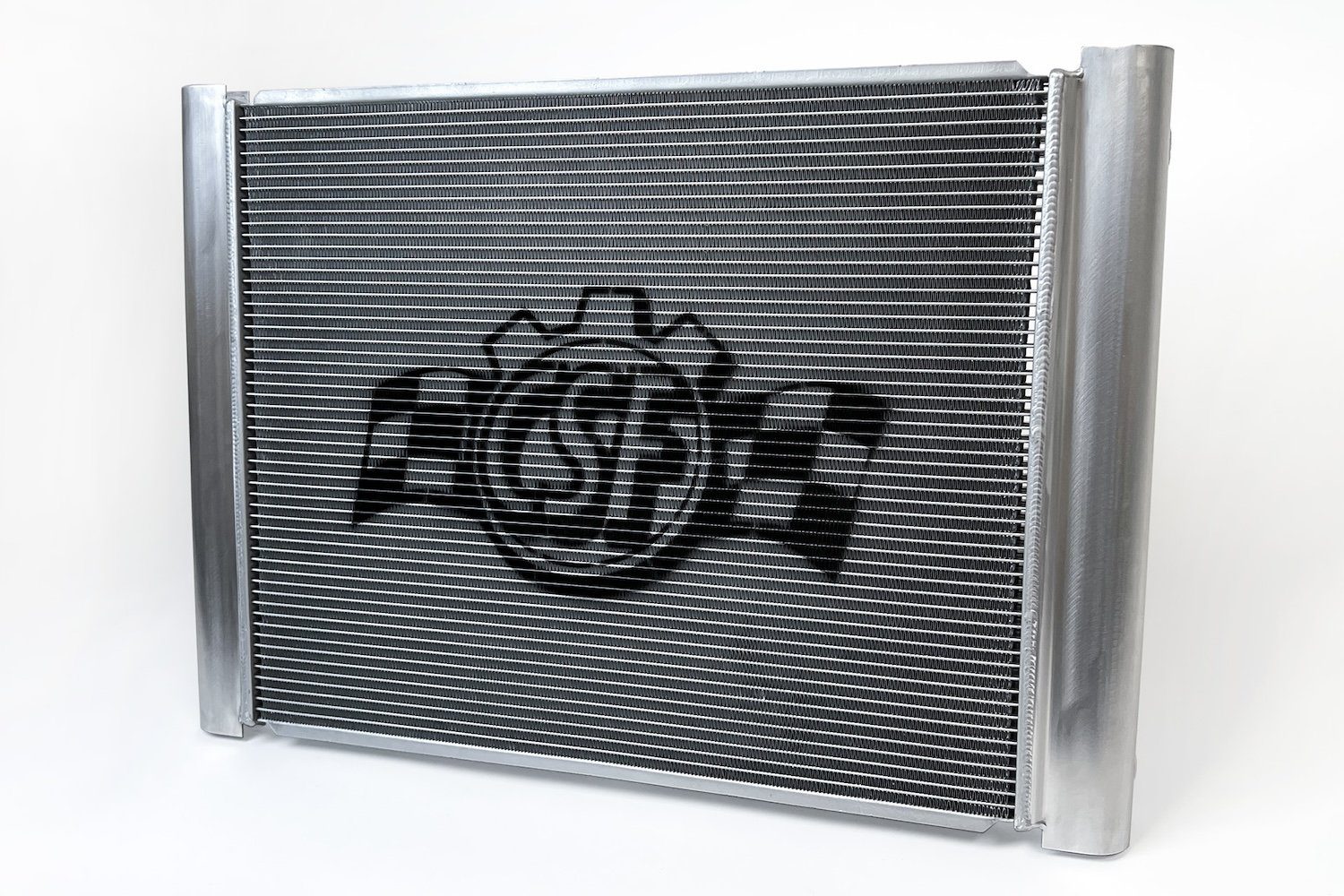

CSF High-Performance Radiator for E6x BMW M5 / M6 [7218]

CSF High-Performance Radiator for E6x BMW M5 / M6 [7218]

The E60 M5 and E6X M6 gained widespread acclaim in the mid-2000s for their 5.0L V10 engines and bold styling. These models remain highly sought after, celebrated for their future classic potential and distinction as the only BMWs ever equipped with V10 engines. Given current automotive trends, it is unlikely an engine like the S85 will ever appear in a production car again. While the factory radiator performs adequately, obtaining replacements can be challenging, and the immense heat generated by the V10 places significant stress on the cooling system. Upgrading to a larger, more efficient radiator enhances overall system longevity and ensures reliable performance in demanding conditions. This upgrade is especially critical for vehicles equipped with supercharger systems.

Design and Engineering

• CSF, renowned for decades of expertise in crafting high-performance all-aluminum radiators, has built an industry-leading reputation for quality and innovation. With extensive knowledge of BMW’s high-performance cooling systems, it was only natural for CSF to receive requests for a solution tailored to the E60 M5 and E6X M6.

CSF vs OEM

• The factory radiator in the E60 M5 and E6X M6 is a solid all-aluminum unit that has proven fairly robust over time. However, as these vehicles age and are subjected to additional power upgrades, the factory radiator often struggles to keep up. This is especially true for owners running superchargers, where the added heat from forced induction and the heat exchanger mounted in front of the radiator push the system to its limits. With E6X models approaching 20 years old and entering the “future classic” phase, many owners are undertaking restorations and upgrades. Upgraded, efficient components become essential in these scenarios. CSF addresses these challenges with its advanced radiator, featuring a 2-row 42mm aluminum core. This design not only increases fluid capacity but also enhances heat dissipation capabilities. CSF’s exclusive B-Tube Technology improves heat transfer by approximately 15% compared to standard oval welded tubes. The radiator’s 6 additional rows of cooling tubes and multi-louvered fins maximize airflow and deliver performance far superior to the OEM unit. Designed for seamless installation, the CSF radiator mounts directly into the factory location without requiring modifications or cutting. Constructed with 100% TIG-welded all-aluminum materials, it offers enhanced durability and longevity, ensuring it can withstand the demands of hard driving conditions. Whether restoring or upgrading, the CSF radiator provides the reliability and performance these iconic vehicles deserve.

Specifications

• Number of Core Rows:
  • CSF: 2
  • OEM: 1
• Number of Cooling Tubes:
  • CSF: 54
  • OEM: 48
• Number of Cooling Fin Rows:
  • CSF: 55
  • OEM: 49
• Fin Height:
  • CSF: 6.5mm
  • OEM: 8mm
• Core Material:
  • CSF: Aluminum
  • OEM: Aluminum
• Tank Material:
  • CSF: Aluminum
  • OEM: Aluminum
• Construction:
  • CSF: 100% TIG-welded
  • OEM: Brazed

Features

• 2-Row, 42mm ultra-high-performance core
• Cooling tubes with CSF’s exclusive B-tube technology
• 6.5mm tall ultra efficient fins with a multi-louvered design for maximum surface area contact
• CNC machined mounting brackets and OEM style “quick connect” inlet / outlet
• 100% all aluminum TIG-welded construction
• Satin finish
• True plug-and-play “drop-in fit” installation requires absolutely no modifications
• Individually leak and pressure tested
• 2-Year limited warranty

Applications

• BMW M5: E60 (2006-2010) – 5.0L V10 S85
• BMW M6: E63, E64 (2006-2010) – 5.0L V10 S85
