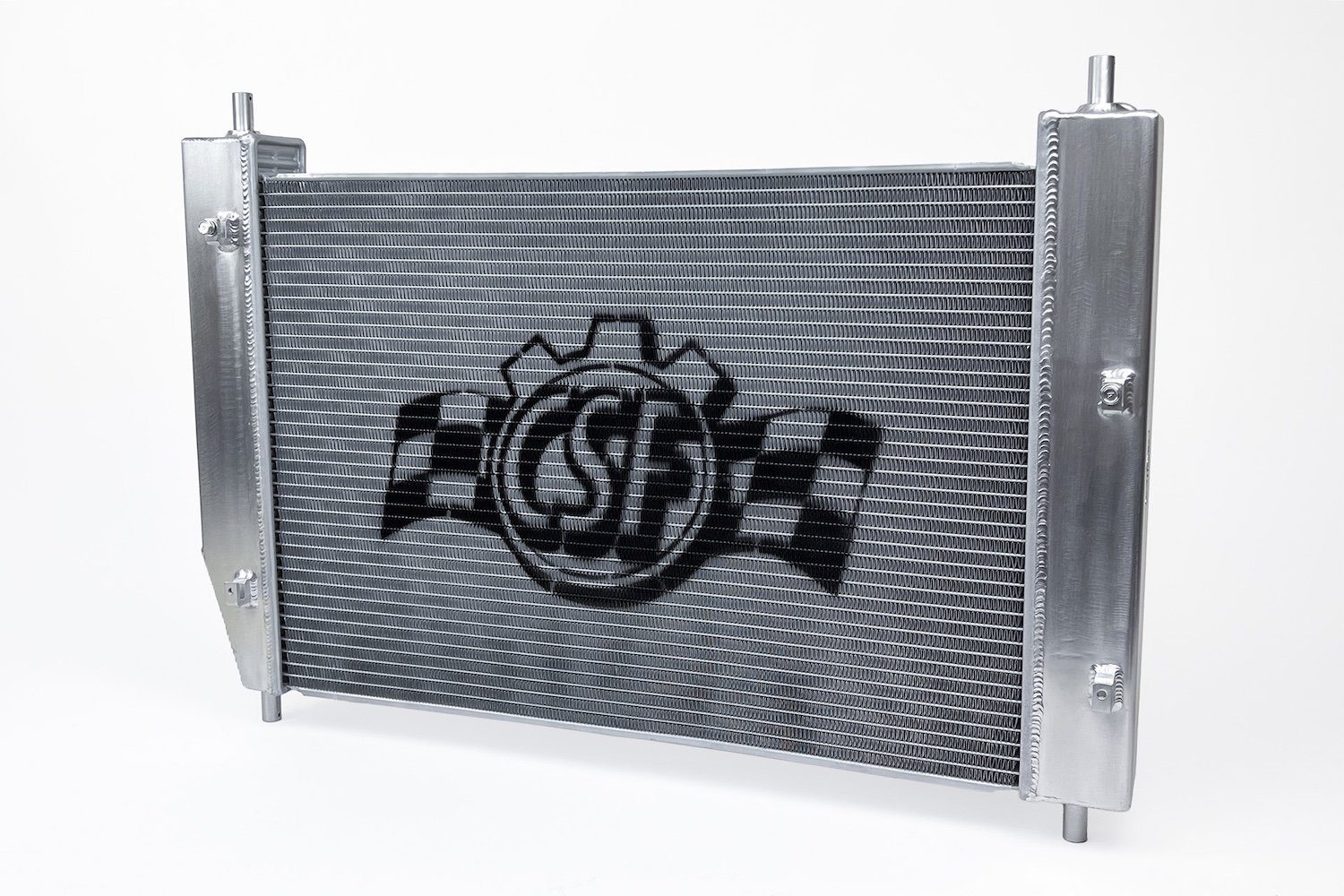

CSF High-Performance Radiator for C6 Chevrolet Corvette [7223]

$599.00

-

The C6 Corvette, a favorite among enthusiasts for its adaptability and the legendary LS engine, offers exceptional performance and aftermarket support. While the LS engine delivers impressive power, often exceeding 1,000 horsepower, the factory cooling system struggles under high demands. To address this, CSF engineered a radiator compatible with all trims and common supercharger systems.

STOCK STATUS: 4 in stock
This product ships for free within the Continental United States.
Guaranteed Safe Checkout
Payment Options - American Express, Discover, Visa, MasterCard, JCB, Maestro Credit Cards Payment Options - Apple Pay, PayPal, Splitit, Dinser Club International, Union Pay Credit Cards
SKU: 7223 Category: Vehicle: , , Brand:
DESCRIPTION & INFO
Description
Additional Info
Shipping policy
BP PRICING DIFFERENCE
Reviews

CSF High-Performance Radiator for C6 Chevrolet Corvette [7223]

For decades, the Corvette has reigned as a top choice for out-of-the-box, high-performance value. The C6 Corvette, in particular, has become a favorite among enthusiasts due to its adaptability and robust aftermarket support. Its platform is one of the most commonly modified in the country, thanks to the legendary LS engine. Renowned for its simplicity, durability, and exceptional engineering, the LS engine frequently achieves over 1,000 horsepower and excels in various racing disciplines. However, the increased demands of racing and high horsepower levels can easily overwhelm the stock cooling system of the C6 Corvette. Recognizing this challenge, CSF developed a radiator designed to fit all trims and integrate seamlessly with popular supercharger systems.

Design and Engineering

  • CSF, well-versed in GM performance vehicles, recognized the need for a high-performance radiator for the C6 Corvette. With many C6 owners seeking upgrades or replacements for aging factory radiators, CSF aimed to design a model compatible with all trims and common modifications. Partnering with A&A Corvette, experts with over 20 years of experience in Corvette-specific products, CSF developed a radiator featuring a core with 193% more volume than the factory version, delivering a significant boost in cooling capacity. Additionally, the CSF radiator provides exceptional value, priced hundreds of dollars less than competing aftermarket options.

CSF VS OEM

  • The original Chevy OE radiator for the C6 Corvette features plastic tanks and a single-row aluminum core, offering decent durability but falling short for high-horsepower builds and intense driving. Recognizing the cooling demands of big V8 engines like the LS, CSF designed the C6 Corvette Radiator with a 193% larger 2-row, 52mm aluminum core. This upgrade increases fluid capacity and enhances heat dissipation, leveraging CSF’s exclusive B-Tube Technology for 15% more efficient heat transfer compared to standard oval tubes. Additionally, the 8mm super-efficient multi-louvered fins optimize airflow, delivering superior performance even with intercoolers and heat exchangers used in supercharger or turbo setups. The radiator’s TIG-welded, all-aluminum construction boosts strength and durability, ensuring it withstands rigorous driving conditions. Designed for seamless installation, it mounts in the factory location without modifications, and its slightly reduced core height allows for improved clearance with supercharger systems.

Factory Style Fittings and Mounting Points

  • All the fittings on the CSF radiator are made to the same specifications as the factory radiators, allowing for a simple plug and play installation. CSF carefully engineered and produced the factory style quick connect fittings for models equipped with an Engine Oil Cooler and/or Automatic Transmission Cooler. If your C6 Corvette is not equipped with either of these coolers you can simply leave them unplugged as these are independent cooling circuits. CNC machined fan shroud mounting points are placed to accommodate all the different OE fan configurations. All radiator mounting pins are also CNC machined for added strength compared to the OE plastic pins. The mounting pins also feature cotter pin holes for securing the A&A Corvette Top Shroud.

Built in Oil & Transmission Coolers

  • CSF incorporated both an engine oil cooler and an automatic transmission cooler into the C6 Corvette radiator, utilizing a high-efficiency plate design for optimal performance. The engine oil cooler features a high-flow, 4-plate design with low-pressure drop characteristics, while the automatic transmission cooler uses a super-efficient 6-plate design to maximize heat dissipation, making it ideal for motorsport applications such as track, drift, and drag racing. Both coolers were meticulously engineered to enhance cooling performance without compromising the efficiency of the radiator, delivering superior results compared to the factory system.

Core Height

  • CSF designed the radiator with a slightly reduced core height to accommodate various supercharger installations. Unlike many setups that require trimming the radiator core or lowering its position, the CSF Radiator eliminates the need for such modifications. This design avoids the structural weakening and potential core damage associated with cutting the header plate on the OEM radiator, ensuring durability and ease of installation.

Specifications

  • Number of Core Rows:
    • CSF: 2
    • OEM: 1
  • Number of Cooling Tubes:
    • CSF: 40
    • OEM: 39
  • Number of Cooling Fin Rows:
    • CSF: 41
    • OEM: 40
  • Fin Height / Width:
    • CSF: 8mm
    • OEM: 9mm
  • Core Thickness:
    • CSF: 52mm
    • OEM: 33.9mm
  • Core Material:
    • CSF: Aluminum
    • OEM: Aluminum
  • Tank Material:
    • CSF: Aluminum
    • OEM: Plastic
  • Construction:
    • CSF: 100% TIG welded
    • OEM: Crimp-on gasket

Features

  • 2-Row, 52mm ultra-high-performance core
  • Cooling tubes with CSF’s Exclusive B-tube technology
  • 8mm tall ultra efficient fins with a multi-louvered design for maximum surface area contact
  • Shorter core height provides clearance for supercharger installations
  • CNC machined mounting brackets and OEM style inlet / outlet
  • Built in engine oil cooler & automatic transmission cooler with factory-style quick connect fittings
  • 100% all aluminum TIG-welded construction
  • Hand brushed satin finish
  • True plug-and-play “Drop-in Fit” installation requires absolutely no modifications
  • Individually leak and pressure tested
  • 2-Year limited warranty

Applications

  • Chevrolet Corvette: C6 (2005-2013) – 6.0L V8 LS2, 6.2L V8 LS3

Notes

  • The radiator is compatible with all aftermarket ram air intake systems currently available
  • Not compatible with ZR1 & Z06 with Z07 Performance Package

About CSF

The Racing & High Performance Division of CSF Inc. is dedicated to designing and producing the world’s most advanced, efficient, and dependable cooling solutions. CSF offers a broad range of state-of-the-art cooling systems, with over 250 distinct applications. These include high-performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, as well as bespoke manufacturing tailored for racecars, power sports, off-road vehicles, marine, and industrial applications. Every cooling solution from CSF is meticulously crafted to ensure optimal engine temperature management, even in the most rigorous driving scenarios. With a legacy spanning over 50 years and more than 40 million cooling units distributed worldwide, CSF is widely regarded as a luminary in the industry.
