CSF Charge-Air-Cooler for F9x BMW X5M / X6M / G09 XM [8315]

CSF Charge-Air-Cooler for F9x BMW X5M / X6M / G09 XM [8315]

With the S63 engine shared by the M5 and M6, these SUVs gain access to a vast range of tuning and power upgrade options, pushing the stock internals to over 800 horsepower. However, this increased power results in much higher heat levels—a challenge that M5 and M6 owners have relied on CSF’s Charge-Air-Coolers to overcome for years. In response to high demand from the M SUV community, CSF proudly introduces the High-Performance Charge-Air-Coolers, crafted specifically for the F95 X5M, F96 X6M, and G08 XM models.

Design and Engineering

• CSF initially designed the BMW S63 Charge-Air-Coolers specifically for the F9X M5/M6, with over five hundred intercooler kits sold, many supporting builds exceeding 1000 horsepower. Their popularity and proven performance led to numerous requests for a compatible set for the X5M and X6M. Collaborating with Steve Dinan’s Carbahn, CSF developed an innovative mounting hardware solution. The result is a true plug-and-play system that requires no modifications for installation, offering M SUV owners a seamless upgrade to elevate their vehicle’s performance to new heights.

CSF VS OEM

• CSF’s Charge-Air-Cooler cores are nearly 100% larger in volume than the factory coolers, custom-designed through CFD analysis and testing to ensure optimal performance and precise fitment. Both coolers feature OEM-style “Quick Connect” water connections and sensor ports, making installation fast and straightforward. For further details and performance data, refer to the full press release on the CSF #8178 Coolers. CSF has replaced the OEM’s weaker crimped-on plastic end tanks with larger, CFD-analyzed, 100% TIG-welded cast end tanks. Additionally, CSF has integrated the charge pipe directly into the top end tank, eliminating the factory’s glued-on plastic charge pipes. This single-piece cast design creates a far stronger system capable of withstanding much higher boost pressures. Dual integrated 1/8 NPT ports on both outlet-side air tanks allow for easy installation of aftermarket methanol or nitrous injection systems, with the port placement carefully positioned to inject directly into the post-intercooled charge-air stream for maximum performance.

Custom Powder-Coating & Thermal Rejection Finishing Options

• CSF provides the industry’s widest selection of custom finishes, ranging from color-matched powder coating to advanced Thermal Dispersion Coatings, offering virtually unlimited options. These custom finishes are available for an additional charge, please contact us for further details.
  • Powder Coating: Powder coating is available in nearly any color you can imagine, with finish choices that include everything from high gloss to crinkle texture. You can even select accent colors or apply different colors to specific components, such as fuel rails (when applicable).
  • Thermal Dispersion Coatings: Thermal Dispersant / Dispersion Coatings are submicron coatings with exceptionally high thermal conductivity. Their dense, unique chemical composition allows for efficient heat transfer. When applied to a heat exchanger like an intercooler, the enhanced thermal conductivity draws heat to the surface of the component, improving performance. These coatings are limited to Black or Grey but deliver the best thermal efficiency.
    • Alpine white (+$200)
    • Arctic black (with heat dispersion thermal coating) (+$200)
    • Bengal red (gloss / matte) (+$200)
    • Bismark gold (BMW M5 CS color match) (+$200)
    • Carbon ceramic (BMW M color match) (gloss / matte) (+$200)
    • Crinkle red (+$200)
    • Custom blue stone (+$200)
    • Fire orange (gloss / matte) (+$200)
    • Frozen polish (+$900)
    • Isle of man green (+$200)
    • Java green (+$200)
    • M-stripe blue (+$200)
    • Mustard yellow (+$200)
    • Space grey (gloss / matte) (+$200)
    • Space grey (with heat dispersion thermal coating) (+$200)
    • Techna bronze (Titan7 Wheels color match) (+$200)
    • Vintage rose (+$200)

Features

• Custom designed CSF liquid-to-air intercooler core (CFD analysis and testing completed to ensure optimal performance)
• 100% increase in core volume per each charge cooler compared to the OEM charge air coolers
• 1-Piece seamless air inlet end tanks with integrated charge pipes
• Integrated E85/methanol injection ports built into air outlet end tank (dual 1/8 NPT ports per cooler)
• Complete with OEM-style “quick connect” water connections and sensor ports
• Designed with 3D scanning and rapid prototype technology to ensure precise fitment and maximum surface area utilization
• “Drop-in fit” design with no modifications necessary
• Significantly reduces intake air temperatures (IATs)

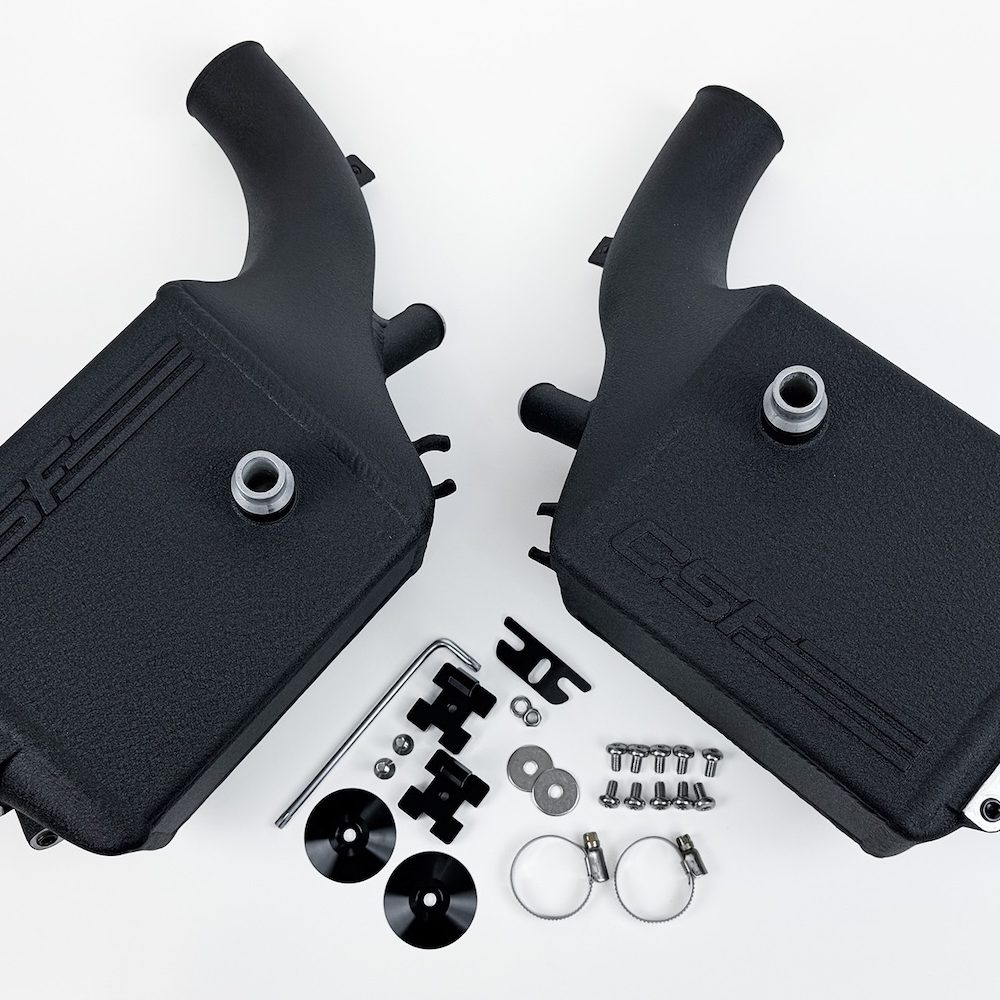

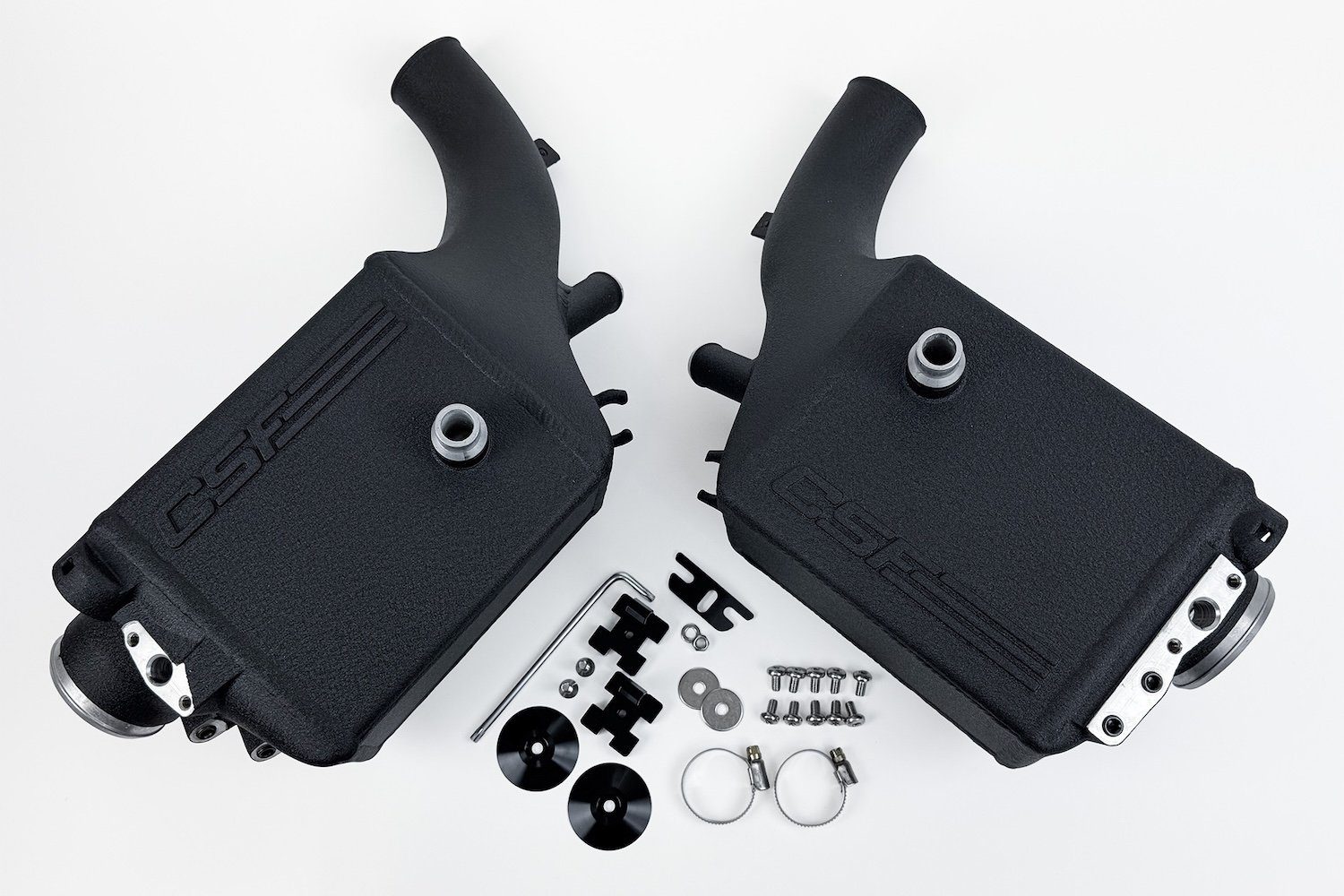

• Sold as a complete set with left and right charge-air coolers + installation hardware
• Lifetime warranty

Applications

• BMW XM: G09 (2022+) – 4.4L TT V8 S63
• BMW X5M: F95 (2019+) – 4.4L TT V8 S63
• BMW X6M: F96 (2019+) – 4.4L TT V8 S63

Notes

• Custom color options are available at an additional cost, please contact us for more information
