Does the Silver FMIC Kit for GD/GG fit a 2002 or 2003 WRX?

No. COBB confirms the Silver FMIC Kit for GD/GG only for 2004-2007 USDM WRX sedans and wagons, manual or automatic, and the 2004-2007 WRX STI. The 2002 and 2003 WRX are not on the application list, so contact us before ordering for an earlier car.

Is this front mount intercooler legal in California?

Yes. The kit has a California Air Resources Board Executive Order, and the supplied sticker lists EO D-660-57. It is legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide.

Does COBB require a tune with this kit?

No. COBB does not list a tune as a requirement. The IAT sensor bung in the cold side pipe is there for a speed density conversion, and that step is a tuning change made with an Accessport or a custom tune, neither of which is included.

Which intakes work with this intercooler kit?

COBB designed the kit around its own SF Intake and Airbox, and the SF Airbox must be trimmed using the template in the box. COBB has not confirmed compatibility with other intakes, so ask our team to check yours before you order.

How do the Silver and Black versions differ?

They share the price, the 30 x 10.35 x 3.5 in core dimensions, the 2.5 in wrinkle black piping and every relocation part. Only the intercooler core changes: part 712502-SL in this Silver kit, and 712502-BK in the Black kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Silver FMIC Kit for GD/GG Subaru WRX and WRX STI

COBB Tuning’s Silver FMIC Kit for GD/GG Subaru WRX and WRX STI moves charge cooling off the top of the engine and out to the front of the car, where a 30 x 10.35 x 3.5 in bar and plate core sits in cooler, cleaner air. A CARB Executive Order keeps it road legal in all 50 states. It suits a car whose bigger turbo or track days have outrun the factory top mount; on a stock daily driver it is a big job for little return.

Why Move the Intercooler

COBB notes that the factory top mount is easily overworked and overheated because of its size and its position above the engine. Once it heat soaks, intake temperature rises and power fades. The Silver FMIC Kit for GD/GG puts a far larger core in direct airflow at the bumper, and its black heat-dissipating coating helps release the heat it collects.

Features

Silver-version intercooler core, COBB part 712502-SL, built as a bar and plate unit
Mandrel-bent aluminum hot and cold pipes in wrinkle black powder coat
Integrated IAT sensor bung in the cold side charge pipe
Adapter plate for the factory BPV, the COBB XLE BPV or factory-fitment valves
Coolant overflow tank and washer fluid filler neck relocation included

Specifications

Core Size: 30 x 10.35 x 3.5 in
Core Construction: Bar and plate
Core Coating: Black heat-dissipating
Piping Diameter: 2.5 in
Piping Material: Mandrel-bent aluminum
Piping Finish: Wrinkle black powder coat
Country of Origin: USA

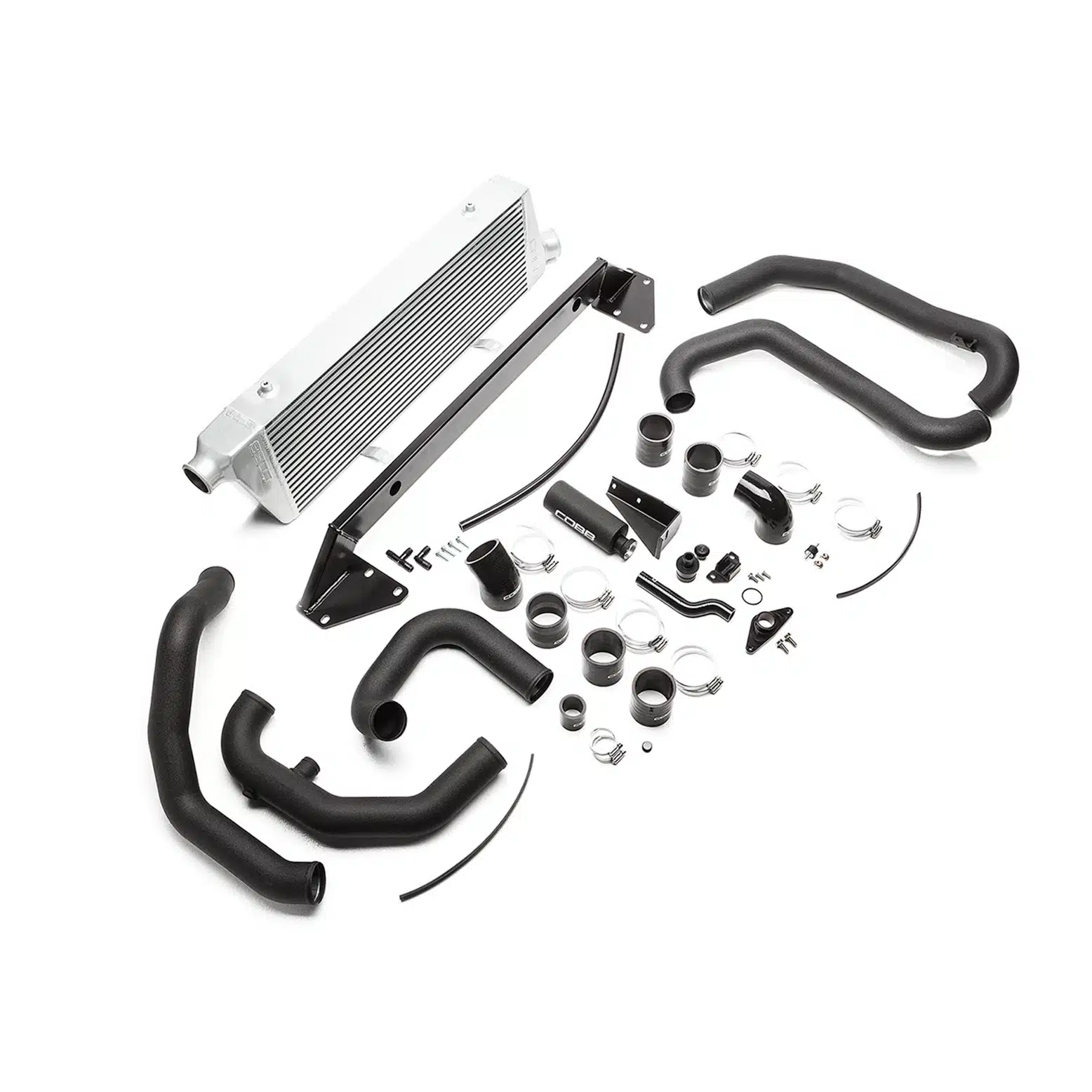

What’s Included

Silver Front Mount Intercooler Core (712502-SL)
Front Mount Intercooler Hot Pipes (712500-H)
Front Mount Intercooler Cold Pipes (712500-C)
BPV Adapter Plate (812500)
Coolant Overflow Tank with Washer Fluid Relocation Kit (800630)
SF Airbox trimming template
CARB EO sticker (D-660-57)

Applications

Subaru WRX: GD/GG | 2004-2007 | Sedan and Wagon, Manual or Automatic, USDM
Subaru WRX STI: GD | 2004-2007 | Manual, USDM

Notes

The Silver FMIC Kit for GD/GG is 50-state legal with CARB EO D-660-57; COBB also lists D-660-22, D-660-219 and D-660-259
Accessport and tuning are not included; a speed density conversion through the IAT bung requires an ECU retune
The COBB SF Airbox must be trimmed with the supplied template, and other intakes are unconfirmed by COBB

Frequently Asked Questions

Does the Silver FMIC Kit for GD/GG fit a 2002 or 2003 WRX? No. COBB confirms the Silver FMIC Kit for GD/GG only for 2004-2007 USDM WRX sedans and wagons, manual or automatic, and the 2004-2007 WRX STI. The 2002 and 2003 WRX are not on the application list, so contact us before ordering for an earlier car.
Is this front mount intercooler legal in California? Yes. The kit has a California Air Resources Board Executive Order, and the supplied sticker lists EO D-660-57. It is legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide.
Does COBB require a tune with this kit? No. COBB does not list a tune as a requirement. The IAT sensor bung in the cold side pipe is there for a speed density conversion, and that step is a tuning change made with an Accessport or a custom tune, neither of which is included.
Which intakes work with this intercooler kit? COBB designed the kit around its own SF Intake and Airbox, and the SF Airbox must be trimmed using the template in the box. COBB has not confirmed compatibility with other intakes, so ask our team to check yours before you order.
How do the Silver and Black versions differ? They share the price, the 30 x 10.35 x 3.5 in core dimensions, the 2.5 in wrinkle black piping and every relocation part. Only the intercooler core changes: part 712502-SL in this Silver kit, and 712502-BK in the Black kit.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
