What comes in the Redline Carbon Fiber Stage 2 Package?

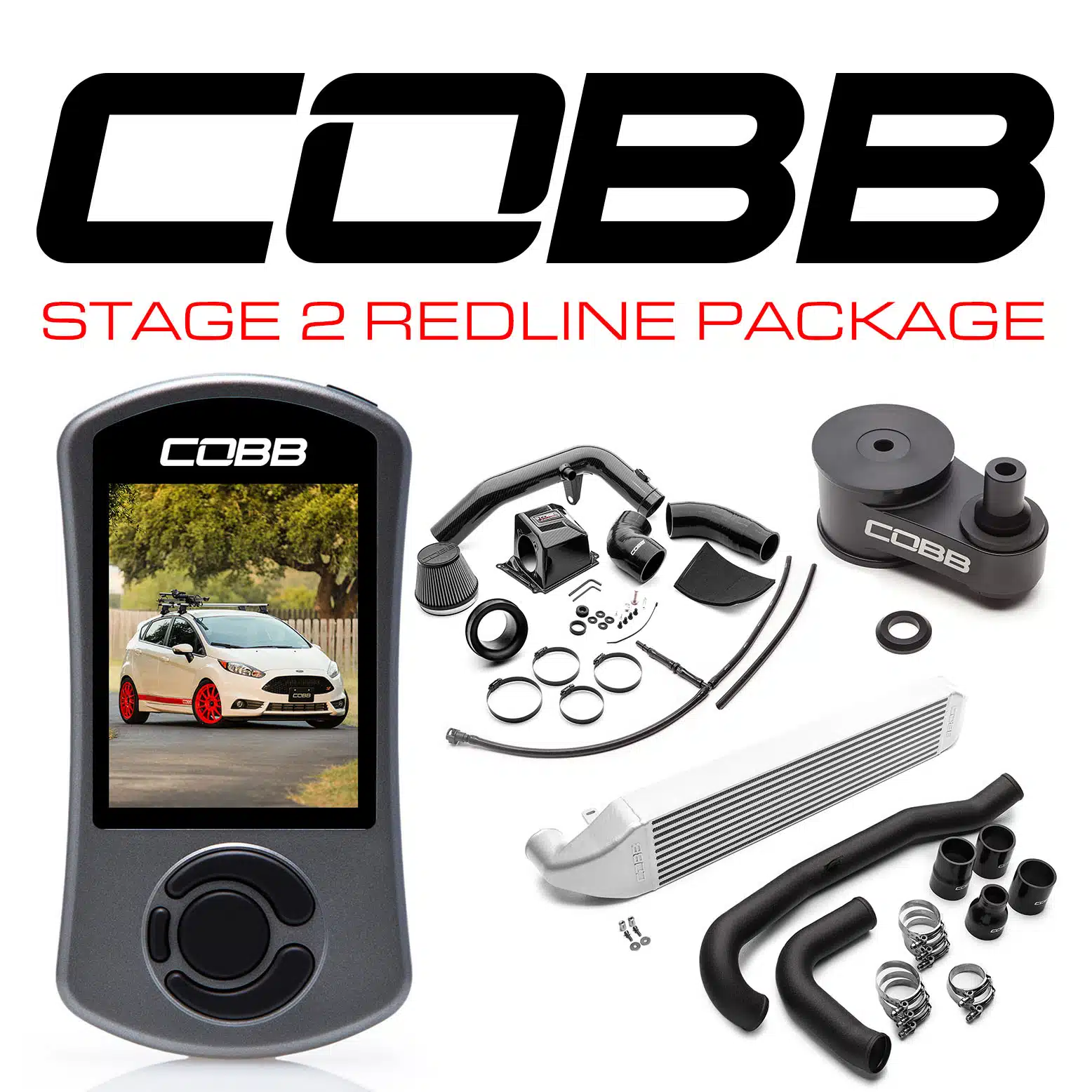

The Redline Carbon Fiber Stage 2 Package includes the Accessport V3, part AP3-FOR-001, the Redline Carbon Fiber Intake System, part 702120, the Front Mount Intercooler Kit, part 702500, the Rear Motor Mount, part 892010, and a chrome COBB vehicle badge. Exhaust and downpipe parts are sold separately.

How is this different from the standard Fiesta ST Stage 2 package?

Only the intake changes. This version uses the Redline carbon fiber tube and airbox lid, where the standard package uses the regular COBB intake and adapter. The Accessport V3, intercooler, motor mount and badge are identical, and both share one CARB Executive Order.

Is the package legal in California?

Yes. COBB lists California Air Resources Board Executive Order D-660-194 for this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide, including in California.

Will the carbon fiber weave be perfect?

Not always. COBB lays the Redline tube and airbox lid by hand and states that slight imperfections or variances in the weave pattern can be expected. Every unit still carries the gloss finish and the Redline badge on its lid.

Does the Accessport in this package support launch control on the Fiesta ST?

Yes. On the Fiesta ST the Accessport V3 in the Redline Carbon Fiber Stage 2 Package offers launch control with six preset RPM slots that change on the fly, plus Flat Foot Shift and Burnout Mode, all enabled in the COBB Off The Shelf maps.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Redline Carbon Fiber Stage 2 Package for B299 Ford Fiesta ST

COBB Tuning’s Redline Carbon Fiber Stage 2 Package suits the Fiesta ST owner who cares how the engine bay looks as much as how the car pulls. A hand-laid 3k twill carbon intake and airbox lid join the Accessport V3, the COBB front mount intercooler with its 55 percent larger core, and a rear motor mount, all under CARB EO D-660-194. COBB quotes no extra power for the carbon, so a driver chasing output alone can save with the standard tube.

Redline Intake Construction

The tube and airbox lid are laid by hand from 3k tow carbon fiber in a 2×2 twill, finished in gloss with a Redline badge. Black 4-ply silicone couplers and black e-coated 304 stainless steel hardware hold it together, and a pre-oiled filter adds airflow and turbo sound.

Charge Cooling and Drivetrain

The intercooler in the Redline Carbon Fiber Stage 2 Package uses a 27.5 x 6 x 3 inch bar and plate core, and COBB quotes charge air up to 100 degrees cooler than stock. The rear motor mount keeps the extra torque from rotating the engine, putting more of it through the front tires and reducing wheel hop.

Features

Accessport V3 with six-slot launch control and Flat Foot Shift between 3000 and 8000 RPM
Gloss 3k tow, 2×2 twill carbon fiber intake tube and airbox lid
Bar and plate intercooler core about 55 percent larger than the factory unit, with custom cast endtanks
Rear motor mount to control engine movement under load
OEM style chrome COBB vehicle badge

What’s Included

COBB Ford Focus ST / Fiesta ST Accessport V3 (AP3-FOR-001)
COBB Ford Fiesta ST Redline Carbon Fiber Intake System (702120)
COBB Ford Fiesta ST Front Mount Intercooler Kit (702500)
COBB Ford Fiesta ST Rear Motor Mount (892010)
COBB Vehicle Badge (800200)

Applications

Ford Fiesta ST: B299 | 2014-2019 | USDM

Notes

Load a COBB Off The Shelf map matching the installed parts, or a custom tune from a COBB tuner
Carbon fiber parts are hand laid, so slight imperfections or weave pattern variances can be expected
COBB confirms USDM Fiesta ST models only
50-state legal with CARB EO D-660-194

Frequently Asked Questions

What comes in the Redline Carbon Fiber Stage 2 Package? The Redline Carbon Fiber Stage 2 Package includes the Accessport V3, part AP3-FOR-001, the Redline Carbon Fiber Intake System, part 702120, the Front Mount Intercooler Kit, part 702500, the Rear Motor Mount, part 892010, and a chrome COBB vehicle badge. Exhaust and downpipe parts are sold separately.
How is this different from the standard Fiesta ST Stage 2 package? Only the intake changes. This version uses the Redline carbon fiber tube and airbox lid, where the standard package uses the regular COBB intake and adapter. The Accessport V3, intercooler, motor mount and badge are identical, and both share one CARB Executive Order.
Is the package legal in California? Yes. COBB lists California Air Resources Board Executive Order D-660-194 for this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide, including in California.
Will the carbon fiber weave be perfect? Not always. COBB lays the Redline tube and airbox lid by hand and states that slight imperfections or variances in the weave pattern can be expected. Every unit still carries the gloss finish and the Redline badge on its lid.
Does the Accessport in this package support launch control on the Fiesta ST? Yes. On the Fiesta ST the Accessport V3 in the Redline Carbon Fiber Stage 2 Package offers launch control with six preset RPM slots that change on the fly, plus Flat Foot Shift and Burnout Mode, all enabled in the COBB Off The Shelf maps.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
