Will the Black TMIC Kit for VB Subaru WRX fit a 2024 WRX TR?

Yes. COBB confirms fitment on the 2024 WRX TR sedan with the manual gearbox, alongside every 2022 to 2026 WRX sedan sold in the US with either the manual or the CVT. The Black TMIC Kit for VB Subaru WRX drops into the factory location under the hood scoop and reuses the stock charge pipe, so the TR needs no special parts.

Do I need an Accessport to install this intercooler?

No. COBB says this intercooler does not require any tuning changes. It runs safely on the stock Subaru calibration, and if you already use an Accessport with a COBB Stage 1 Off The Shelf map you can keep that map loaded. An Accessport is not part of the kit and must be purchased separately if you want one.

Can I pass a California smog check with this kit installed?

Yes. The kit is covered by CARB Executive Order numbers D-660-119, D-660-154, D-660-188, D-660-244 and D-660-309, which makes it legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide. Keeping a copy of the EO with the vehicle documents makes an inspection easier.

How much more airflow does it provide?

COBB rates the kit at a 30 percent airflow increase over the stock WRX intercooler. That comes from the larger 20 x 7 x 4 inch Garrett core, the cast aluminum end tanks that guide air through it, and the Thrust Tunnel, which channels air from the hood scoop into the core face.

Is the Black kit any different from the Silver kit apart from color?

No. COBB lists the Black kit as B41450-BK and the Silver kit as B41450-SL, and the two share the same Garrett core, airflow rating, Thrust Tunnel, fitment and CARB Executive Orders. Pick the finish that suits your engine bay. The Thrust Tunnel is wrinkle black powder coat on both.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Black TMIC Kit for VB Subaru WRX

COBB Tuning’s Black TMIC Kit for VB Subaru WRX is a bolt-in top mount intercooler that replaces the stock unit under the hood scoop of the 2022 and newer sedan, built in the USA around a 20 x 7 x 4 in Garrett core. Bespoke cast aluminum end tanks spread the charge across that core, and COBB quotes a 30 percent gain in airflow over the original part. Because it carries CARB Executive Orders, it is street legal in California as well as the other 49 states. We would point a WRX owner here once the factory cooler starts to heat soak on back-to-back pulls or track sessions. Turbo response is unchanged, since the charge follows the same short factory route.

Features

20 x 7 x 4 in Garrett core
Airflow up 30 percent over the factory intercooler, per COBB
Bespoke cast aluminum end tanks
Wrinkle black powder coated aluminum Thrust Tunnel fixes to the factory hood ducting
Reinforced silicone couplers carry the flow path to the throttle body
Uses the stock charge pipe and factory o-ring seals
Compatible with stock or COBB Stage 1 tunes
Built in the USA

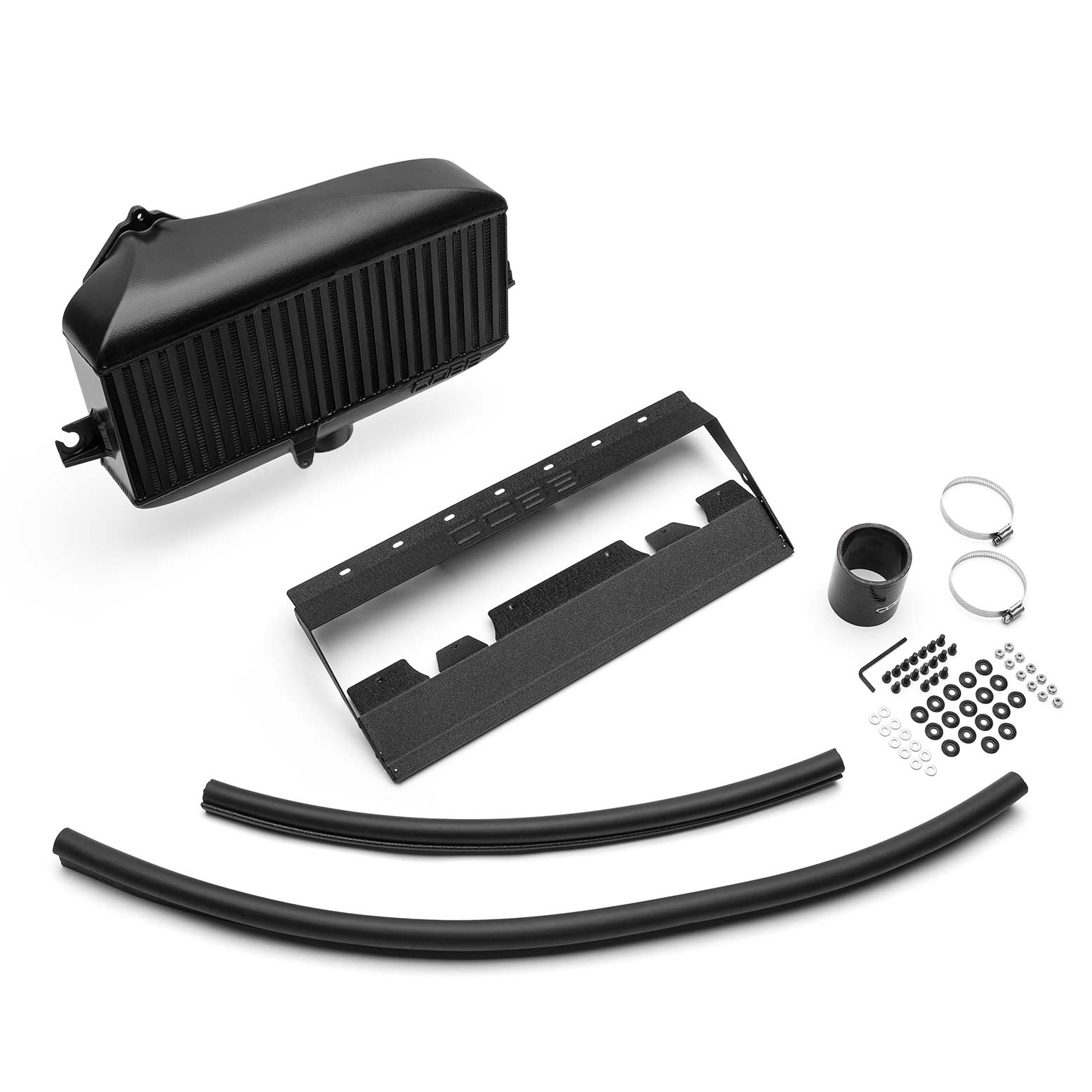

What’s Included

Black TMIC Kit for VB Subaru WRX with Garrett core and cast aluminum end tanks
COBB Thrust Tunnel
Reinforced silicone couplers

Applications

Subaru WRX Sedan: VB | 2022-present | Manual and CVT, USDM and ADM
Subaru WRX Sportswagon: 2022-present | CVT, ADM
Subaru WRX TR Sedan: VB | 2024 | Manual, USDM

Notes

No tuning is needed and no Accessport is included
50-state legal with CARB EO D-660-119, D-660-154, D-660-188, D-660-244 and D-660-309 when installed per the COBB application guide
Stock charge pipe and factory o-rings are carried over from the vehicle, not supplied
Black finish; the Silver kit is listed separately as B41450-SL

Frequently Asked Questions

Will the Black TMIC Kit for VB Subaru WRX fit a 2024 WRX TR? Yes. COBB confirms fitment on the 2024 WRX TR sedan with the manual gearbox, alongside every 2022 to 2026 WRX sedan sold in the US with either the manual or the CVT. The Black TMIC Kit for VB Subaru WRX drops into the factory location under the hood scoop and reuses the stock charge pipe, so the TR needs no special parts.
Do I need an Accessport to install this intercooler? No. COBB says this intercooler does not require any tuning changes. It runs safely on the stock Subaru calibration, and if you already use an Accessport with a COBB Stage 1 Off The Shelf map you can keep that map loaded. An Accessport is not part of the kit and must be purchased separately if you want one.
Can I pass a California smog check with this kit installed? Yes. The kit is covered by CARB Executive Order numbers D-660-119, D-660-154, D-660-188, D-660-244 and D-660-309, which makes it legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide. Keeping a copy of the EO with the vehicle documents makes an inspection easier.
How much more airflow does it provide? COBB rates the kit at a 30 percent airflow increase over the stock WRX intercooler. That comes from the larger 20 x 7 x 4 inch Garrett core, the cast aluminum end tanks that guide air through it, and the Thrust Tunnel, which channels air from the hood scoop into the core face.
Is the Black kit any different from the Silver kit apart from color? No. COBB lists the Black kit as B41450-BK and the Silver kit as B41450-SL, and the two share the same Garrett core, airflow rating, Thrust Tunnel, fitment and CARB Executive Orders. Pick the finish that suits your engine bay. The Thrust Tunnel is wrinkle black powder coat on both.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
