Which STI models does the Black STI Front Mount Intercooler Kit fit?

COBB confirms the USDM WRX STI sedan for 2015 through 2021, plus the 2018 Type RA and the 2019 S209, all with the manual gearbox. The standard WRX of the same years uses different charge pipes and a separate COBB kit, so check the badge on your car before ordering this one.

What does the IAT bung in the cold pipe do?

It gives you a ready location for an Intake Air Temperature sensor in the cold side charge pipe. COBB says this makes a Speed Density conversion straightforward, since no extra fabrication is needed to mount the sensor. The sensor and the tuning for a Speed Density setup are not included and should be handled by a qualified tuner.

Is this kit CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-22, D-660-57, D-660-219 and D-660-259 for this kit, making it legal for sale and use on emissions-controlled vehicles in all 50 states when installed per its application guide. A CARB sticker for D-660-57 is included with the hardware.

Is the black kit any different from the silver kit apart from color?

No. The Black STI Front Mount Intercooler Kit uses core 716500-BK in black, while the silver version uses 716500-SL. Everything else matches: the core dimensions, 2.5 in piping, IAT bung, BPV adapter, fitment, CARB coverage and price. Pick whichever finish you prefer to see behind the front bumper.

Will my aftermarket intake work with it?

COBB designed this intercooler kit to work with its SF Intake and Airbox and states it cannot confirm compatibility with other intake kits. Running the COBB SF setup is the dependable route. With another brand installed, ask that manufacturer about fit before you order, or plan to change intakes when the intercooler goes in.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Black STI Front Mount Intercooler Kit for VA Subaru WRX STI

COBB Tuning’s Black STI Front Mount Intercooler Kit trades the heat-prone factory top mount on the 2015-2021 VA Subaru WRX STI for a 24 x 11 x 4 in bar and plate core in the bumper opening, coated black to dissipate heat. Owners planning a Speed Density setup get a head start, because the cold side pipe carries a built-in IAT sensor bung, and a BPV adapter plate lets the stock valve carry over. CARB EO coverage keeps it legal in every state. The dark finish suits a black grille or darker paint; on a stock STI that rarely sees sustained boost, the factory top mount may be enough.

Features

Black STI Front Mount Intercooler core, 24 x 11 x 4 in bar and plate, in a black heat-dissipating coating
Cold side charge pipe with an integrated Intake Air Temperature sensor bung
Included BPV adapter plate accepts OEM or COBB valves
Mandrel-bent 2.5 in aluminum piping in wrinkle black powder coat
Integrated tow hook or license plate relocation bracket provision
COBB coolant overflow tank and washer fluid filler neck supplied

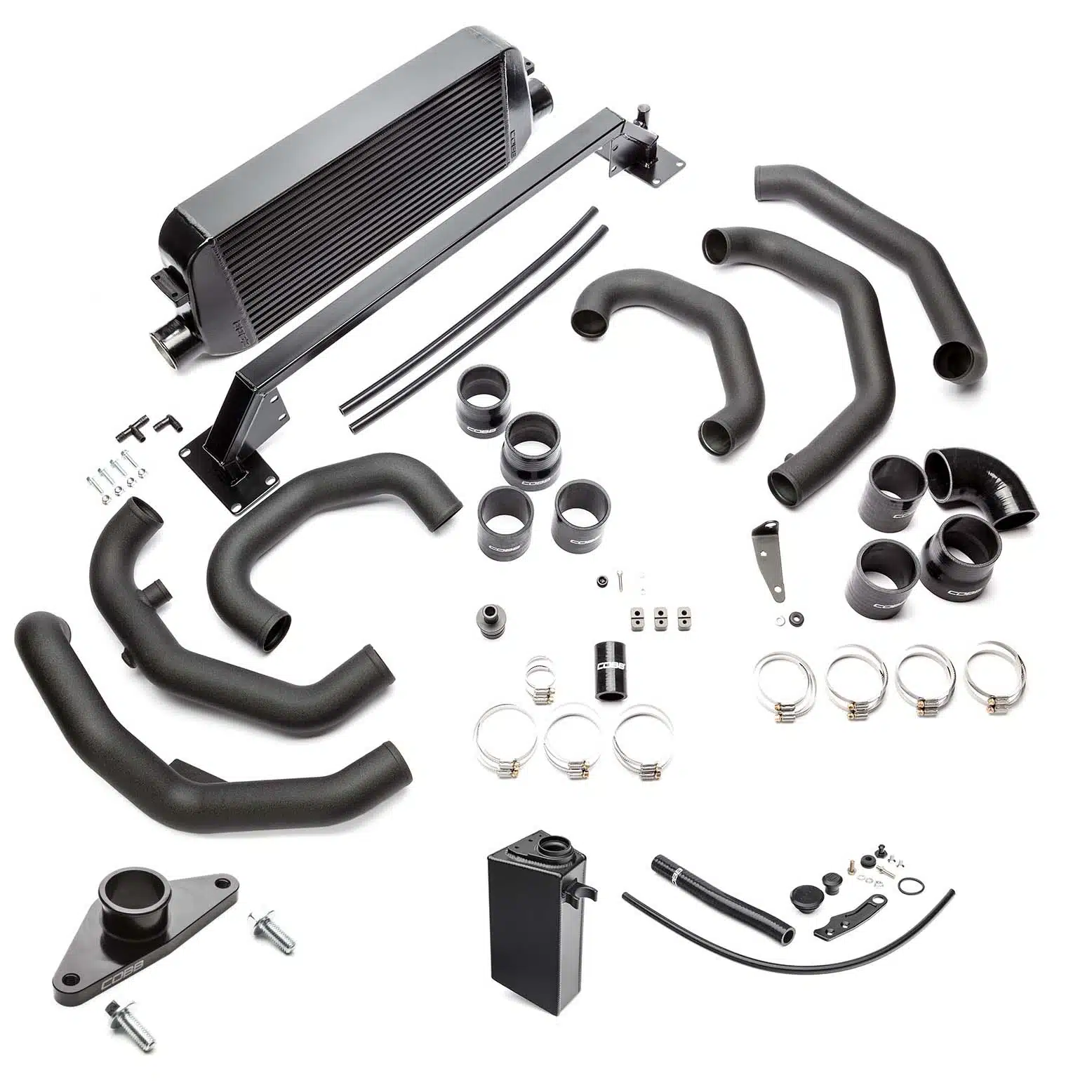

What’s Included

Front Mount Intercooler Core, Black (716500-BK)
Hot Pipe Kit (716500-H)
Cold Pipe Kit (716500-C)
BPV Adapter Plate (812500)
COBB Coolant Overflow Tank (800660)
Washer Fluid Filler Neck
CARB EO Sticker (D-660-57)

Applications

Subaru WRX STI S209: VA | 2019 | Manual | USDM
Subaru WRX STI Sedan: VA | 2015-2021 | Manual | USDM
Subaru WRX STI Type RA: VA | 2018 | Manual | USDM

Notes

Holds CARB EO D-660-22, D-660-57, D-660-219 and D-660-259 for legal sale and use in all 50 states when installed per COBB guidance
An Accessport or custom tune is sold separately
COBB designed this kit for its SF Intake and Airbox and cannot confirm compatibility with other intakes
Requires minor trimming of the under-tray
Fits the manual WRX STI models listed above; does not fit the standard 2015-2021 WRX

Frequently Asked Questions

Which STI models does the Black STI Front Mount Intercooler Kit fit? COBB confirms the USDM WRX STI sedan for 2015 through 2021, plus the 2018 Type RA and the 2019 S209, all with the manual gearbox. The standard WRX of the same years uses different charge pipes and a separate COBB kit, so check the badge on your car before ordering this one.
What does the IAT bung in the cold pipe do? It gives you a ready location for an Intake Air Temperature sensor in the cold side charge pipe. COBB says this makes a Speed Density conversion straightforward, since no extra fabrication is needed to mount the sensor. The sensor and the tuning for a Speed Density setup are not included and should be handled by a qualified tuner.
Is this kit CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-22, D-660-57, D-660-219 and D-660-259 for this kit, making it legal for sale and use on emissions-controlled vehicles in all 50 states when installed per its application guide. A CARB sticker for D-660-57 is included with the hardware.
Is the black kit any different from the silver kit apart from color? No. The Black STI Front Mount Intercooler Kit uses core 716500-BK in black, while the silver version uses 716500-SL. Everything else matches: the core dimensions, 2.5 in piping, IAT bung, BPV adapter, fitment, CARB coverage and price. Pick whichever finish you prefer to see behind the front bumper.
Will my aftermarket intake work with it? COBB designed this intercooler kit to work with its SF Intake and Airbox and states it cannot confirm compatibility with other intake kits. Running the COBB SF setup is the dependable route. With another brand installed, ask that manufacturer about fit before you order, or plan to change intakes when the intercooler goes in.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
