Which cars does the Black Front Mount Intercooler Kit fit?

COBB lists the Black Front Mount Intercooler Kit for the USDM 2011 to 2014 Subaru Impreza WRX STI, both the GV sedan and GR hatchback, with the manual transmission. It is not listed for the regular WRX of those years or the newer VA STI, which each have their own COBB kit.

Can I run this kit on a California registered STI?

Yes. The kit carries a California Air Resources Board Executive Order, so COBB states it is legal on emissions controlled vehicles in all 50 states when installed per the application guide. The supplied sticker shows EO D-660-57 for display during a smog check.

Is a tune required with the black intercooler kit?

No. COBB does not list a tune as mandatory, and none is supplied. The kit is aimed at tuned cars, though, where higher boost makes heat soak worst and cooler charge air helps most. A COBB Accessport map or custom protuner calibration makes full use of the core.

How hard is the installation?

COBB does not publish a difficulty rating for this kit. Expect to remove the front bumper and factory top mount intercooler, route new hot and cold side pipes and fit the supplied BPV and coolant overflow tank. Many owners have a shop handle it alongside a tune.

How is the black kit different from the silver kit?

The core finish is the only change. The black kit uses core part 724502-BK, which hides behind the grille, while the silver kit uses part 724502-SL. Core dimensions, the 2.5 in black powder coated piping, the BPV, the coolant tank and the STI fitment are identical.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Black Front Mount Intercooler Kit for GR/GV Subaru WRX STI

COBB Tuning’s Black Front Mount Intercooler Kit gives the GR and GV generation STI a 30 x 10.35 x 3.5 in bar and plate core mounted low in the nose, finished black so it disappears behind the bumper opening. The real payoff is consistency, a car that pulls as hard on the fifth run as the first. It makes most sense with a tune and the COBB SF Intake and Airbox; a stock STI driven gently will see little benefit.

Why Relocate the Intercooler

The factory unit sits on top of the engine, surrounded by turbo heat. Under sustained boost it heat soaks, intake temperatures rise and the ECU trims power. The Black Front Mount Intercooler Kit places a much larger core where it sees ambient air first, with 2.5 in aluminum tubing in matching wrinkle black.

Features

Black finished 30 x 10.35 x 3.5 in bar and plate core that blends in behind the bumper
Supports power levels beyond 800 whp according to COBB
Cold side pipe with a built-in IAT sensor bung, ready for a speed density conversion
COBB Universal LF BPV and coolant overflow tank supplied
Manufactured in the USA

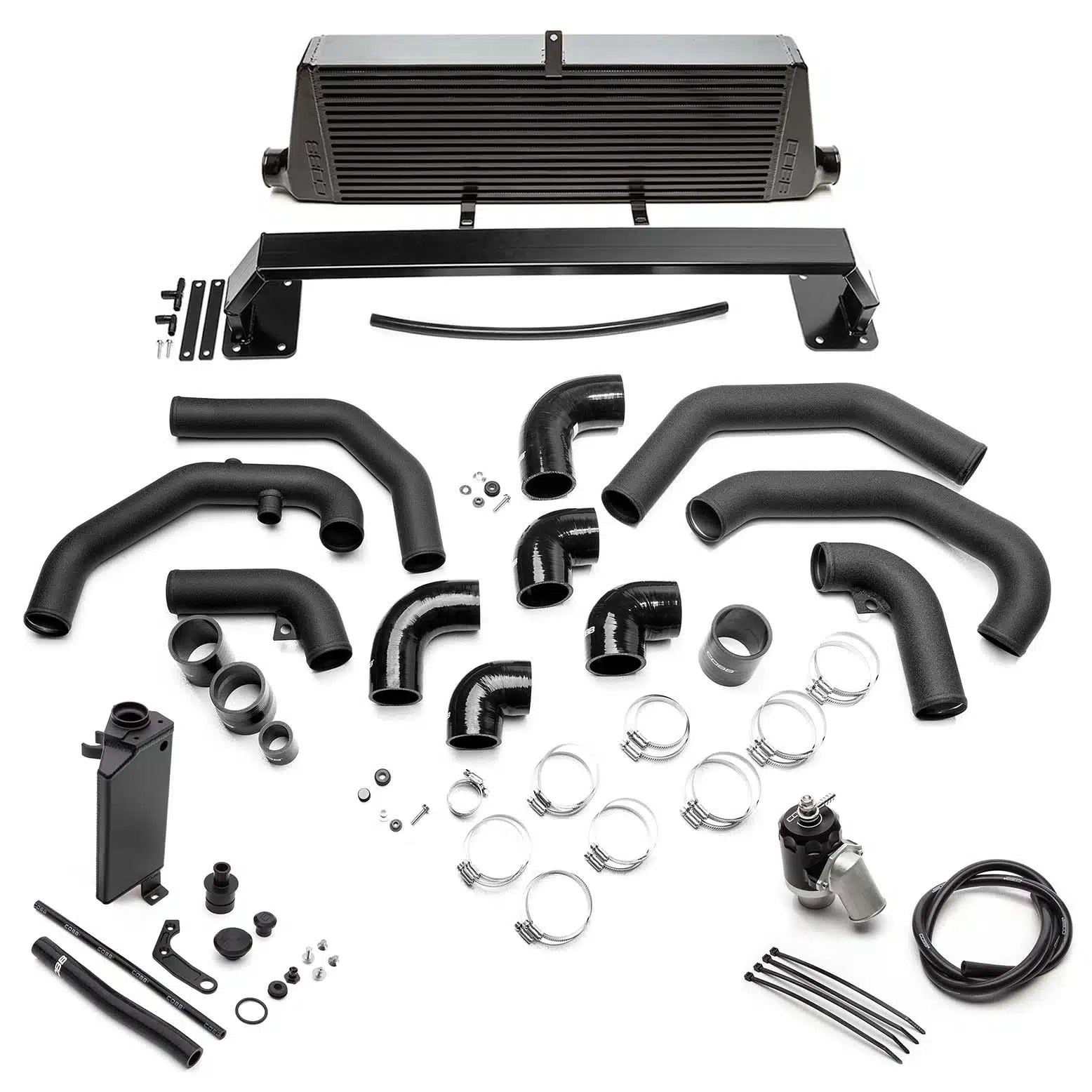

What’s Included

Black bar and plate front mount intercooler core, part 724502-BK
Hot side intercooler pipes, part 715500-H
Cold side intercooler pipes with integrated IAT sensor bung, part 715500-C
COBB Universal LF BPV, part 715665
COBB coolant overflow tank, part 800655
CARB EO D-660-57 sticker

Applications

Subaru WRX STI Hatchback: GR | 2011-2014 | Manual Transmission | USDM
Subaru WRX STI Sedan: GV | 2011-2014 | Manual Transmission | USDM

Notes

The Black Front Mount Intercooler Kit does not include an Accessport or a tune
COBB developed the piping with the COBB SF Intake and Airbox and cannot confirm fit with other intakes
Fitment covers the USDM 2011-2014 WRX STI sedan and hatchback with manual transmission; the standard WRX needs a different kit
50-state legal with CARB EO D-660-57

Frequently Asked Questions

Which cars does the Black Front Mount Intercooler Kit fit? COBB lists the Black Front Mount Intercooler Kit for the USDM 2011 to 2014 Subaru Impreza WRX STI, both the GV sedan and GR hatchback, with the manual transmission. It is not listed for the regular WRX of those years or the newer VA STI, which each have their own COBB kit.
Can I run this kit on a California registered STI? Yes. The kit carries a California Air Resources Board Executive Order, so COBB states it is legal on emissions controlled vehicles in all 50 states when installed per the application guide. The supplied sticker shows EO D-660-57 for display during a smog check.
Is a tune required with the black intercooler kit? No. COBB does not list a tune as mandatory, and none is supplied. The kit is aimed at tuned cars, though, where higher boost makes heat soak worst and cooler charge air helps most. A COBB Accessport map or custom protuner calibration makes full use of the core.
How hard is the installation? COBB does not publish a difficulty rating for this kit. Expect to remove the front bumper and factory top mount intercooler, route new hot and cold side pipes and fit the supplied BPV and coolant overflow tank. Many owners have a shop handle it alongside a tune.
How is the black kit different from the silver kit? The core finish is the only change. The black kit uses core part 724502-BK, which hides behind the grille, while the silver kit uses part 724502-SL. Core dimensions, the 2.5 in black powder coated piping, the BPV, the coolant tank and the STI fitment are identical.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
