Which Subaru models does the Black Front Mount Intercooler Core fit?

COBB lists it for USDM 2015 to 2021 Subaru WRX sedans with the manual or CVT transmission and for 2015 to 2021 WRX STI sedans with the manual gearbox, including the 2018 Type RA and 2019 S209. It is not listed for the 2022 and newer WRX.

What else do I need to complete the installation?

You need 2.5 in hot side and cold side intercooler pipes, because the core ships with its mounting beam only. Owners either have custom piping fabricated or use the COBB Hot Pipe and Cold Pipe Kits for this platform. Clamps and couplers are not part of this core.

Can I legally run this core in California?

No. COBB states that the part is not legal for sale or use in California on any emission controlled motor vehicle, and California Air Resources Board testing is still pending with no Executive Order issued. Outside California, COBB considers it street legal under federal rules.

Can I keep a front license plate or tow hook?

Yes. The black coated bumper beam that comes with the core has an integrated mount for either a tow hook or a license plate in the factory position, so owners in front plate states, or who use the tow hook at the track, keep that function.

How does the Black Front Mount Intercooler Core differ from the silver version?

The difference is the coating color. The Black Front Mount Intercooler Core wears a black heat-dissipating finish, while the sister part uses silver. COBB lists both with the same 24 x 11 x 4 in bar and plate core, cast end tanks, 2.5 in connections, coated beam and WRX and STI fitment.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Black Front Mount Intercooler Core for VA Subaru WRX and WRX STI

COBB Tuning’s Black Front Mount Intercooler Core is a 24 x 11 x 4 in bar and plate unit for the 2015-2021 WRX and WRX STI, dressed in a black heat-dissipating coating that all but disappears behind the lower grille. Cast aluminum end tanks taper into 2.5 in connections, and a coated bumper beam comes with it. Treat it as the foundation of a bespoke intercooler system: there is no piping in the box, and it only pays off on a car with real boost and heat.

Construction and Mounting

The Black Front Mount Intercooler Core uses bar and plate construction, and the coated beam that carries it keeps a tow hook or license plate mount in its original position. COBB positions this core for custom setups paired with 2.5 in piping, and quotes it as keeping charge air temperatures under control even on 800 whp builds.

Features

24 x 11 x 4 in bar and plate core
Black heat-dissipating coating for a low-visibility look
Cast aluminum end tanks feeding 2.5 in inlet and outlet ports
Coated mounting beam supplied with the core
Integrated tow hook or license plate mount in the factory location
Country of origin: USA

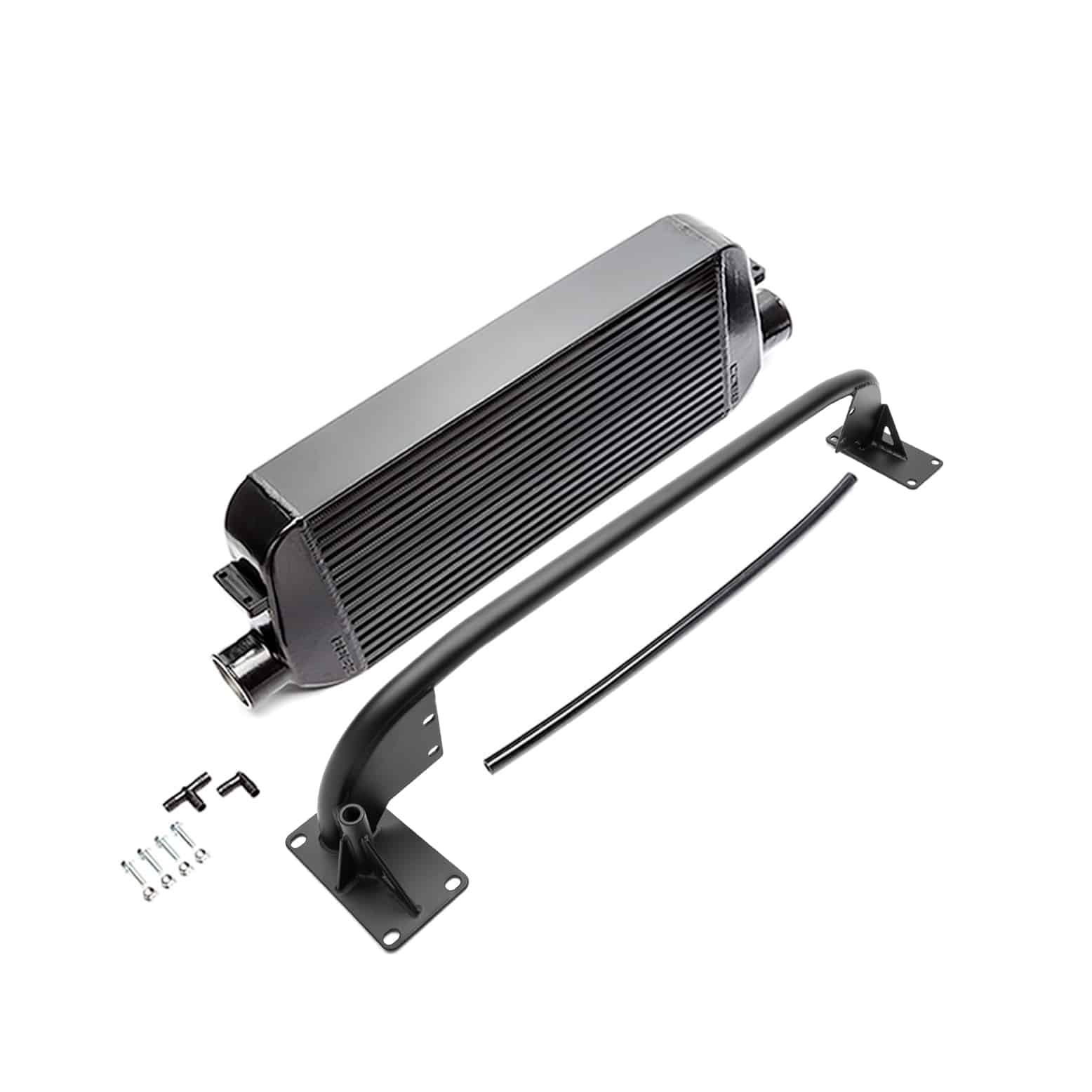

What’s Included

Black bar and plate front mount intercooler core with cast end tanks
Black coated bumper beam with tow hook or license plate provision

Applications

Subaru WRX Sedan: VA | 2015-2021 | Manual or CVT Transmission | USDM
Subaru WRX STI Sedan: VA | 2015-2021 | Manual Transmission, including the 2018 Type RA and 2019 S209 | USDM

Notes

Hot side and cold side charge pipes are not included and must be sourced separately
This core does not include an Accessport or any tuning
Listed for USDM 2015-2021 Subaru WRX and WRX STI sedans
Not legal for sale or use in California on any emission controlled motor vehicle; COBB reports CARB testing as pending
COBB states it is street legal in states that accept the Clean Air Act and EPA Anti-Tampering Policy provisions

Frequently Asked Questions

Which Subaru models does the Black Front Mount Intercooler Core fit? COBB lists it for USDM 2015 to 2021 Subaru WRX sedans with the manual or CVT transmission and for 2015 to 2021 WRX STI sedans with the manual gearbox, including the 2018 Type RA and 2019 S209. It is not listed for the 2022 and newer WRX.
What else do I need to complete the installation? You need 2.5 in hot side and cold side intercooler pipes, because the core ships with its mounting beam only. Owners either have custom piping fabricated or use the COBB Hot Pipe and Cold Pipe Kits for this platform. Clamps and couplers are not part of this core.
Can I legally run this core in California? No. COBB states that the part is not legal for sale or use in California on any emission controlled motor vehicle, and California Air Resources Board testing is still pending with no Executive Order issued. Outside California, COBB considers it street legal under federal rules.
Can I keep a front license plate or tow hook? Yes. The black coated bumper beam that comes with the core has an integrated mount for either a tow hook or a license plate in the factory position, so owners in front plate states, or who use the tow hook at the track, keep that function.
How does the Black Front Mount Intercooler Core differ from the silver version? The difference is the coating color. The Black Front Mount Intercooler Core wears a black heat-dissipating finish, while the sister part uses silver. COBB lists both with the same 24 x 11 x 4 in bar and plate core, cast end tanks, 2.5 in connections, coated beam and WRX and STI fitment.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
