COBB Tuning Black FMIC Kit for GD/GG Subaru WRX and WRX STI

COBB Tuning’s Black FMIC Kit for GD/GG Subaru WRX and WRX STI replaces the factory top mount with a front-mounted 30 x 10.35 x 3.5 in bar and plate core, giving the 2004-2007 cars an intercooler that can keep pace with real boost. It carries a CARB Executive Order for road use in every state. With a bigger turbo or summer track sessions planned, it is money well spent; on a gently driven stock car, the extra work of relocating the coolant overflow and washer filler is hard to justify.

Design and Performance

Heat soak is the weakness of the stock arrangement: COBB notes that the top mount is small and sits above a hot engine, so it is quickly overwhelmed and intake temperatures climb, taking power with them. The Black FMIC Kit for GD/GG mounts a much larger core directly in the airstream behind the bumper, with a black heat-dissipating coating and mandrel-bent 2.5 in aluminum charge pipes.

Features

Black-version bar and plate intercooler core, COBB part 712502-BK
Wrinkle black powder coated aluminum charge pipes for a clean engine bay
Cold side pipe with a built-in bung for an intake air temperature sensor
Supplied BPV adapter plate for the factory valve or the COBB XLE BPV
Relocation parts for the coolant overflow tank and washer filler neck

Specifications

Core Size: 30 x 10.35 x 3.5 in
Core Construction: Bar and plate
Core Coating: Black heat-dissipating
Piping Diameter: 2.5 in
Piping Material: Mandrel-bent aluminum
Piping Finish: Wrinkle black powder coat

What’s Included

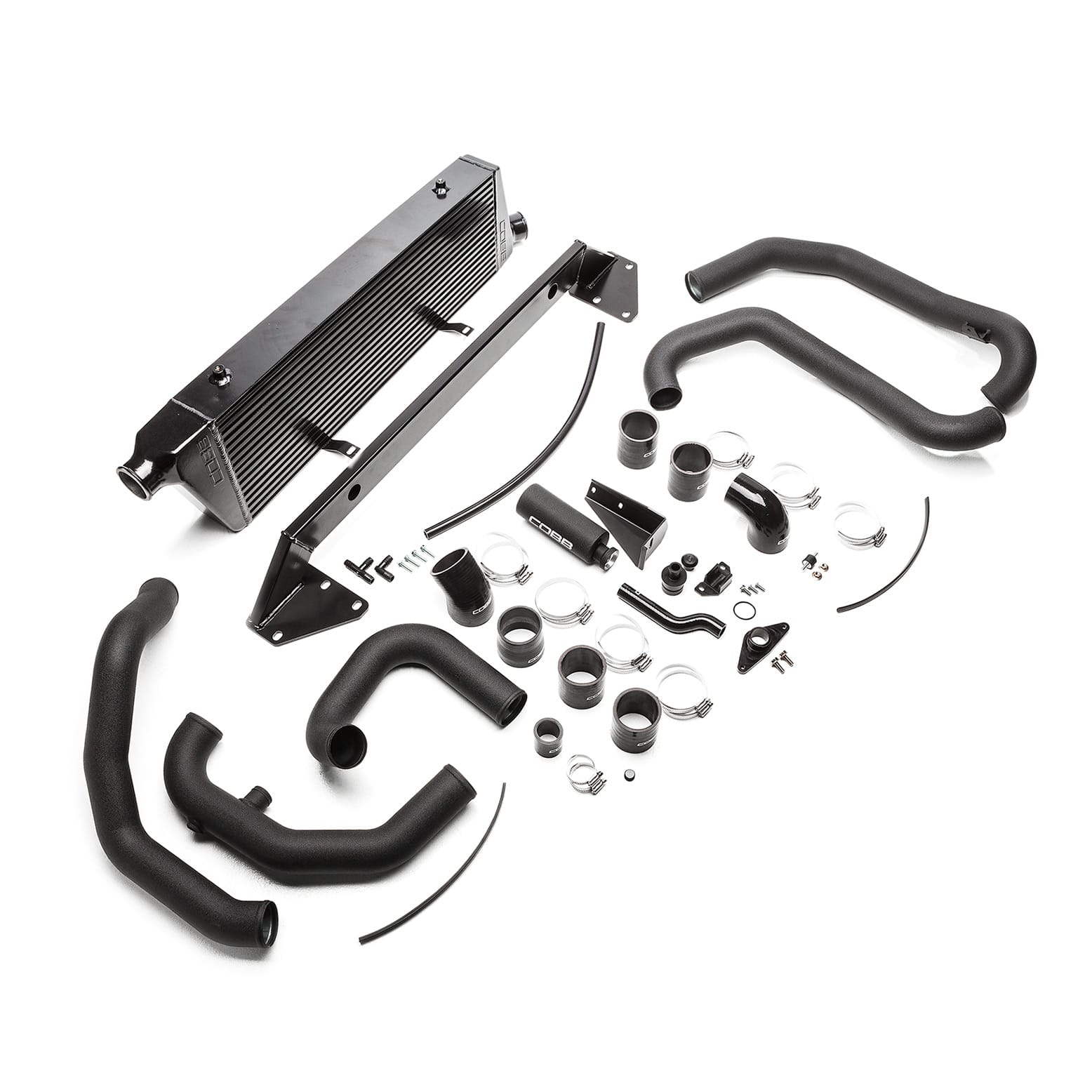

Black Front Mount Intercooler Core (712502-BK)
Front Mount Intercooler Hot Pipes (712500-H)
Front Mount Intercooler Cold Pipes (712500-C)
BPV Adapter Plate (812500)
Coolant Overflow Tank with Washer Fluid Relocation Kit (800630)
SF Airbox trimming template
CARB EO sticker (D-660-57)

Applications

Subaru WRX: GD/GG | 2004-2007 | Sedan and Wagon, Manual or Automatic, USDM
Subaru WRX STI: GD | 2004-2007 | Manual, USDM

Notes

50-state legal with CARB EO D-660-57, with D-660-22, D-660-219 and D-660-259 also listed by COBB
No Accessport or tune comes with the Black FMIC Kit for GD/GG, and converting to speed density needs an ECU retune
Trimming of the COBB SF Airbox is required, and other intake systems are unconfirmed by COBB

Frequently Asked Questions

What vehicles does the Black FMIC Kit for GD/GG fit? COBB confirms the Black FMIC Kit for GD/GG for USDM 2004-2007 Subaru WRX sedans and wagons with either transmission, plus the 2004-2007 WRX STI with its manual gearbox. Earlier 2002 and 2003 WRX models are not listed, so check with us first.
Can this kit be used on a car registered in California? Yes. COBB holds a California Air Resources Board Executive Order for the kit, shown as EO D-660-57 on the supplied sticker, so it is legal for sale and use on emissions-controlled road cars in every state when installed per the COBB guide.
Is an Accessport needed to run this intercooler? No. COBB does not state that the kit needs a tune. The IAT bung in the cold side pipe allows a later speed density conversion, and that change does require an ECU retune with an Accessport or custom tune, sold separately.
Does the kit clear aftermarket intakes? It is designed for the COBB SF Intake and Airbox, with the airbox trimmed to the template that ships in the box. Fit with any other intake is unconfirmed by COBB, so our team can help check clearance before you buy.
Is the Black kit different from the Silver kit in any way besides colour? No. Price, core dimensions, piping and relocation parts are identical. Only the intercooler core changes, supplied as part 712502-BK here and as 712502-SL in the Silver kit, so the choice comes down to the finish you prefer behind the bumper.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
