What is included with the Black FMIC Core for GD/GG?

Only the intercooler. The Black FMIC Core for GD/GG ships as the bar and plate core with its cast end tanks. Charge pipes, the BPV adapter plate and the coolant overflow and washer relocation parts are supplied only with the complete COBB front mount kit, so plan for piping before ordering the core.

Will it fit my 2006 WRX wagon with an automatic?

Yes. COBB lists every USDM 2004-2007 Impreza WRX sedan and wagon, with either the manual or automatic transmission, along with the manual 2004-2007 WRX STI. Earlier 2002 and 2003 cars and the 2008 and later generation are not listed, so check with our team if your vehicle falls outside those years.

Can I run this core on a California registered car?

No. COBB says the core is not legal for sale or use in California on any emission controlled motor vehicle, and CARB testing is still pending. Outside California, COBB states it is legal for on-street use in states that follow the Clean Air Act and the EPA Anti-Tampering Policy.

Is a custom tune required with this intercooler?

COBB does not state that the core needs a tune. Front mount conversions are often part of a bigger build with a new turbo or intake, though, and those parts usually require an updated calibration. An Accessport or custom tune is sold separately and should be budgeted for whenever the rest of the build needs one.

Why choose the black finish over the silver one?

It comes down to appearance. COBB uses the same 30 x 10.35 x 3.5 in bar and plate core and cast end tanks in both, at the same price. The black heat-dissipating coating on part 712502-BK is less visible through the bumper opening, while the silver version, part 712502-SL, stands out more.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

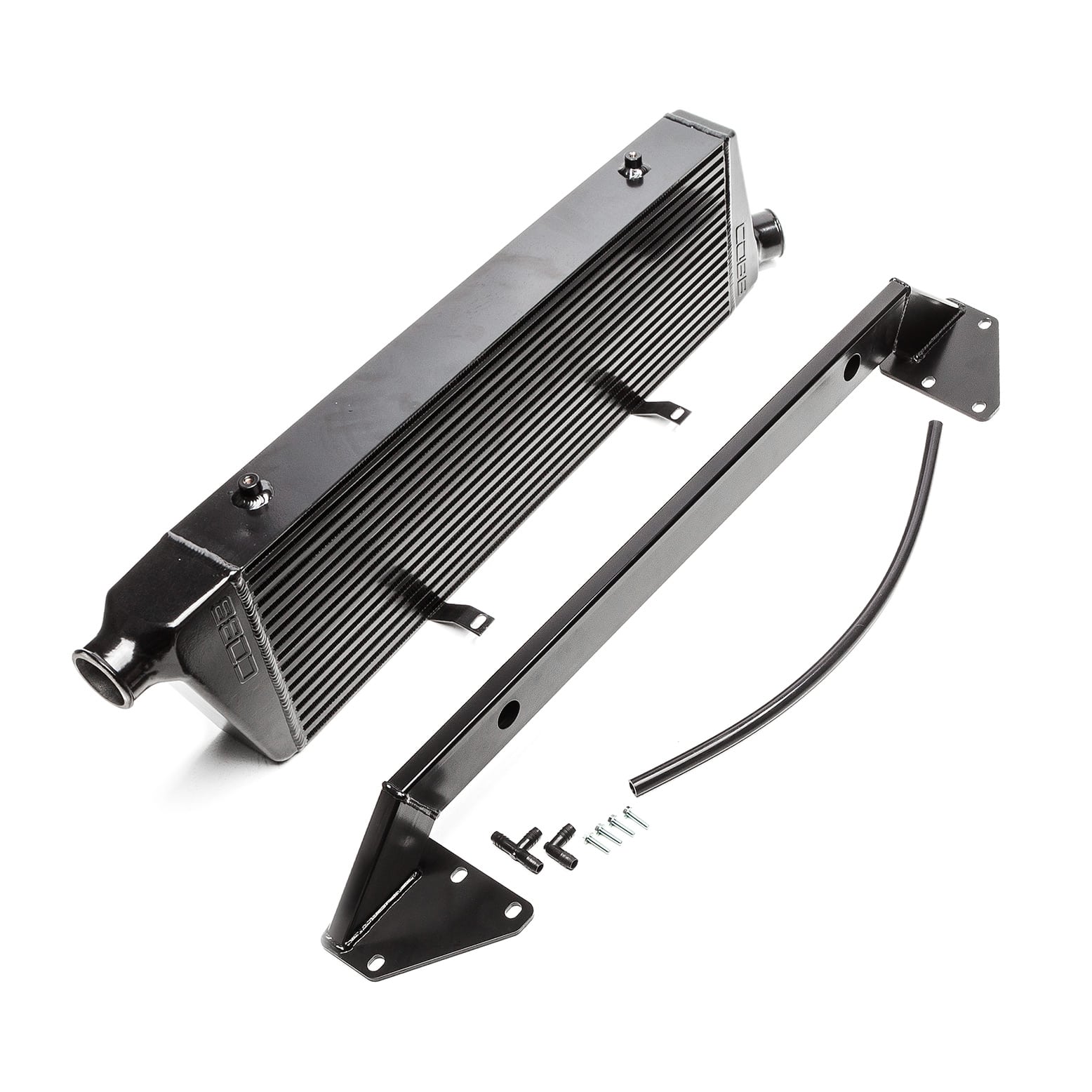

COBB Tuning Black FMIC Core for GD/GG Subaru WRX and WRX STI

COBB Tuning’s Black FMIC Core for GD/GG Subaru WRX and WRX STI gives a 2004-2007 car the cooling capacity of COBB’s front mount setup without the rest of the kit. The core is a US-made bar and plate unit, 30 x 10.35 x 3.5 in, finished in a black heat-dissipating coating. Buy it when the pipes are already on the car or a fabricator is building them around a non-standard turbo; for a first front mount conversion on an otherwise stock layout, the full kit saves time and guesswork.

Design and Purpose

COBB points to heat soak as the weakness of the stock arrangement. The top mount is compact and lives right above the engine, so under sustained boost it gets overwhelmed and intake temperatures rise, costing power. The Black FMIC Core for GD/GG is that core supplied by itself, with cast end tanks bearing the COBB logo, for builds where the plumbing is handled separately.

Features

Black heat-dissipating finish for a low-key look through the grille
30 x 10.35 x 3.5 in core of bar and plate design
Cast end tanks with the COBB logo
Identical core to the one in the COBB Black front mount kit, part 712500-BK

Specifications

Core Size: 30 x 10.35 x 3.5 in
Core Construction: Bar and plate
End Tanks: Cast, with COBB logo
Finish: Black heat-dissipating coating
Country of Origin: USA

Applications

Subaru WRX: GD/GG | 2004-2007 | Sedan and Wagon, Manual or Automatic, USDM
Subaru WRX STI: GD | 2004-2007 | Manual, USDM

Notes

Supplied as the core alone, without hot or cold charge pipes, a BPV adapter plate or coolant overflow relocation parts
Best suited to cars that already have front mount piping or will receive custom routed pipes
No Accessport or tune is included
Not legal for sale or use in California on any emission controlled motor vehicle; COBB reports CARB testing is pending

Frequently Asked Questions

What is included with the Black FMIC Core for GD/GG? Only the intercooler. The Black FMIC Core for GD/GG ships as the bar and plate core with its cast end tanks. Charge pipes, the BPV adapter plate and the coolant overflow and washer relocation parts are supplied only with the complete COBB front mount kit, so plan for piping before ordering the core.
Will it fit my 2006 WRX wagon with an automatic? Yes. COBB lists every USDM 2004-2007 Impreza WRX sedan and wagon, with either the manual or automatic transmission, along with the manual 2004-2007 WRX STI. Earlier 2002 and 2003 cars and the 2008 and later generation are not listed, so check with our team if your vehicle falls outside those years.
Can I run this core on a California registered car? No. COBB says the core is not legal for sale or use in California on any emission controlled motor vehicle, and CARB testing is still pending. Outside California, COBB states it is legal for on-street use in states that follow the Clean Air Act and the EPA Anti-Tampering Policy.
Is a custom tune required with this intercooler? COBB does not state that the core needs a tune. Front mount conversions are often part of a bigger build with a new turbo or intake, though, and those parts usually require an updated calibration. An Accessport or custom tune is sold separately and should be budgeted for whenever the rest of the build needs one.
Why choose the black finish over the silver one? It comes down to appearance. COBB uses the same 30 x 10.35 x 3.5 in bar and plate core and cast end tanks in both, at the same price. The black heat-dissipating coating on part 712502-BK is less visible through the bumper opening, while the silver version, part 712502-SL, stands out more.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
