Does the Boost Control Solenoid for CZ4A need a tune?

Yes. COBB states that tuning is required. Load the Off The Shelf map written for this solenoid on your Evolution X, or have a Protuner build a custom tune. No Accessport or tune comes in the box, so arrange the calibration before installing the part.

Is the COBB boost solenoid legal in California?

Yes. The Boost Control Solenoid for CZ4A carries California Air Resources Board Executive Order D-660-165, making it legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide. Keep the EO number with your records.

Which Evolution X models does it fit?

COBB confirms USDM fitment on the GSR manual and MR automatic for 2008 and 2010 through 2015, the MRT for 2010 through 2012, the GSR SE automatic for 2010 and 2011, and the 2015 Final Edition. Owners of other market cars should confirm the wiring first.

Will it work with an external wastegate?

Yes. The included instructions give routing for both internal and external wastegate configurations, so the solenoid can stay when a larger turbocharger or external gate goes on later. Optional 1/4 in nickel plated fittings are sold separately for setups that need larger lines.

How difficult is the installation?

Fairly simple. The solenoid mounts in the stock location on its aluminum bracket and plugs directly into the factory wiring harness, with no splicing. COBB includes stainless steel hardware, boost line, zip ties and illustrated instructions. Loading the correct map afterward matters as much as the hardware.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

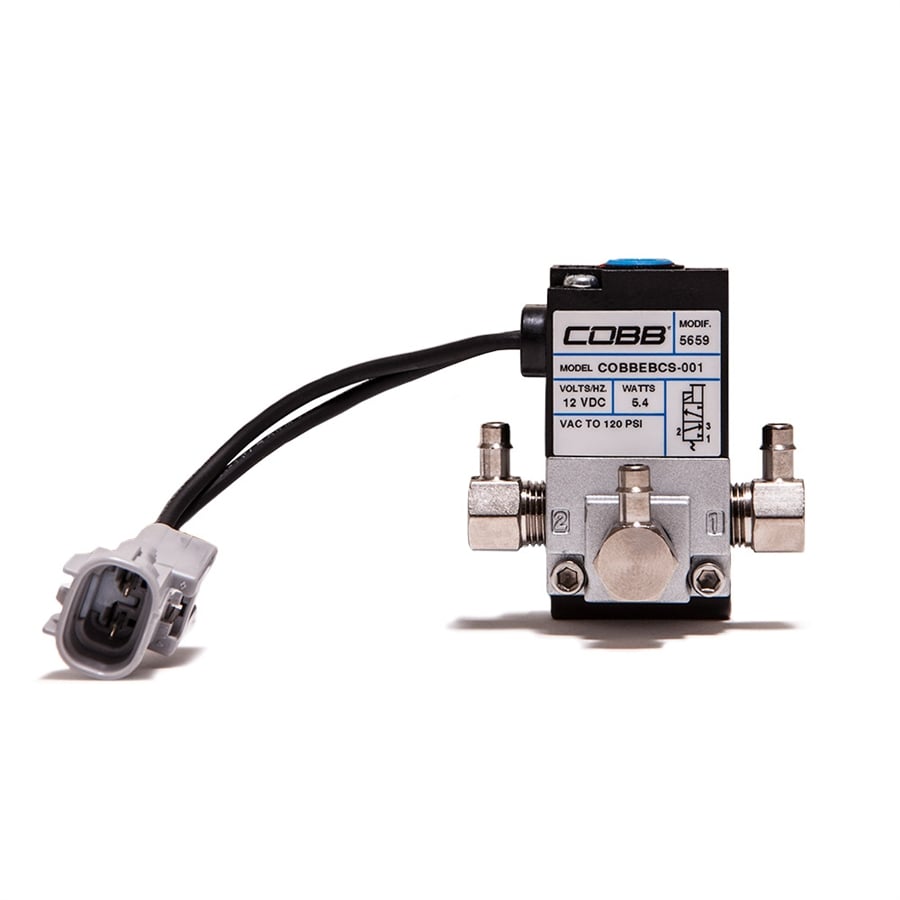

COBB Tuning 3-Port Boost Control Solenoid for CZ4A Mitsubishi Evolution X

COBB Tuning’s Boost Control Solenoid for CZ4A Evolution X models replaces the factory wastegate solenoid with a sealed three-port unit and carries CARB Executive Order D-660-165, so it stays legal in all 50 states. It suits any Evo X running a tuned map with raised boost and becomes close to essential once a larger turbocharger or external wastegate is planned. On a car left on the factory calibration it is overkill, because COBB requires its matching Off The Shelf map or a Protuner tune before driving.

Design and Performance

Factory boost control lets boost drift between pulls, which makes accurate tuning harder. The Boost Control Solenoid for CZ4A gives the ECU stable, repeatable control across an operating range of up to 120 psi, so one part suits a lightly tuned GSR and a big-power build alike. Viton spools and seals, an O-ring sealed override port and ultrasonically welded coil wires leave it waterproof and safe to wash.

Features

Three-port solenoid for precise wastegate control through the factory ECU
Rated for an operating range of up to 120 psi; made in the USA
Compact 1/8 in low-profile barbed fittings, nickel plated for corrosion resistance
Viton spools and seals throughout for long life
Waterproof construction with an O-ring sealed manual override port and grommet-sealed harness
Plug and play 18-gauge wiring harness
Custom aluminum BCS mount for the stock location

What’s Included

COBB 3-Port Boost Control Solenoid
Custom aluminum mounting bracket
Stainless steel mounting hardware
Boost line
Zip ties for routing the boost line

Applications

Mitsubishi Evolution X Final Edition: CZ4A | 2015 | Manual transmission | USDM
Mitsubishi Evolution X GSR: CZ4A | 2008, 2010-2015 | Manual transmission | USDM
Mitsubishi Evolution X GSR SE: CZ4A | 2010-2011 | Automatic transmission | USDM
Mitsubishi Evolution X MR: CZ4A | 2008, 2010-2015 | Automatic transmission | USDM
Mitsubishi Evolution X MRT: CZ4A | 2010-2012 | Automatic transmission | USDM

Notes

Tuning is required: load the matching COBB Off The Shelf map or a Protuner custom tune before driving
The Accessport and any tune are sold separately and are not included with this solenoid
Optional 1/4 in nickel plated fittings are sold separately
50-state legal with CARB EO D-660-165 when installed on the listed applications

Frequently Asked Questions

Does the Boost Control Solenoid for CZ4A need a tune? Yes. COBB states that tuning is required. Load the Off The Shelf map written for this solenoid on your Evolution X, or have a Protuner build a custom tune. No Accessport or tune comes in the box, so arrange the calibration before installing the part.
Is the COBB boost solenoid legal in California? Yes. The Boost Control Solenoid for CZ4A carries California Air Resources Board Executive Order D-660-165, making it legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide. Keep the EO number with your records.
Which Evolution X models does it fit? COBB confirms USDM fitment on the GSR manual and MR automatic for 2008 and 2010 through 2015, the MRT for 2010 through 2012, the GSR SE automatic for 2010 and 2011, and the 2015 Final Edition. Owners of other market cars should confirm the wiring first.
Will it work with an external wastegate? Yes. The included instructions give routing for both internal and external wastegate configurations, so the solenoid can stay when a larger turbocharger or external gate goes on later. Optional 1/4 in nickel plated fittings are sold separately for setups that need larger lines.
How difficult is the installation? Fairly simple. The solenoid mounts in the stock location on its aluminum bracket and plugs directly into the factory wiring harness, with no splicing. COBB includes stainless steel hardware, boost line, zip ties and illustrated instructions. Loading the correct map afterward matters as much as the hardware.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
