Does the 20G Turbocharger for GR/GV/VA STI models need a tune?

Yes. COBB states that installing the 20G Turbocharger for GR/GV/VA STI models requires custom tuning, and its guide has you flash a map with 20G support before first start. A COBB Stage Power Package map can be used only if your mechanical setup matches it.

Which Subaru STI models does this turbo fit?

It fits manual STI models from 2008 to 2021: the GR hatchback from 2008 to 2014, the GV sedan from 2011 to 2014, and the VA sedan from 2015 to 2021, including the 2018 Type RA and 2019 S209. COBB lists USDM and ADM cars.

Is the COBB 20G turbo legal in California?

Yes. COBB lists this turbocharger as legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the application guide, under CARB Executive Order numbers D-660-14 and D-660-46. Both EO numbers are printed on the COBB product record for this part.

What parts come in the box?

COBB supplies the turbocharger, turbo to uppipe and turbo to downpipe gaskets, two M8x1.25 bolts, two top mount intercooler spacers, three mounting studs with nuts, and a wastegate hose with clamps. The factory oil and coolant lines are reused, and no uppipe or downpipe is supplied.

How hard is the install, and what about oil priming?

COBB gives no difficulty rating but recommends a qualified technician if you are unsure. Its guide calls for an oil change and careful priming of the oiling system before start-up, and a priming failure is not covered by warranty. After a previous turbo failure, check the oil system for debris.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

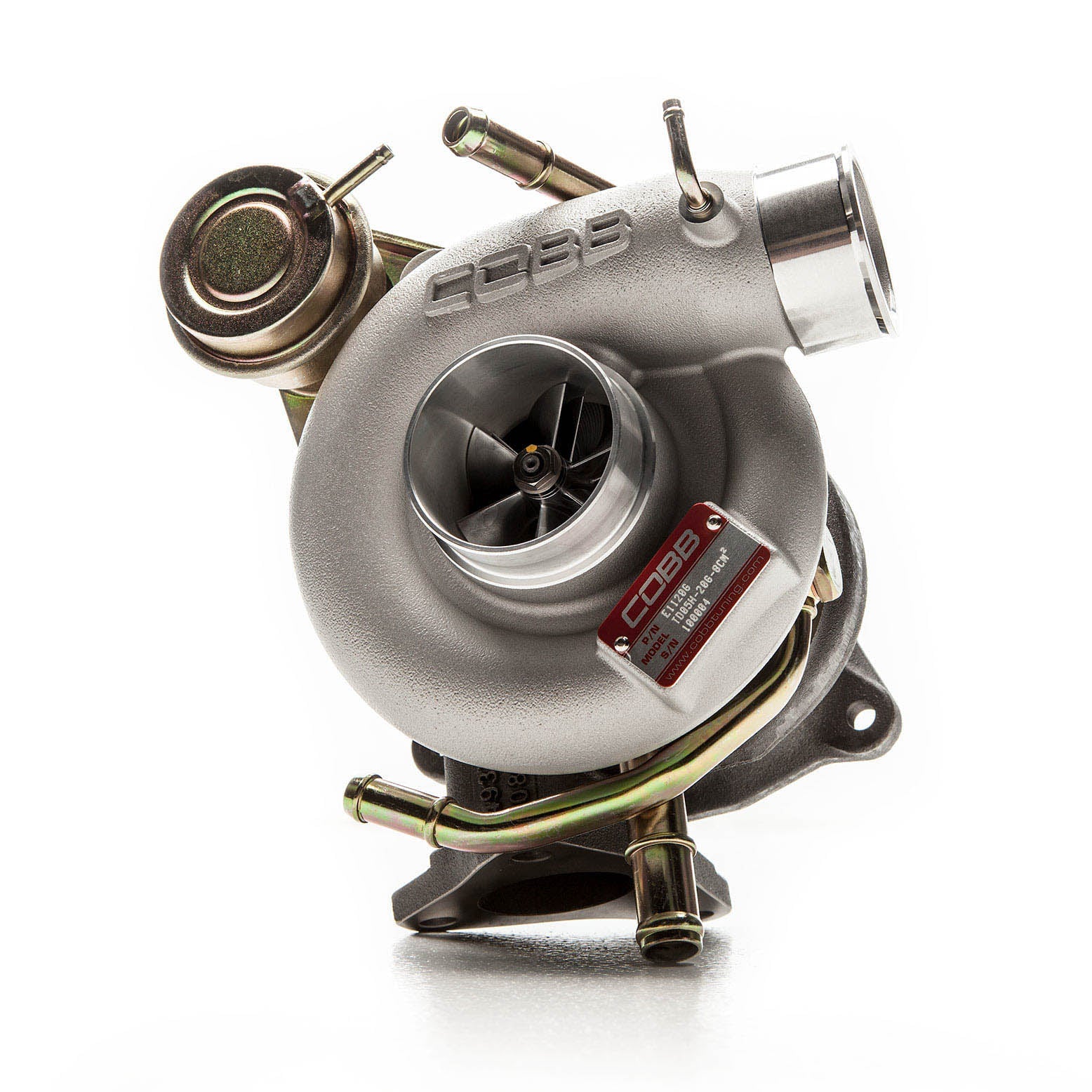

COBB Tuning 20G Turbocharger for GR/GV/VA Subaru WRX STI

COBB Tuning’s 20G Turbocharger for GR/GV/VA STI models is a TD05H-based single-scroll upgrade for owners who want more top-end pull from the STI without losing its low and mid-range response. A 68mm billet compressor wheel feeds an 8 sq cm turbine housing, COBB quotes the unit as capable of around 400 hp, and it carries CARB EO numbers for all 50 states. It suits a car that has outgrown the factory turbo; COBB requires custom tuning with it, so budget for the tune alongside the hardware.

Features

Billet 68mm compressor wheel in a 20G compressor housing
Single-scroll TD05H exhaust housing with 55.8mm turbine wheel
Offset compressor outlet for clearance at the drive by wire throttle connector
Sleeve bearing core with 360 degree thrust bearings and a modified oiling strategy for greater thrust capacity
Spacers and longer bolts give top mount intercooler clearance on 2015 and newer STI models
Made in the USA

Specifications

Compressor Inducer: 52.5mm
Compressor Exducer: 68mm
Turbine Inducer: 55.8mm
Turbine Exducer: 49.2mm
Turbine Housing: 8 sq cm
A/R: .57
Airflow: 640 CFM
Actuator: 1 bar

What’s Included

COBB 20G turbocharger
Turbo to uppipe gasket
Turbo to downpipe gasket
M8x1.25 bolts (x2)
Top mount intercooler spacers (x2)
Mounting studs with nuts (x3)
Wastegate hose with clamps

Applications

Subaru Impreza WRX STI Hatchback: GR | 2008-2014 | Manual transmission, USDM and ADM
Subaru Impreza WRX STI Sedan: GV | 2011-2014 | Manual transmission, USDM and ADM
Subaru WRX STI Sedan: VA | 2015-2021 | Manual transmission, USDM and ADM, including 2018 Type RA and 2019 S209

Notes

Custom tuning is required after installing the 20G Turbocharger for GR/GV/VA STI models; an Accessport and tune are not included
COBB does not state the test configuration behind its 400 hp figure, so treat it as a ceiling that depends on tune, fuel and supporting parts
No uppipe, downpipe or oil lines are included
The oiling system must be primed before first start-up, and a priming failure is not covered by warranty
50-state legal with CARB EO D-660-14 and D-660-46 when installed per the application guide

Frequently Asked Questions

Does the 20G Turbocharger for GR/GV/VA STI models need a tune? Yes. COBB states that installing the 20G Turbocharger for GR/GV/VA STI models requires custom tuning, and its guide has you flash a map with 20G support before first start. A COBB Stage Power Package map can be used only if your mechanical setup matches it.
Which Subaru STI models does this turbo fit? It fits manual STI models from 2008 to 2021: the GR hatchback from 2008 to 2014, the GV sedan from 2011 to 2014, and the VA sedan from 2015 to 2021, including the 2018 Type RA and 2019 S209. COBB lists USDM and ADM cars.
Is the COBB 20G turbo legal in California? Yes. COBB lists this turbocharger as legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the application guide, under CARB Executive Order numbers D-660-14 and D-660-46. Both EO numbers are printed on the COBB product record for this part.
What parts come in the box? COBB supplies the turbocharger, turbo to uppipe and turbo to downpipe gaskets, two M8x1.25 bolts, two top mount intercooler spacers, three mounting studs with nuts, and a wastegate hose with clamps. The factory oil and coolant lines are reused, and no uppipe or downpipe is supplied.
How hard is the install, and what about oil priming? COBB gives no difficulty rating but recommends a qualified technician if you are unsure. Its guide calls for an oil change and careful priming of the oiling system before start-up, and a priming failure is not covered by warranty. After a previous turbo failure, check the oil system for debris.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
