How is the Tremor Redline Silver Factory Intercooler package different from the front mount version?

The Tremor Redline Silver Factory Intercooler package uses a cast core that fits the factory location with no trimming. The front mount version carries a larger 24 x 14 x 3.5 inch core and needs minor trimming behind the grille. Both share the same Accessport, Redline intake and badge, so the choice comes down to core size against an untouched install.

Can this intercooler accept water or methanol injection?

Yes. COBB cast two flat sections into the intercooler housing. The top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection kit itself is not part of this package and would need its own tuning support.

Will it fit a standard F-150 or a Raptor?

No. COBB confirms the package only for the US market 2021 and 2022 F-150 Tremor, because the included Accessport is coded to that application. The PowerBoost hybrid is also excluded. Standard 3.5L trucks and the Raptor have separate COBB packages built around their own Accessport part numbers.

Is the package street legal in California?

Yes. COBB lists California Air Resources Board Executive Orders D-660-135, D-660-245 and D-660-289 for this package. That makes it legal for sale and use on emissions controlled vehicles in all 50 states, as long as each component is installed following the COBB application guide.

When is the snorkel bracket recommended?

COBB recommends adding the Intake Snorkel bracket, part 8G4625, on trucks that still run the factory intake snorkel,. Owners replacing the snorkel instead can choose the COBB Redline Carbon Fiber Air Scoop, which includes the bracket and replaces the factory snorkel outright.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Tremor Redline Silver Factory Intercooler Package with Carbon Fiber Intake for P702 Ford F-150

COBB Tuning’s Tremor Redline Silver Factory Intercooler package is a complete Stage 2 order for the 2021 to 2022 F-150 Tremor, pairing gloss carbon fiber under the hood with a silver cast aluminum intercooler that sits where the factory unit lived. Because that core mates to the OEM shutter shroud, the install leaves the grille and bumper alone. The Accessport V3 in the box handles both engine and transmission calibration, and the package is listed under CARB Executive Orders D-660-135, D-660-245 and D-660-289. Anyone wanting the biggest core COBB offers should look at the front mount kit.

Construction

Every carbon piece in the Redline intake is 3k tow 2×2 twill under gloss clear. For the intercooler in the Tremor Redline Silver Factory Intercooler package, COBB used computational fluid dynamics to shape the end tanks for even flow, and chamfered the outlet port to ease the transition into the throttle body tube.

Features

Silver TIG welded intercooler with about 70% more core volume than stock
10% more cooling surface area than the factory intercooler
Dual inlet filter with 165% more surface area than stock
3 inch intake tubing with the HydroCarbon Trap built in
TCM maps in Simulated Stock, OEM+ and Sport for shift and torque limit control
Datalogging with up to 10 hours of storage

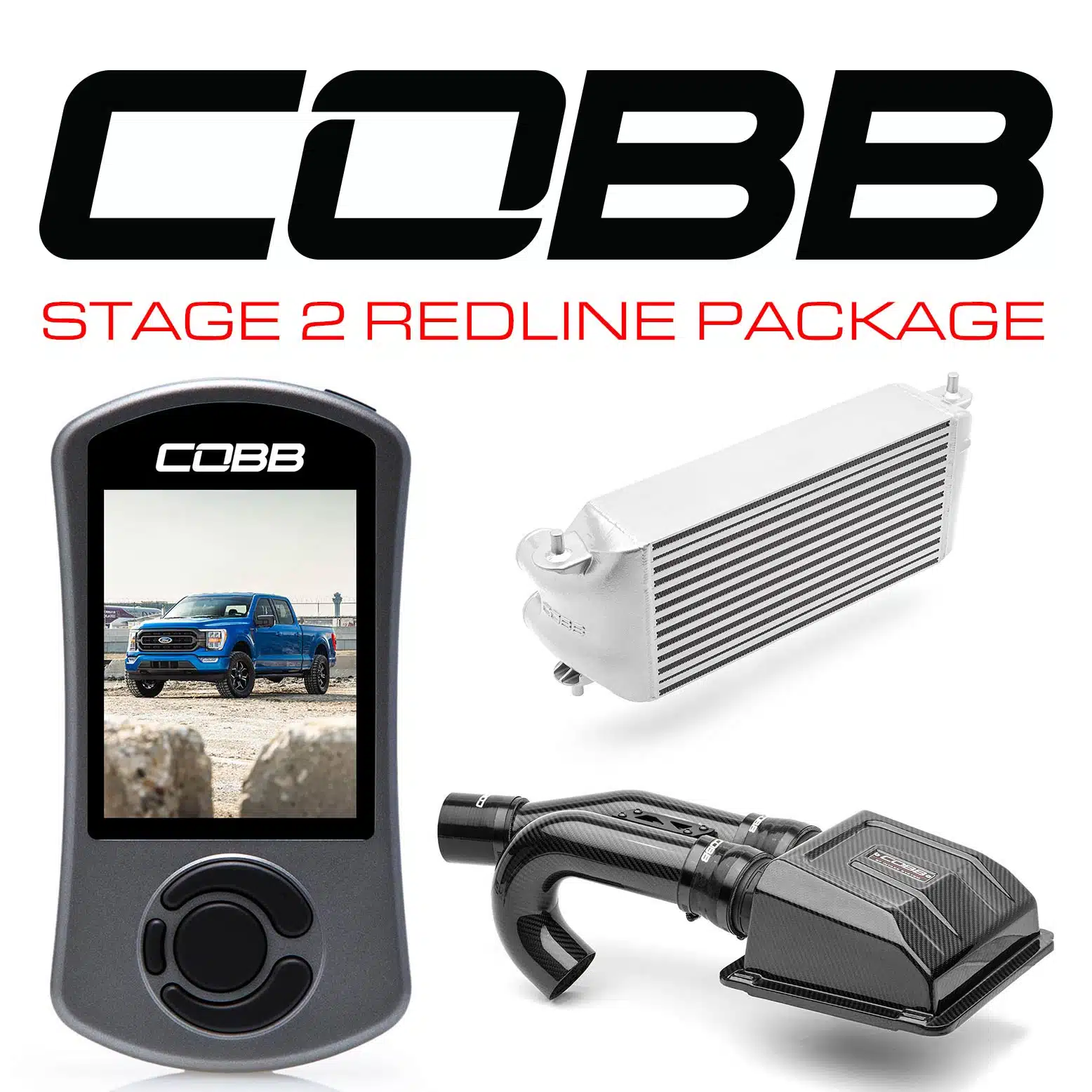

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-011)
Redline Carbon Fiber Intake System with HCT (7F4160)
Front Mount Intercooler, Silver, Factory Location (7F1527-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Tremor: P702 | 2021-2022 | USDM

Notes

50-state legal with CARB EO D-660-135, D-660-245 and D-660-289 when installed per the COBB application guide
Covers only the 2021-2022 F-150 Tremor, and PowerBoost hybrid models are not supported
Trucks still using the factory intake snorkel should add the Intake Snorkel bracket 8G4625, sold separately
Auto Start-Stop is disabled by default on every OTS map
COBB lists this package on backorder, shipping in roughly 2 to 3 weeks

Frequently Asked Questions

How is the Tremor Redline Silver Factory Intercooler package different from the front mount version? The Tremor Redline Silver Factory Intercooler package uses a cast core that fits the factory location with no trimming. The front mount version carries a larger 24 x 14 x 3.5 inch core and needs minor trimming behind the grille. Both share the same Accessport, Redline intake and badge, so the choice comes down to core size against an untouched install.
Can this intercooler accept water or methanol injection? Yes. COBB cast two flat sections into the intercooler housing. The top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection kit itself is not part of this package and would need its own tuning support.
Will it fit a standard F-150 or a Raptor? No. COBB confirms the package only for the US market 2021 and 2022 F-150 Tremor, because the included Accessport is coded to that application. The PowerBoost hybrid is also excluded. Standard 3.5L trucks and the Raptor have separate COBB packages built around their own Accessport part numbers.
Is the package street legal in California? Yes. COBB lists California Air Resources Board Executive Orders D-660-135, D-660-245 and D-660-289 for this package. That makes it legal for sale and use on emissions controlled vehicles in all 50 states, as long as each component is installed following the COBB application guide.
When is the snorkel bracket recommended? COBB recommends adding the Intake Snorkel bracket, part 8G4625, on trucks that still run the factory intake snorkel,. Owners replacing the snorkel instead can choose the COBB Redline Carbon Fiber Air Scoop, which includes the bracket and replaces the factory snorkel outright.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
