Does the Silver Factory Intercooler Package require cutting the bumper or grille?

No. The silver intercooler sits in the stock location and mates to the OEM shutter shroud, so no cutting, trimming or permanent modification is needed. That makes the Silver Factory Intercooler Package one of the most reversible Stage 2 options COBB lists for the 2024-2025 Raptor.

Is this package legal to run in California?

Yes. COBB lists CARB Executive Order D-660-307 for this Stage 2 package, allowing sale and use on emissions controlled vehicles in all 50 states when installed per the COBB application guide. The intake keeps a HydroCarbon Trap, the emissions element used on the factory intake.

Which maps come loaded on the Accessport?

Engine maps cover Stage 0, Stage 1 and Stage 2 on 91 or 93 octane, plus Performance Tow. Transmission maps are Simulated Stock, OEM+ and Sport, adjusting shift points, firmness, skip shift behavior and torque limits. Up to 100 maps can be stored, custom tunes included.

How does this differ from the COBB Stage 2 package with the front mount intercooler?

The front mount version uses a much larger 24 x 14 x 3.5 inch core and needs minor trimming on the back side of the grille. This package keeps the cooler in the factory position with no modification. Both share the Accessport, HCT intake, badge and CARB EO number.

Can water or methanol injection be added later?

Yes. COBB cast two flat sections into this intercooler for that purpose. The top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection system itself is sold separately and is not part of this package.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

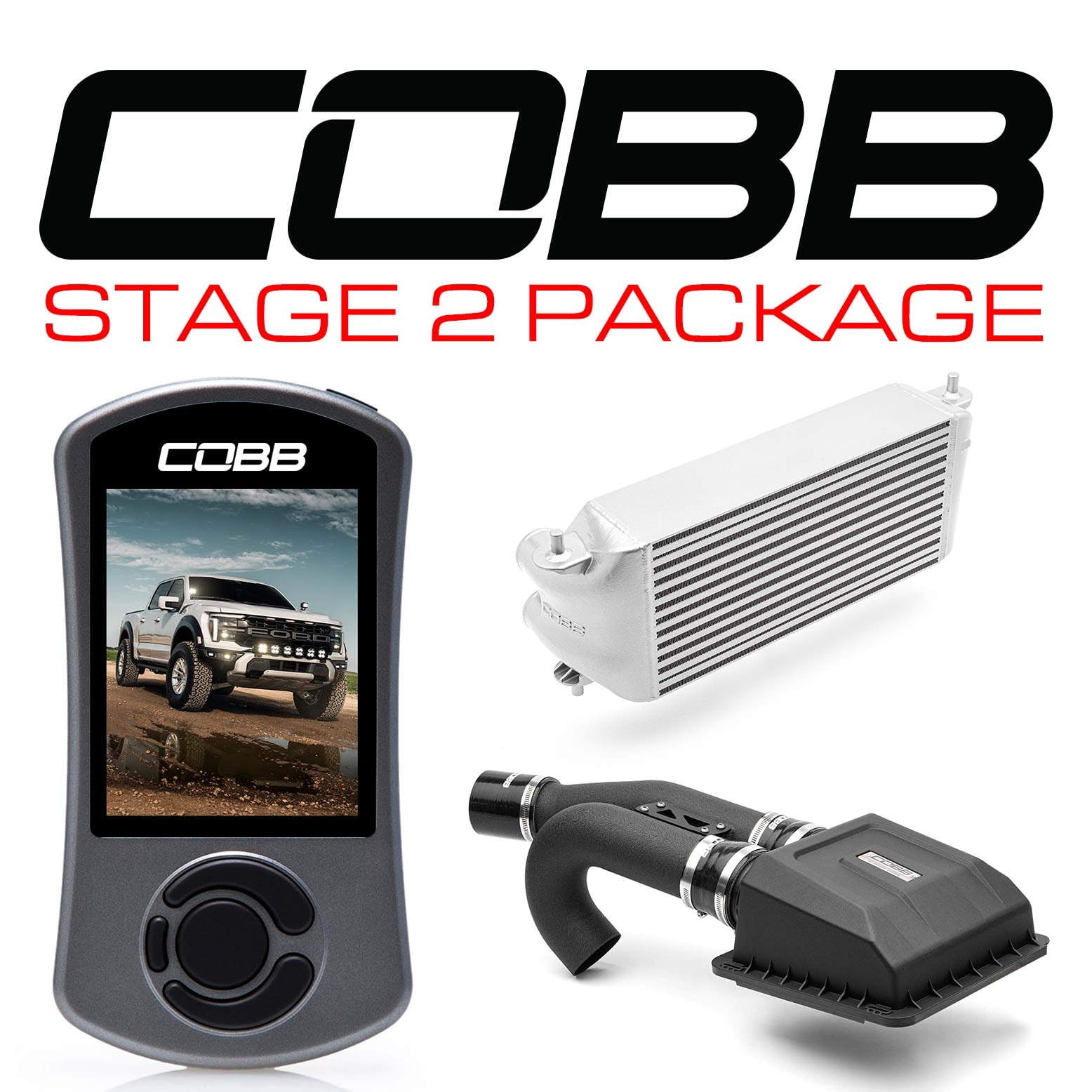

COBB Tuning Stage 2 Silver Factory Intercooler Package for P702 Ford F-150 Raptor (2024-2025)

COBB Tuning’s Silver Factory Intercooler Package brings the 2024-2025 Raptor to Stage 2 with parts that sit where Ford put the originals: a cast aluminum intercooler in the stock position, an aluminum intake with dual 3 in mandrel bent tubes, and an Accessport V3 that calibrates engine and transmission. COBB states the new core holds roughly 70 percent more volume than stock, yet it needs no cutting, and the package carries CARB EO D-660-307. It suits an owner who tows, wheels and commutes in one truck; anyone chasing the coolest possible charge air should look at the front mount version.

Design and Performance

COBB points to heat soak in the factory intercooler on EcoBoost F-150 trucks as the reason power fades on repeated pulls. The Silver Factory Intercooler Package answers with a TIG welded cast assembly whose end tanks were shaped using computational fluid dynamics, plus a chamfered outlet that eases charge air into the throttle body tube. The intake swaps the factory tubes for aluminum pipe and silicone couplers.

Features

Accessport V3 with ECU and TCM flashing, Stage 2 and Performance Tow maps
Silver cast aluminum intercooler with about 10 percent more cooling surface area than stock
Mates to the OEM shutter shroud with no cutting, trimming or permanent modification
Cast flats for a future water or methanol injection nozzle and drain
Aluminum intake with dual 3 in mandrel bent tubes and integrated HCT
COBB vehicle badge

What’s Included

Accessport for Ford Raptor 2024-2026 (AP3-FOR-016)
COBB Intake System with HCT for Ford F-150 EcoBoost Raptor 2021+ (7F2150)
COBB Front Mount Intercooler, Silver, Factory Location (7F1527-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2024-2025 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-307 when installed per the COBB application guide
COBB lists this package for USDM 2024-2025 Ford F-150 Raptor trucks only
All Off The Shelf maps disable Auto Start/Stop by default
The larger COBB front mount intercooler is sold in a separate package and is not included

Frequently Asked Questions

Does the Silver Factory Intercooler Package require cutting the bumper or grille? No. The silver intercooler sits in the stock location and mates to the OEM shutter shroud, so no cutting, trimming or permanent modification is needed. That makes the Silver Factory Intercooler Package one of the most reversible Stage 2 options COBB lists for the 2024-2025 Raptor.
Is this package legal to run in California? Yes. COBB lists CARB Executive Order D-660-307 for this Stage 2 package, allowing sale and use on emissions controlled vehicles in all 50 states when installed per the COBB application guide. The intake keeps a HydroCarbon Trap, the emissions element used on the factory intake.
Which maps come loaded on the Accessport? Engine maps cover Stage 0, Stage 1 and Stage 2 on 91 or 93 octane, plus Performance Tow. Transmission maps are Simulated Stock, OEM+ and Sport, adjusting shift points, firmness, skip shift behavior and torque limits. Up to 100 maps can be stored, custom tunes included.
How does this differ from the COBB Stage 2 package with the front mount intercooler? The front mount version uses a much larger 24 x 14 x 3.5 inch core and needs minor trimming on the back side of the grille. This package keeps the cooler in the factory position with no modification. Both share the Accessport, HCT intake, badge and CARB EO number.
Can water or methanol injection be added later? Yes. COBB cast two flat sections into this intercooler for that purpose. The top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection system itself is sold separately and is not part of this package.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
