What parts make up the Redline Black Front Mount Intercooler package?

There are four: the Accessport V3 with TCM flashing for 2021-2023 Raptor trucks, the COBB Redline Carbon Fiber Intake System with HCT, the black COBB front mount intercooler and a COBB vehicle badge. Snorkel bracket 8G4625 is sold separately for trucks keeping the factory snorkel.

Will the larger intercooler interfere with adaptive cruise control?

No. COBB states that the front mount intercooler keeps the factory Adaptive Cruise Control bracket when the truck uses its stock bumper. Installation does require minor trimming on the back side of the grille. Plan for that step, and confirm fitment on aftermarket bumpers.

Is this package CARB legal?

Yes. The Redline Black Front Mount Intercooler package is covered by CARB Executive Order numbers D-660-135, D-660-245 and D-660-289, according to COBB. That makes it legal for sale and use on emissions controlled 2021-2023 Raptor trucks in all 50 states when installed according to the COBB application guide.

Why choose the front mount over the factory location intercooler?

The front mount carries the biggest core COBB offers for this truck, measuring 24 x 14 x 3.5 inches, which keeps intake temperatures lower through repeated pulls, towing and hot weather. The factory location cooler avoids any trimming but is smaller. Hard working trucks benefit most.

What does Dynamic Pedal Control do on the Accessport?

It changes how quickly the throttle opens for a given pedal input. Settings run from -5 to 10, where each step below zero softens response by 20 percent and each step above zero sharpens it by 10 percent. Valet Mode, a separate setting, caps throttle near 25 percent.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Redline Black Front Mount Intercooler Package for P702 Ford F-150 Raptor

COBB Tuning’s Redline Black Front Mount Intercooler package is a full Stage 2 hardware set for the 2021-2023 Raptor, combining the gloss carbon fiber intake, the large black front mount with a 24 x 14 x 3.5 inch core, and an Accessport V3 that tunes engine and transmission alike. Expect minor trimming on the back of the grille during the intercooler install. Each part carries a CARB Executive Order, D-660-135, D-660-245 or D-660-289, so the kit is legal in all 50 states. It costs more than the factory location route, and the extra spend makes sense for owners who tow, run in summer heat or plan further upgrades.

Design and Performance

The front mount core adds a large amount of volume over stock, and COBB engineered it so that pressure drop stays minimal even at that size. Together, the Redline Black Front Mount Intercooler hardware and the Stage 2 maps on 91 or 93 octane form one matched setup.

Features

Accessport V3 with TCM flashing and transmission maps for shift points and firmness
Stage 2 engine calibrations for 91 or 93 octane and a Performance Tow map
Black front mount intercooler with a 24 x 14 x 3.5 inch core
Factory Adaptive Cruise Control bracket retained with the stock bumper
Gloss 3k 2×2 twill carbon fiber intake and airbox lid
Black phosphate coated 304 stainless steel hardware
COBB vehicle badge

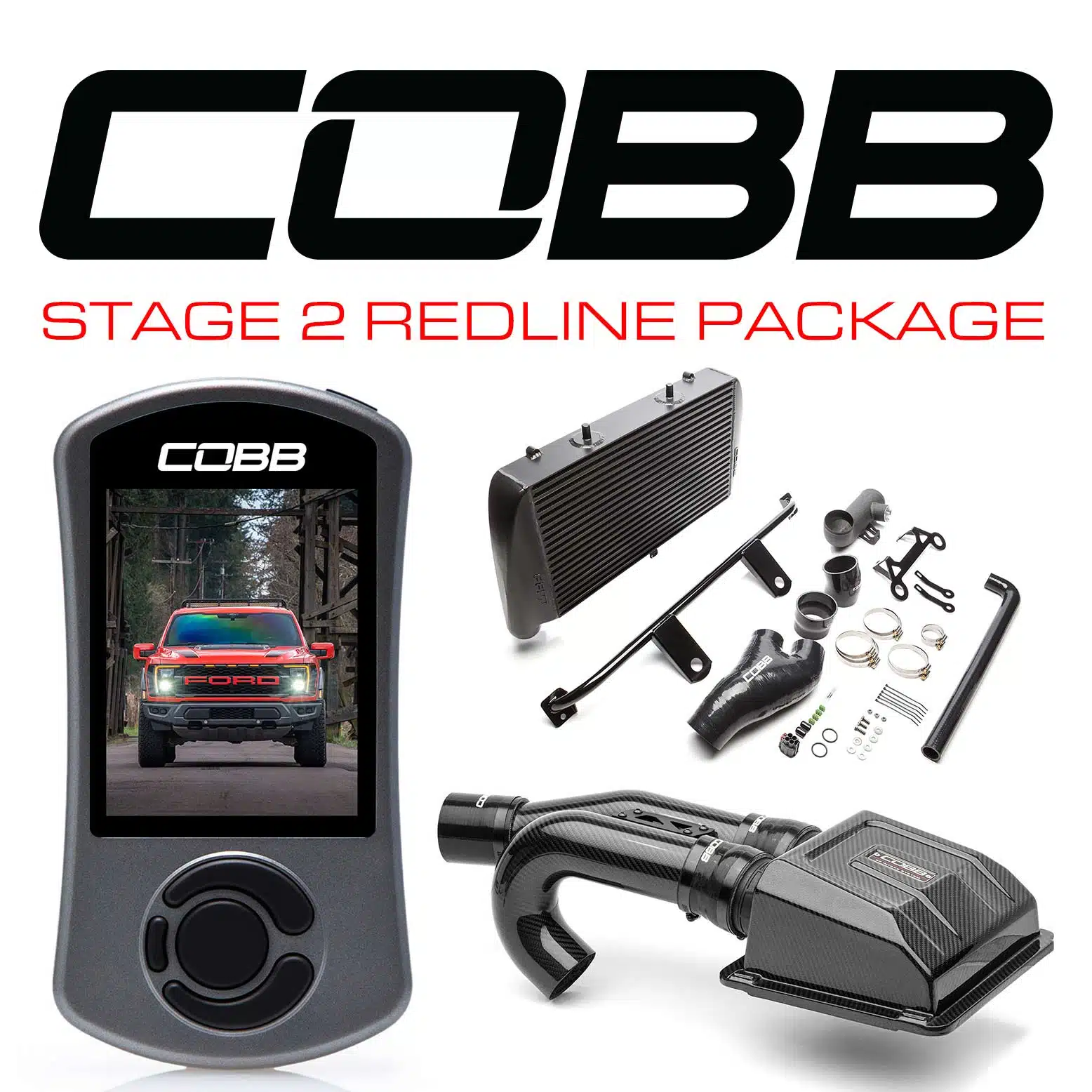

What’s Included

Accessport V3 with TCM Flashing for 2021-2023 Ford F-150 Raptor (AP3-FOR-010)
COBB Redline Carbon Fiber Intake System with HCT for Ford F-150 EcoBoost Raptor 2021+ (7F4160)
COBB Front Mount Intercooler, Black (7F2500-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2021-2023 | 3.5L EcoBoost | USDM

Notes

Does not include the COBB Intake Snorkel bracket 8G4625, which trucks keeping the factory intake snorkel need
The 8G4625 bracket also ships with the COBB Redline Carbon Fiber Air Scoop
Intercooler installation requires minor trimming on the back side of the grille
50-state legal with CARB EO D-660-135, D-660-245 and D-660-289
All Off The Shelf maps have Auto Start/Stop disabled by default

Frequently Asked Questions

What parts make up the Redline Black Front Mount Intercooler package? There are four: the Accessport V3 with TCM flashing for 2021-2023 Raptor trucks, the COBB Redline Carbon Fiber Intake System with HCT, the black COBB front mount intercooler and a COBB vehicle badge. Snorkel bracket 8G4625 is sold separately for trucks keeping the factory snorkel.
Will the larger intercooler interfere with adaptive cruise control? No. COBB states that the front mount intercooler keeps the factory Adaptive Cruise Control bracket when the truck uses its stock bumper. Installation does require minor trimming on the back side of the grille. Plan for that step, and confirm fitment on aftermarket bumpers.
Is this package CARB legal? Yes. The Redline Black Front Mount Intercooler package is covered by CARB Executive Order numbers D-660-135, D-660-245 and D-660-289, according to COBB. That makes it legal for sale and use on emissions controlled 2021-2023 Raptor trucks in all 50 states when installed according to the COBB application guide.
Why choose the front mount over the factory location intercooler? The front mount carries the biggest core COBB offers for this truck, measuring 24 x 14 x 3.5 inches, which keeps intake temperatures lower through repeated pulls, towing and hot weather. The factory location cooler avoids any trimming but is smaller. Hard working trucks benefit most.
What does Dynamic Pedal Control do on the Accessport? It changes how quickly the throttle opens for a given pedal input. Settings run from -5 to 10, where each step below zero softens response by 20 percent and each step above zero sharpens it by 10 percent. Valet Mode, a separate setting, caps throttle near 25 percent.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
