COBB Tuning Stage 2 Redline Black Factory Location Intercooler Package for P702 Ford F-150 Raptor

COBB Tuning’s Redline Black Factory Location Intercooler package is the bolt-in route to Stage 2 on the 2021-2023 Raptor, pairing a gloss carbon fiber intake with a cast aluminum intercooler that sits in the stock mounting position. The cooler mates to the OEM shutter shroud with no cutting, trimming or permanent modification, yet its core holds roughly 70 percent more volume than the factory part. An Accessport V3 with TCM flashing supplies the Stage 2 maps, and COBB lists CARB EO numbers D-660-135, D-660-245 and D-660-289. For owners who want exposed carbon under the hood without touching the grille, this is the sensible pick; drivers who tow hard in high heat may prefer the larger front mount core.

Construction

Every carbon fiber piece of the intake is laid up in 3k tow, 2×2 twill and finished in gloss clear. A carbon airbox lid replaces the stock cover and carries a reusable dual-inlet filter with 165 percent more surface area than stock. Black 4-ply silicone couplers and black clamps suit the Redline Black Factory Location Intercooler pairing.

Features

Accessport V3 that flashes both the ECU and the TCM
Stage 2 engine maps on 91 or 93 octane plus a Performance Tow map
Black cast aluminum, TIG welded intercooler in the factory location
Core volume about 70 percent larger, with 10 percent more cooling surface area
Redline intake in 3k 2×2 twill carbon fiber with a gloss clear coat
COBB vehicle badge

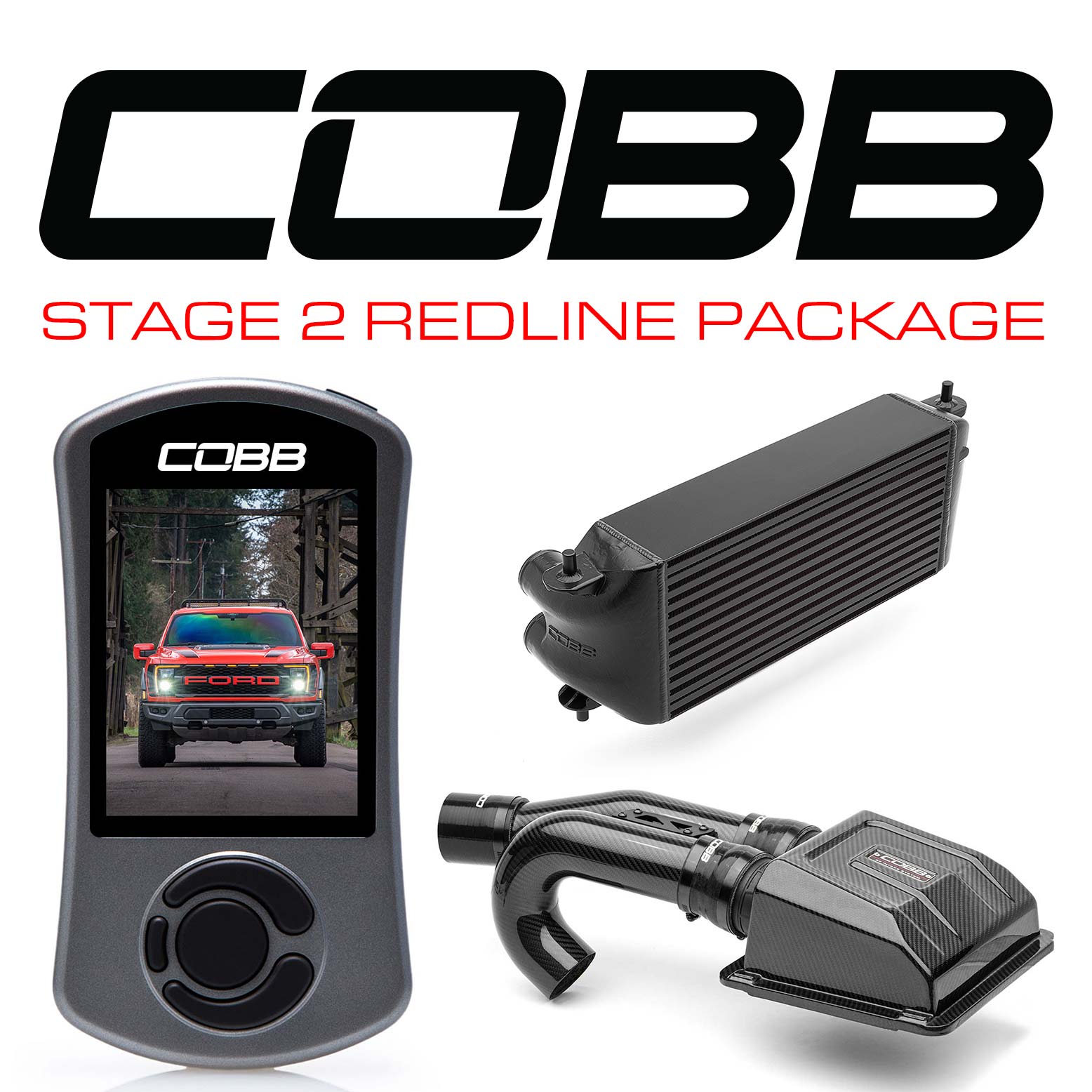

What’s Included

Accessport V3 with TCM Flashing for 2021-2023 Ford F-150 Raptor (AP3-FOR-010)
COBB Redline Carbon Fiber Intake System with HCT for Ford F-150 EcoBoost Raptor 2021+ (7F4160)
COBB Front Mount Intercooler, Black, Factory Location (7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2021-2023 | 3.5L EcoBoost | USDM

Notes

Does not include the COBB Intake Snorkel bracket 8G4625, which trucks keeping the factory intake snorkel need
The 8G4625 bracket also ships with the COBB Redline Carbon Fiber Air Scoop
50-state legal with CARB EO D-660-135, D-660-245 and D-660-289
All Off The Shelf maps have Auto Start/Stop disabled by default

Frequently Asked Questions

Does the Redline Black Factory Location Intercooler package require cutting? No. The black intercooler bolts into the stock position and mates snugly to the OEM shutter shroud, so COBB specifies no cutting, trimming or permanent modification. The carbon intake bolts in as well, making this the simpler Stage 2 route for the Raptor.
How does this differ from the COBB front mount intercooler packages? The front mount packages use a much larger 24 x 14 x 3.5 inch core that needs minor trimming on the back of the grille. This package keeps the factory location, trading some core size for an install with no permanent changes. Both share the same Accessport V3 and Stage 2 maps.
Is the package legal in all 50 states? Yes. COBB lists CARB Executive Order numbers D-660-135, D-660-245 and D-660-289 for the Redline Black Factory Location Intercooler package, so it is legal for sale and use on emissions controlled vehicles in every state. The HydroCarbon Trap stays, built into the intake tubing.
What filter does the carbon fiber intake use? It uses a reusable, dual-inlet high flow filter that COBB rates at 165 percent more surface area than the stock element. It sits under a carbon fiber airbox lid made for the Raptor and feeds 3 inch tubing with black 4-ply silicone couplers.
Can the intercooler support water methanol injection later? Yes. COBB cast two flat sections into the intercooler housing for owners planning that step. The top flat can be drilled and tapped to accept an injection nozzle, and the bottom flat can serve as a drain port. Injection hardware is not included.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
