What comes in the Front Mount Intercooler and Intake package?

The Front Mount Intercooler and Intake package contains the Accessport V3 for the F-150 Raptor and Limited, the COBB Intake System w/ HCT with dual 3 inch aluminum tubes, the black front mount intercooler with a 24 x 14 x 3.5 inch core, and a COBB vehicle badge.

Is this package CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package, so it may be sold and used on emissions controlled vehicles in all 50 states when installed according to the COBB application guide. That covers California street use.

Does the intercooler require trimming?

Yes. COBB notes minor trimming on the back side of the grille during installation. The factory Adaptive Cruise Control bracket is maintained when the stock bumper stays on the truck. Owners who prefer no trimming can choose the Stage 2 package with the factory location intercooler, which mates to the OEM shutter shroud.

How is this different from the no intake version?

This full package adds the COBB Intake System w/ HCT, which replaces the factory piping from the airbox with dual 3 inch mandrel bent aluminum tubes and silicone couplers. The Accessport V3, black front mount intercooler and badge are the same. The no intake version suits owners who plan to keep the factory intake.

Does it fit a 2021 or newer Raptor?

No. COBB confirms this package for USDM 2017 through 2020 F-150 Raptor trucks and USDM 2019 through 2020 F-150 Limited trucks, all P552 generation with the 3.5L EcoBoost. The P702 Raptor from 2021 onward uses a different Accessport and is outside the confirmed applications.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Power Package Black with Front Mount Intercooler and Intake for P552 Ford F-150 Raptor and Limited

COBB Tuning’s Front Mount Intercooler and Intake package is the full Stage 2 hardware set for the 2017-2020 Raptor and 2019-2020 F-150 Limited: the Accessport V3, the 7F2125 Intake System w/ HCT and the black 7F2500-BK front mount intercooler with its 24 x 14 x 3.5 inch core. It is covered by CARB EO D-660-217 and D-660-245, so a California owner can run it on the street. It makes the most sense for a stock truck; an owner who already has one of these parts will spend less buying the others separately.

Intake System

The intake replaces the factory piping from the airbox with dual 3 inch mandrel bent aluminum tubes, and custom silicone couplers give it an OEM-like fit. COBB designed it specifically for the second generation Raptor.

Front Mount Intercooler

In the Front Mount Intercooler and Intake package the intercooler core measures 24 inches wide, 14 inches tall and 3.5 inches thick, a large volume increase over stock with minimal pressure drop. Minor trimming on the back side of the grille is needed, and the factory Adaptive Cruise Control bracket stays when the stock bumper is used.

Features

Dual 3 inch mandrel bent aluminum intake tubes
Black front mount intercooler with a 24 x 14 x 3.5 in core
Accessport V3 datalogging of up to 10 hours
Uninstall option returns the ECU to its original calibration

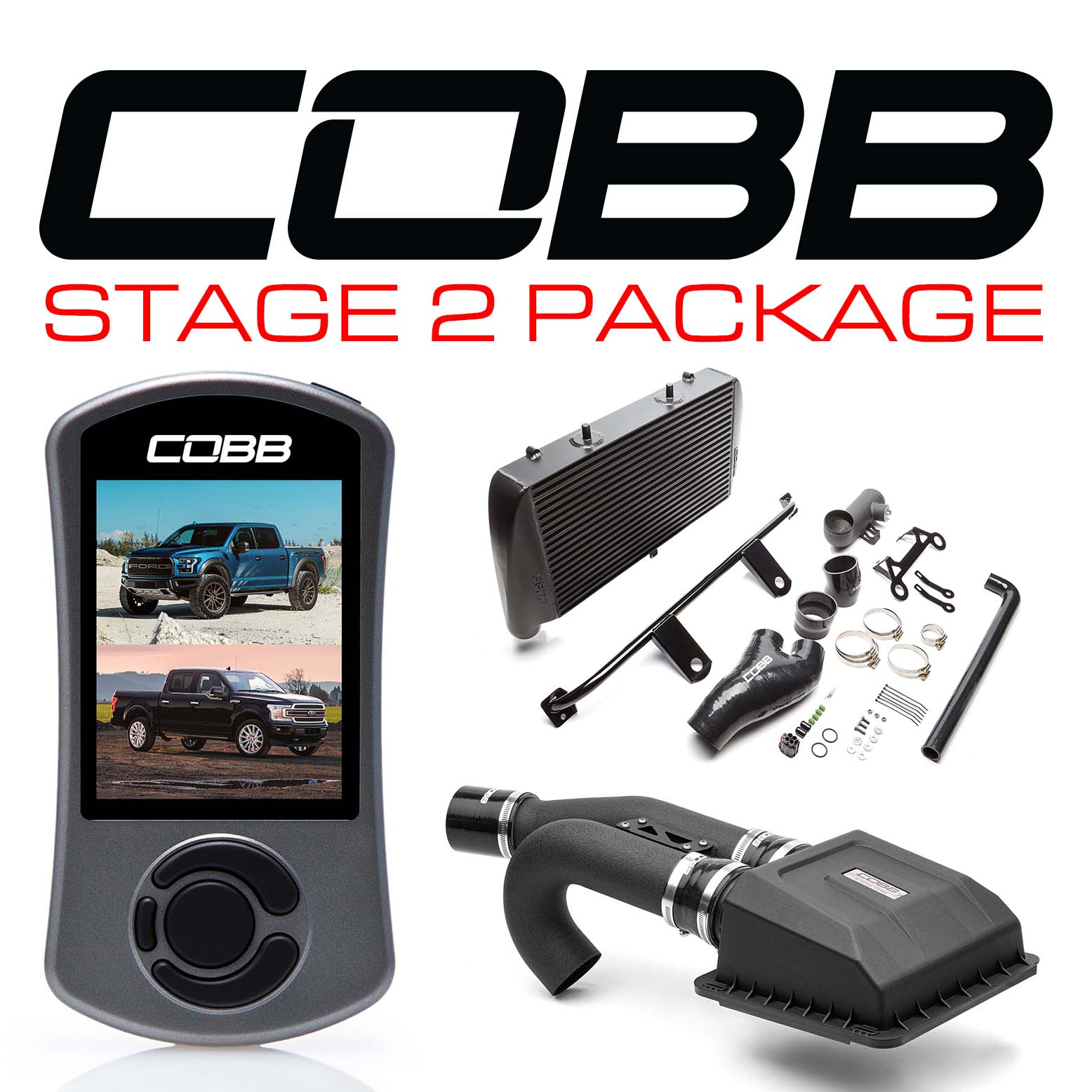

What’s Included

Accessport V3 (AP3-FOR-005)
Intake System w/ HCT (7F2125)
Front Mount Intercooler, Black (7F2500-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
Installation requires minor trimming on the back side of the grille
Transmission tuning is not included with this Accessport
Flex fuel hardware is not included; COBB offers CAN Flex Fuel versions of this package
Fits USDM 2017-2020 F-150 Raptor and 2019-2020 F-150 Limited trucks only

Frequently Asked Questions

What comes in the Front Mount Intercooler and Intake package? The Front Mount Intercooler and Intake package contains the Accessport V3 for the F-150 Raptor and Limited, the COBB Intake System w/ HCT with dual 3 inch aluminum tubes, the black front mount intercooler with a 24 x 14 x 3.5 inch core, and a COBB vehicle badge.
Is this package CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package, so it may be sold and used on emissions controlled vehicles in all 50 states when installed according to the COBB application guide. That covers California street use.
Does the intercooler require trimming? Yes. COBB notes minor trimming on the back side of the grille during installation. The factory Adaptive Cruise Control bracket is maintained when the stock bumper stays on the truck. Owners who prefer no trimming can choose the Stage 2 package with the factory location intercooler, which mates to the OEM shutter shroud.
How is this different from the no intake version? This full package adds the COBB Intake System w/ HCT, which replaces the factory piping from the airbox with dual 3 inch mandrel bent aluminum tubes and silicone couplers. The Accessport V3, black front mount intercooler and badge are the same. The no intake version suits owners who plan to keep the factory intake.
Does it fit a 2021 or newer Raptor? No. COBB confirms this package for USDM 2017 through 2020 F-150 Raptor trucks and USDM 2019 through 2020 F-150 Limited trucks, all P552 generation with the 3.5L EcoBoost. The P702 Raptor from 2021 onward uses a different Accessport and is outside the confirmed applications.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
