How does Stage 1 differ from this TCM Aluminum Intake Power Package?

The Stage 1 package uses a drop-in filter inside the stock airbox. The TCM Aluminum Intake Power Package replaces the airbox lid and factory piping with the COBB Intake System w/ HCT, which uses dual 3 inch aluminum tubes and a dual-inlet filter with 165 percent more surface area than stock. Both packages include the Accessport V3 with TCM Flashing.

Is the intake CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package, so the intake and Accessport are legal for sale and use on emissions controlled vehicles in all 50 states when used according to the COBB application guide. The HydroCarbon Trap built into the tubing retains factory vapor filtering.

Will the truck sound different?

Yes, a little. COBB notes that the larger filter and freer airflow produce a more audible turbo sound while boost builds at low RPM. The exhaust system is not touched by this package, so cruising volume from the tailpipes stays as it was from the factory.

Can I choose different transmission maps?

Yes. Three are included. Simulated Stock reproduces the factory transmission calibration from a 2019-2020 F-150 Limited, COBB OEM+ is a sporty but refined step up that keeps skip-shifting in Normal mode, and COBB Sport is the performance-first file with firmer shifts and higher shift points. On these model years the transmission map is chosen and flashed separately.

Does this package fit the 2020 F-150?

No. Although the intake by itself also fits 2020 trucks, this package is built around the Accessport for 2017-2019 F-150 3.5L EcoBoost models, where the ECU and TCM are separate. From 2020 Ford combined the two controllers, which requires a different Accessport.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

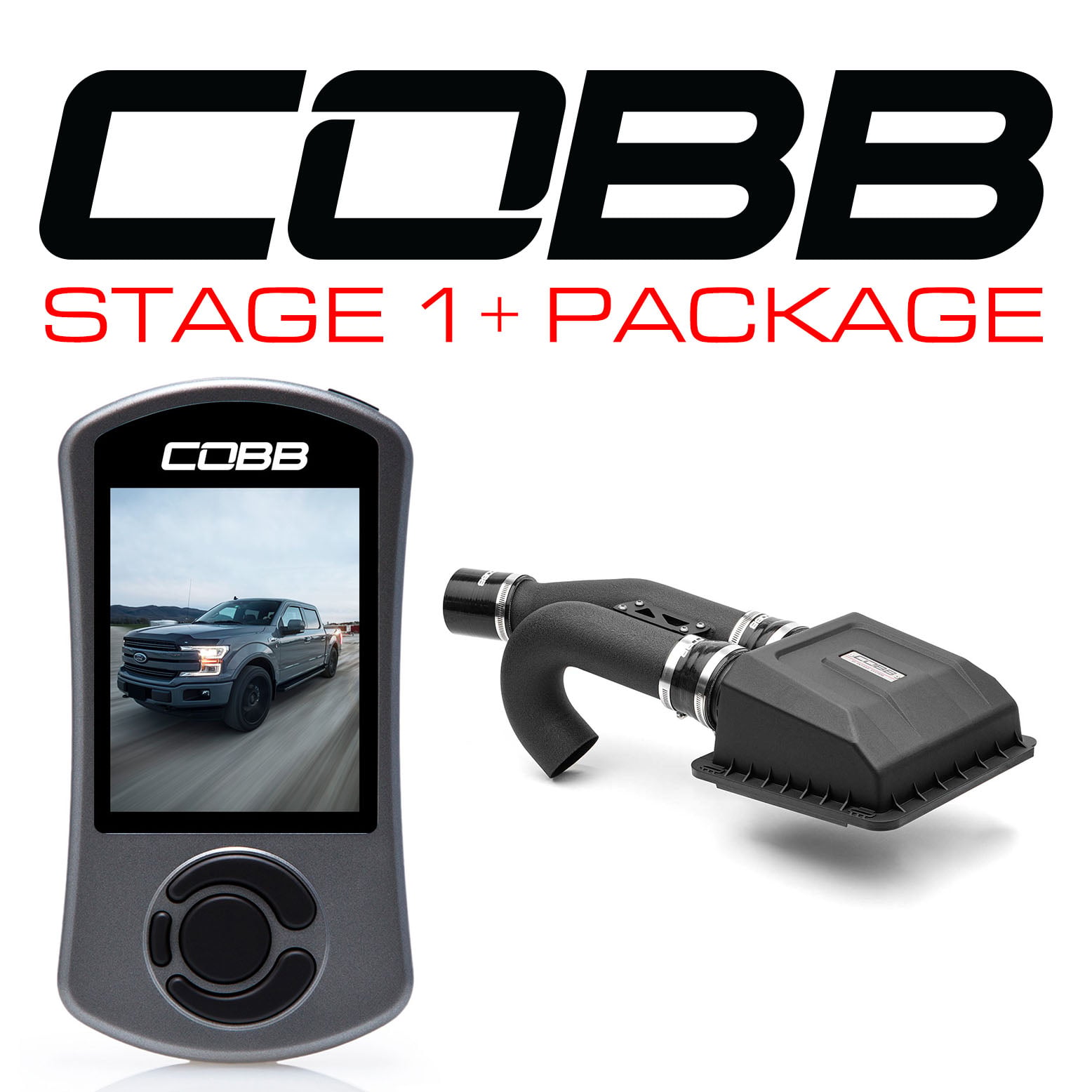

COBB Tuning Stage 1+ TCM Aluminum Intake Power Package for P552 Ford F-150 3.5L EcoBoost

COBB Tuning’s TCM Aluminum Intake Power Package replaces the factory intake on a 2017-2019 F-150 3.5L EcoBoost with dual 3 inch mandrel bent aluminum tubes and adds an Accessport that tunes the transmission as well as the engine. Both items are covered by CARB EO D-660-217 and D-660-245, so nothing here costs the truck its street legality in any state. It is the package we would point a daily-driven F-150 toward, with a natural path to Stage 2 when an intercooler joins later.

Intake and Shift Calibration

The COBB Intake System w/ HCT replaces factory piping with powder coated, mandrel bent aluminum tubes and custom silicone couplers, and HCT stands for HydroCarbon Trap, the emissions element built into the tubing. With the TCM Aluminum Intake Power Package, the Accessport also flashes the transmission controller separately from the ECU, as it must on 2017-2019 trucks. COBB OEM+ keeps skip-shifting in Normal mode while shifting later and firmer under power; COBB Sport removes most skip-shifting and raises shift points further; Simulated Stock restores the factory calibration taken from a 2019-2020 F-150 Limited.

Features

Accessport V3 with TCM Flashing and an in-cab mount
Off-the-shelf engine maps for 91 and 93 octane fuel
Dual 3 inch mandrel bent aluminum tubing, powder coated
Fiber reinforced composite airbox lid with foam seal
Dual-inlet filter with 165 percent more surface area than stock
Live gauges and datalogging

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-006-TCM)
Intake System w/ HCT (7F2125)

Applications

Ford F-150: P552 | 2017-2019 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when used per the COBB application guide
No intercooler is included; COBB pairs this intake with a factory location intercooler in its Stage 2 package
Fits USDM 2017-2019 F-150 3.5L EcoBoost trucks only; Raptor and Limited trucks use separate COBB packages
Installing the Accessport over anything other than factory or COBB software may result in ECU or TCU failure

Frequently Asked Questions

How does Stage 1 differ from this TCM Aluminum Intake Power Package? The Stage 1 package uses a drop-in filter inside the stock airbox. The TCM Aluminum Intake Power Package replaces the airbox lid and factory piping with the COBB Intake System w/ HCT, which uses dual 3 inch aluminum tubes and a dual-inlet filter with 165 percent more surface area than stock. Both packages include the Accessport V3 with TCM Flashing.
Is the intake CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package, so the intake and Accessport are legal for sale and use on emissions controlled vehicles in all 50 states when used according to the COBB application guide. The HydroCarbon Trap built into the tubing retains factory vapor filtering.
Will the truck sound different? Yes, a little. COBB notes that the larger filter and freer airflow produce a more audible turbo sound while boost builds at low RPM. The exhaust system is not touched by this package, so cruising volume from the tailpipes stays as it was from the factory.
Can I choose different transmission maps? Yes. Three are included. Simulated Stock reproduces the factory transmission calibration from a 2019-2020 F-150 Limited, COBB OEM+ is a sporty but refined step up that keeps skip-shifting in Normal mode, and COBB Sport is the performance-first file with firmer shifts and higher shift points. On these model years the transmission map is chosen and flashed separately.
Does this package fit the 2020 F-150? No. Although the intake by itself also fits 2020 trucks, this package is built around the Accessport for 2017-2019 F-150 3.5L EcoBoost models, where the ECU and TCM are separate. From 2020 Ford combined the two controllers, which requires a different Accessport.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
