Is the Silver Factory Intercooler Redline Package a direct fit?

Yes. The Silver Factory Intercooler Redline Package uses an intercooler that mates snugly to the OEM shutter shroud in the stock location, with no cutting, trimming or permanent modification. The Redline carbon airbox lid replaces the factory cover, and the Accessport flashes the ECU and TCM.

How does the silver Redline package compare with the black one?

COBB sells both with the same Redline carbon fiber intake, Accessport, vehicle badge and CARB EO D-660-307. The difference named in the product titles is the intercooler finish, silver here and black on the other. Choose by how the cooler will look beside the carbon.

Does it keep the truck emissions legal?

Yes. CARB Executive Order D-660-307 applies to this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states, including California, when installed per the COBB application guide. The intake integrates a HydroCarbon Trap to limit vapor release.

Does the Accessport come with towing maps?

Yes. Alongside Stage 0, Stage 1 and Stage 2 engine maps for 91 or 93 octane, the Accessport includes a Performance Tow map for both fuel grades. Transmission maps are Simulated Stock, OEM+ and Sport, and every Off The Shelf map disables Auto Start/Stop by default.

Can the stock parts be reinstalled later?

Yes. The Accessport Uninstall option returns the ECU to exactly its prior state, and because the intercooler installs without permanent modification, the factory parts can go back on. Keep the original intercooler, airbox lid and tubes if a return to stock is likely.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

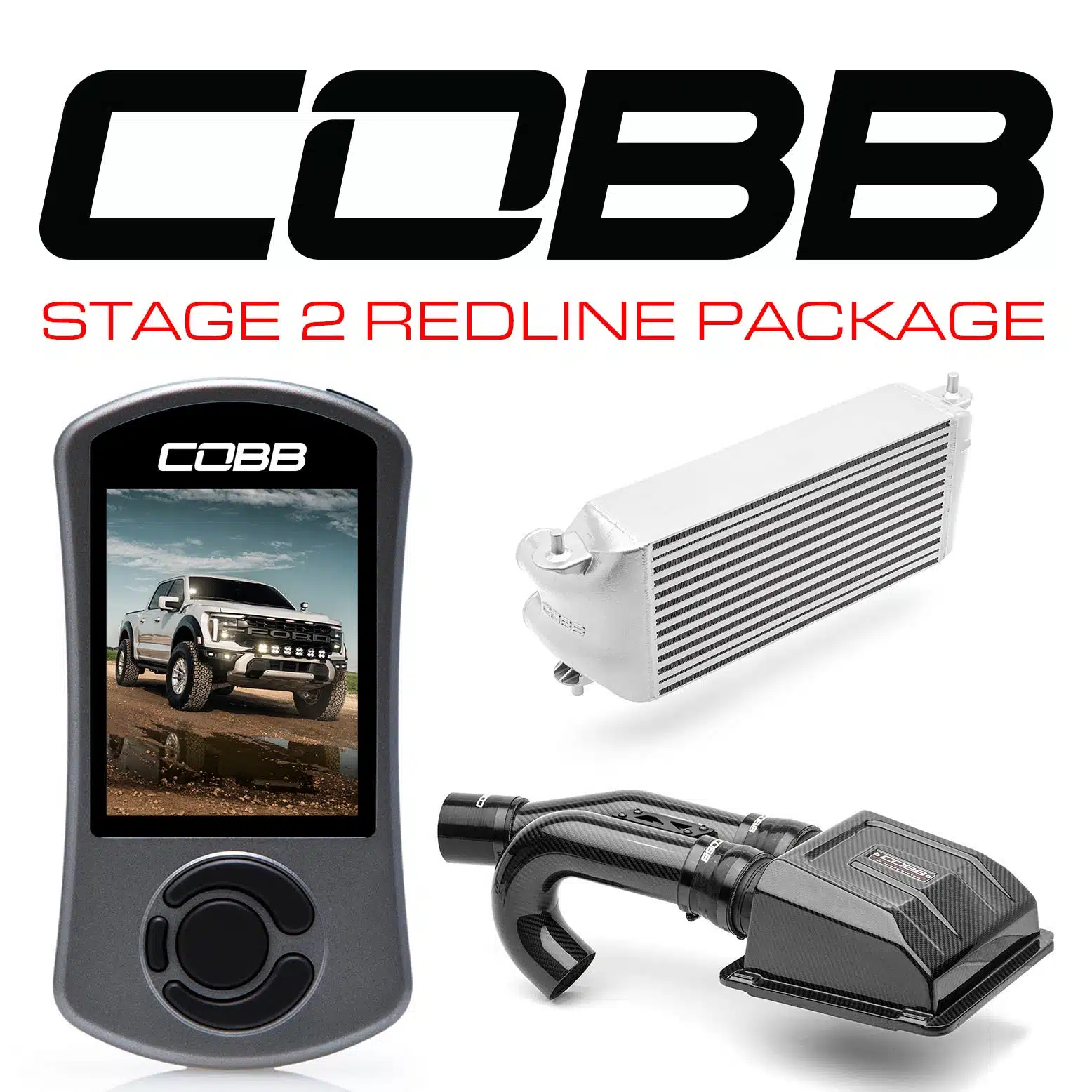

COBB Tuning Stage 2 Silver Factory Intercooler Redline Package for P702 Ford F-150 Raptor (2024-2025)

COBB Tuning’s Silver Factory Intercooler Redline Package mixes two finishes on purpose: silver cast aluminum on the cooler and gloss carbon weave under the hood. For the 2024-2025 Raptor it combines the Redline carbon fiber intake, a silver intercooler that takes the original mounting position with no trimming, and the Accessport V3 tuning the 3.5L EcoBoost and transmission. CARB EO D-660-307 keeps the truck legal in every state. Choose it if the silver contrast appeals, or step up to the front mount package if the truck tows near its limit.

Engineering Details

COBB used computational fluid dynamics to shape the end tanks for even flow and gave the outlet a large chamfer to ease the transition into the throttle body tube. Two cast flats allow a future water or methanol injection nozzle and drain. Within the Silver Factory Intercooler Redline Package, the intake adds 3 in tubing with an integrated HydroCarbon Trap and a carbon lid over a reusable filter.

Features

Silver TIG welded cast aluminum intercooler for the stock location
About 70 percent more core volume than the factory intercooler
Redline intake in 3k 2×2 twill carbon fiber with gloss clear coat
Black 4-ply silicone couplers with black e-coated stainless steel clamps
Accessport V3 with ECU and TCM flashing and Valet Mode
COBB vehicle badge

What’s Included

Accessport for Ford Raptor 2024-2026 (AP3-FOR-016)
COBB Redline Carbon Fiber Intake System with HCT for Ford F-150 EcoBoost Raptor 2021+ (7F4160)
COBB Front Mount Intercooler, Silver, Factory Location (7F1527-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2024-2025 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-307 when installed per the COBB application guide
COBB lists this package for USDM 2024-2025 Ford F-150 Raptor trucks only
All Off The Shelf maps disable Auto Start/Stop by default
Water or methanol injection hardware is not included; the cast flats only prepare the intercooler for it

Frequently Asked Questions

Is the Silver Factory Intercooler Redline Package a direct fit? Yes. The Silver Factory Intercooler Redline Package uses an intercooler that mates snugly to the OEM shutter shroud in the stock location, with no cutting, trimming or permanent modification. The Redline carbon airbox lid replaces the factory cover, and the Accessport flashes the ECU and TCM.
How does the silver Redline package compare with the black one? COBB sells both with the same Redline carbon fiber intake, Accessport, vehicle badge and CARB EO D-660-307. The difference named in the product titles is the intercooler finish, silver here and black on the other. Choose by how the cooler will look beside the carbon.
Does it keep the truck emissions legal? Yes. CARB Executive Order D-660-307 applies to this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states, including California, when installed per the COBB application guide. The intake integrates a HydroCarbon Trap to limit vapor release.
Does the Accessport come with towing maps? Yes. Alongside Stage 0, Stage 1 and Stage 2 engine maps for 91 or 93 octane, the Accessport includes a Performance Tow map for both fuel grades. Transmission maps are Simulated Stock, OEM+ and Sport, and every Off The Shelf map disables Auto Start/Stop by default.
Can the stock parts be reinstalled later? Yes. The Accessport Uninstall option returns the ECU to exactly its prior state, and because the intercooler installs without permanent modification, the factory parts can go back on. Keep the original intercooler, airbox lid and tubes if a return to stock is likely.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
