How much trimming does the Redline Front Mount Intercooler Package need?

COBB describes the Redline Front Mount Intercooler Package installation as straightforward, with minor trimming required on the back side of the grille. The factory Adaptive Cruise Control bracket is retained when the truck uses the stock bumper. Aftermarket bumper owners should confirm clearance with the bumper maker.

How is this different from the factory location package?

This version uses the 7F2500-BK front mount cooler with a 24 x 14 x 3.5 inch core and needs minor grille trimming. The factory location package uses the 7F1527-BK cast cooler, which mates to the OEM shutter shroud without cutting. Every other component is shared between the two.

Is it street legal in California?

No. COBB states this package is not legal for sale or use in California on any emission controlled motor vehicle while CARB testing is pending. It is sold for on-street use in states that accept the EPA Anti-Tampering Policy, based on COBB testing results.

What can the Accessport do on a Raptor beyond tuning?

It works as a gauge and datalogger, records up to 10 hours of data, measures 0-60 mph and quarter mile runs, and stores up to 100 maps. Raptor specific adjustments include a persistent Auto Start-Stop setting, Dynamic Pedal Control, Valet Mode and in-tank fuel pump control.

Which Raptor years does it fit?

COBB confirms the 2017, 2018, 2019 and 2020 Ford F-150 Raptor in USDM form with the 3.5L EcoBoost engine. The 2021 and later Raptor is not listed, and neither is the F-150 Limited, even though some individual components in the box list it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

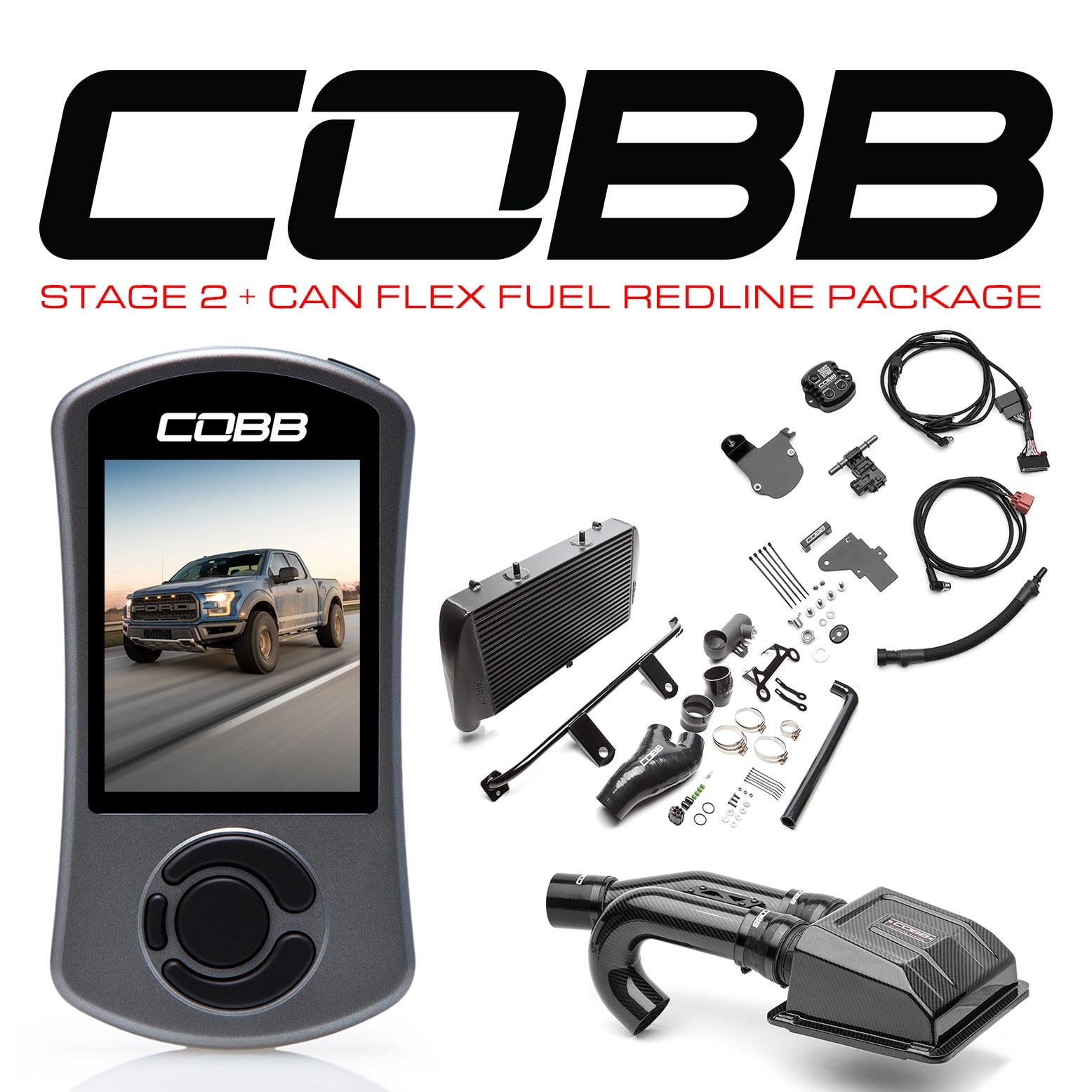

COBB Tuning Stage 2 CAN Flex Fuel Redline Front Mount Intercooler Package in Black for P552 Ford F-150 Raptor

COBB Tuning’s Redline Front Mount Intercooler Package is the larger-core route to Stage 2 on the 2017-2020 Raptor, built around the 7F2500-BK cooler with a 24 x 14 x 3.5 inch core. It pairs that cooler with the 7F3160 gloss carbon fiber intake, an Accessport V3, the 3F2650 CAN Flex Fuel Upgrade and a COBB Vehicle Badge. The trade is minor trimming on the back side of the grille, though the Adaptive Cruise Control bracket stays with the stock bumper. For zero modification, choose the factory location version; this kit is not road legal in California.

Cooling and Airflow

COBB sized the core well beyond the factory unit and reports minimal pressure drop despite the added volume. On the intake side, 3 inch tubing replaces the factory piping from the airbox and a carbon lid holds a reusable dual-inlet filter with 165 percent more surface area than stock. In the Redline Front Mount Intercooler Package, the CAN Gateway reports ethanol content to the ECU for the flex fuel calibration.

Features

Black front mount intercooler with a 24 in wide, 14 in tall, 3.5 in thick core
Carbon fiber intake pieces in 3k tow, 2×2 twill with a gloss clear coat
Reusable dual-inlet high flow filter seated in a carbon airbox lid
Accessport V3 gauges, datalogging and performance measuring for 0-60 mph, 60 foot and quarter mile

What’s Included

Accessport V3 for Ford F-150 EcoBoost Raptor (AP3-FOR-005)
Redline Carbon Fiber Intake System w/ HCT (7F3160)
Front Mount Intercooler, Black (7F2500-BK)
CAN Flex Fuel Upgrade (3F2650)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

Intercooler installation requires minor trimming on the back side of the grille
Not legal for sale or use in California on any emission controlled motor vehicle; COBB reports CARB testing is pending
Sold for on-street use in states that accept the EPA Anti-Tampering Policy, based on COBB emissions testing
Flex fuel operation requires an Accessport delivered flex fuel calibration
Confirmed for the 2017-2020 USDM Raptor only

Frequently Asked Questions

How much trimming does the Redline Front Mount Intercooler Package need? COBB describes the Redline Front Mount Intercooler Package installation as straightforward, with minor trimming required on the back side of the grille. The factory Adaptive Cruise Control bracket is retained when the truck uses the stock bumper. Aftermarket bumper owners should confirm clearance with the bumper maker.
How is this different from the factory location package? This version uses the 7F2500-BK front mount cooler with a 24 x 14 x 3.5 inch core and needs minor grille trimming. The factory location package uses the 7F1527-BK cast cooler, which mates to the OEM shutter shroud without cutting. Every other component is shared between the two.
Is it street legal in California? No. COBB states this package is not legal for sale or use in California on any emission controlled motor vehicle while CARB testing is pending. It is sold for on-street use in states that accept the EPA Anti-Tampering Policy, based on COBB testing results.
What can the Accessport do on a Raptor beyond tuning? It works as a gauge and datalogger, records up to 10 hours of data, measures 0-60 mph and quarter mile runs, and stores up to 100 maps. Raptor specific adjustments include a persistent Auto Start-Stop setting, Dynamic Pedal Control, Valet Mode and in-tank fuel pump control.
Which Raptor years does it fit? COBB confirms the 2017, 2018, 2019 and 2020 Ford F-150 Raptor in USDM form with the 3.5L EcoBoost engine. The 2021 and later Raptor is not listed, and neither is the F-150 Limited, even though some individual components in the box list it.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
