Which trucks does the Intercooler Kit in Silver fit?

The Intercooler Kit in Silver is listed for USDM trucks: the F-150 3.5L EcoBoost from 2017 to the current model year, the 2.7L EcoBoost for 2018 through 2023, the 2019 and 2020 Limited, the EcoBoost Raptor from 2017 and the Tremor from 2021. That spans the P552 and P702 generations.

Does the silver front mount intercooler need an Accessport?

An Accessport is not needed to bolt it on, but COBB designed the intercooler around Accessport V3 tuning, and that is where it delivers its gain. On the factory calibration it still lowers charge temperatures. Pairing it with a COBB off-the-shelf map or a custom tune is the intended setup, and the Accessport is a separate purchase.

Can I use this intercooler on a truck registered in California?

Yes. COBB holds seven CARB Executive Orders for this part, each listed in the Notes. It is legal for sale and use on emissions-controlled vehicles in all 50 states, California included, when it is fitted to a listed truck according to the application guide published by COBB.

Is any cutting needed during the install?

Yes, but only a little. The larger core requires minor trimming on the back side of the grille, and COBB otherwise describes the install as straightforward. The factory Adaptive Cruise Control bracket is reused when the stock bumper remains, so the radar sensor keeps its original mount.

How is the silver version different from the black one?

The finish is the only difference. Both versions share the 24 by 14 by 3.5 inch core, the fitment list and the CARB Executive Orders. Silver puts the core on show through the grille as a visible sign of the upgrade, while black is the quieter choice for a stock appearance.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

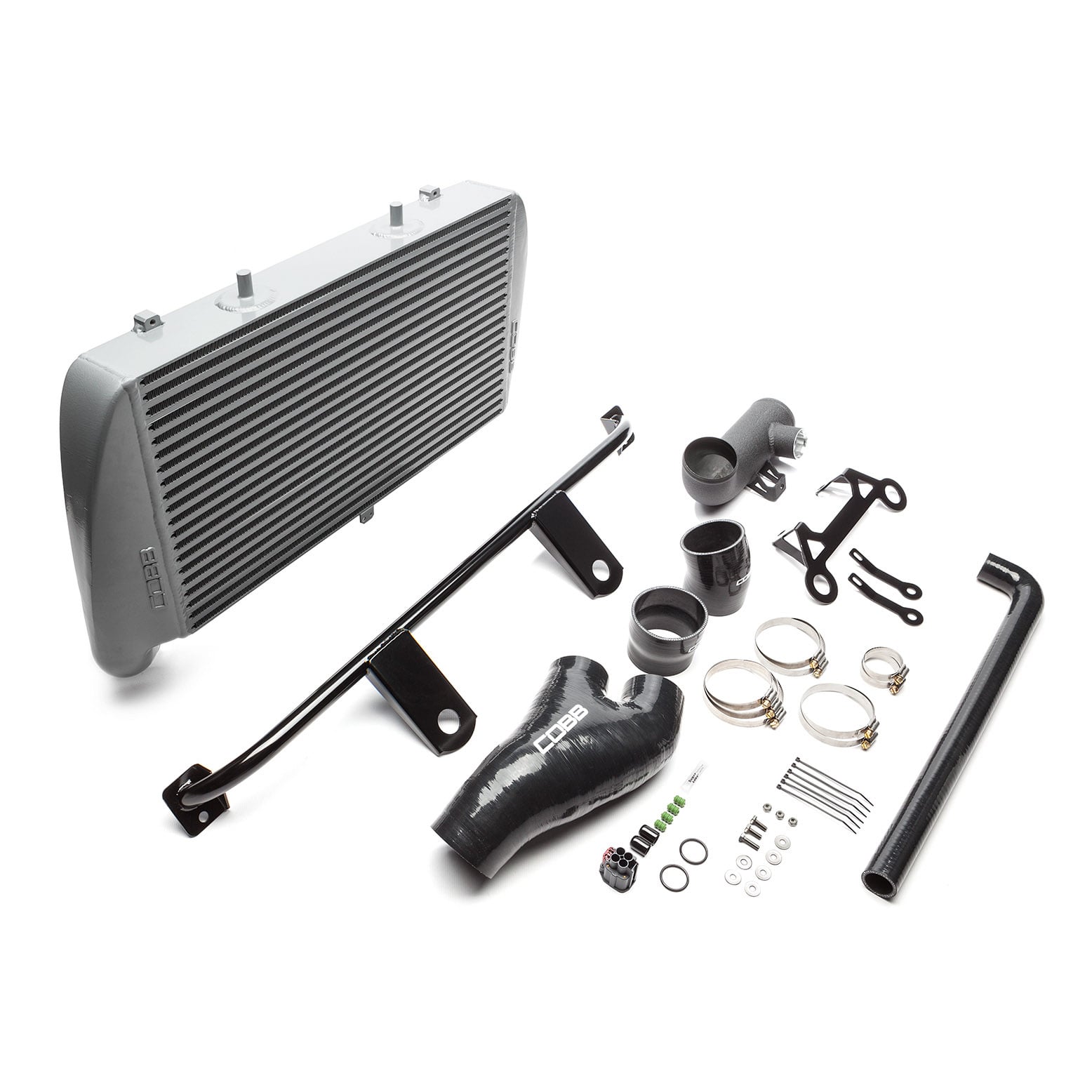

COBB Tuning Front Mount Intercooler Kit in Silver for P552 / P702 Ford F-150 and Raptor

COBB Tuning’s Front Mount Intercooler Kit in Silver is the version to pick when you want the upgrade seen: a 24 x 14 x 3.5 inch core that shows through the grille of an EcoBoost F-150 or Raptor. It adds substantial core volume over the Ford unit, and COBB engineered it so pressure drop stays minimal. CARB Executive Orders keep it street legal in every state. Paired with an Accessport it is one of the most sensible early modifications for these pickups; without tuning it cools well but leaves much of its potential unused.

Design and Performance

More core means a cooler path for the intake charge. The Intercooler Kit in Silver greatly increases volume over the original cooler while holding pressure loss low, which COBB credits with drawing the most from the factory turbochargers. Spare capacity lets the same core stay in place as later power upgrades arrive.

Features

Core measures 24 in wide, 14 in tall and 3.5 in thick
Substantially more core volume than the original Ford cooler
Low pressure drop despite the larger core
Silver finish that shows through the grille opening
Spare cooling capacity for future power upgrades
US country of origin

Applications

Ford F-150 2.7L: P552 | 2018-2020 | USDM
Ford F-150 2.7L: P702 | 2021-2023 | USDM
Ford F-150 3.5L: P552 | 2017-2020 | USDM
Ford F-150 3.5L: P702 | 2021-present | USDM
Ford F-150 Limited: P552 | 2019-2020 | USDM
Ford F-150 EcoBoost Raptor: P552 | 2017-2020 | USDM
Ford F-150 EcoBoost Raptor: P702 | 2021-present | USDM
Ford F-150 Tremor: P702 | 2021-present | USDM

Notes

No Accessport or tune is included; COBB intends this cooler to be run with Accessport tuning
50-state legal with CARB EO D-660-19, D-660-49, D-660-81, D-660-131, D-660-141, D-660-208 and D-660-263
The rear face of the grille must be trimmed slightly during installation
COBB confirms the Adaptive Cruise Control bracket carries over with the stock bumper only; aftermarket bumpers are not addressed

Frequently Asked Questions

Which trucks does the Intercooler Kit in Silver fit? The Intercooler Kit in Silver is listed for USDM trucks: the F-150 3.5L EcoBoost from 2017 to the current model year, the 2.7L EcoBoost for 2018 through 2023, the 2019 and 2020 Limited, the EcoBoost Raptor from 2017 and the Tremor from 2021. That spans the P552 and P702 generations.
Does the silver front mount intercooler need an Accessport? An Accessport is not needed to bolt it on, but COBB designed the intercooler around Accessport V3 tuning, and that is where it delivers its gain. On the factory calibration it still lowers charge temperatures. Pairing it with a COBB off-the-shelf map or a custom tune is the intended setup, and the Accessport is a separate purchase.
Can I use this intercooler on a truck registered in California? Yes. COBB holds seven CARB Executive Orders for this part, each listed in the Notes. It is legal for sale and use on emissions-controlled vehicles in all 50 states, California included, when it is fitted to a listed truck according to the application guide published by COBB.
Is any cutting needed during the install? Yes, but only a little. The larger core requires minor trimming on the back side of the grille, and COBB otherwise describes the install as straightforward. The factory Adaptive Cruise Control bracket is reused when the stock bumper remains, so the radar sensor keeps its original mount.
How is the silver version different from the black one? The finish is the only difference. Both versions share the 24 by 14 by 3.5 inch core, the fitment list and the CARB Executive Orders. Silver puts the core on show through the grille as a visible sign of the upgrade, while black is the quieter choice for a stock appearance.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
