What comes in the 3.5L Stage 2 Power Package?

The 3.5L Stage 2 Power Package contains four COBB items: the AP3-FOR-007 Accessport V3, the 7F2125 Intake System w/ HCT, the 7F1527-BK black factory location intercooler and the 800200 COBB vehicle badge. No exhaust parts are included, so the factory exhaust stays.

Do I need to cut the grille to fit the intercooler?

No. The intercooler sits in the factory location and mates snugly to the OEM shutter shroud, so COBB states that no cutting, trimming or permanent modification is required. The larger COBB front mount intercooler is the option that needs light modification.

Is the package legal in California?

Yes. COBB lists it as legal for sale and use on emissions controlled vehicles in all 50 states under California Air Resources Board Executive Order numbers shown as D-660-217 and D-660-245, provided every component is installed according to the COBB application guide. Keep the EO details with the truck for smog checks.

Can I add water or methanol injection later?

Yes, the intercooler is prepared for it. Two flat sections are cast into the housing: the top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection kit itself, and any tune changes it requires, are not part of this package.

Does it fit the 2020 Raptor or a 2019 F-150?

No. This part number is confirmed for the USDM 2020 F-150 with the 3.5L EcoBoost only. The Raptor and Limited, and 2017 to 2019 trucks with separate engine and transmission controllers, use different Accessports, so this package does not apply to them. Confirm the model year and trim before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

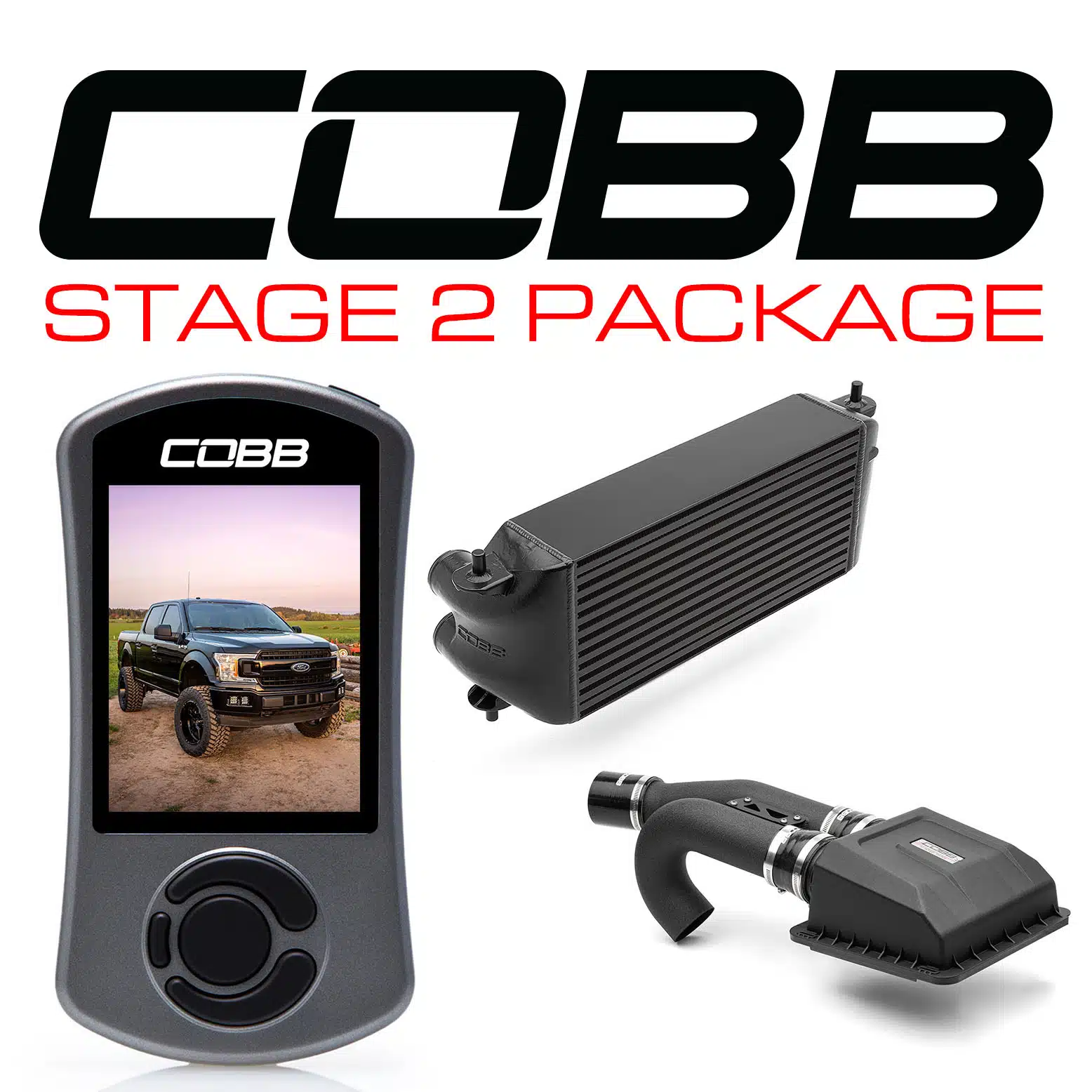

COBB Tuning 3.5L Stage 2 Power Package Black with Factory Location Intercooler for P552 Ford F-150 (2020)

COBB Tuning’s 3.5L Stage 2 Power Package is the full hardware step for a 2020 F-150 EcoBoost: an Accessport V3, the aluminum Intake System w/ HCT and a black cast aluminum intercooler that bolts into the factory location. The intercooler core has 70 percent more volume than stock and 10 percent more cooling surface, and it mates to the OEM shutter shroud with no cutting. COBB lists the package under CARB EO D-660-217 and D-660-245 for all 50 states. It suits a truck that tows or works hard, where COBB says the undersized factory intercooler heat soaks; a commuter may never need more than Stage 1+.

Intercooler Design

COBB designed this intercooler in house, using computational fluid dynamics to shape end tanks that spread flow evenly with no areas of significant turbulence. A large chamfer on the outlet eases the charge into the throttle body tube. In the 3.5L Stage 2 Power Package the cast aluminum, TIG welded core also carries two flat sections, one that can be drilled and tapped for a water or methanol injection nozzle and one that can serve as a drain port.

Features

Black cast aluminum, TIG welded intercooler for the factory location
Intercooler core with 70% greater volume and 10% more cooling surface area than stock
Dual 3 inch mandrel bent aluminum intake tubes with custom silicone couplers
Fiber reinforced airbox lid and dual inlet filter with 165% more surface area
Accessport V3 with Simulated Stock, COBB OEM+ and COBB Sport transmission files
Black COBB vehicle badge

What’s Included

Accessport V3 (AP3-FOR-007)
Intake System w/ HCT (7F2125)
Front Mount Intercooler, Black (Factory Location, 7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150: P552 | 2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed according to the COBB application guide
Fits the USDM 2020 F-150 3.5L EcoBoost only
Installing the Accessport over anything other than OEM or COBB software may result in ECU or TCU failure

Frequently Asked Questions

What comes in the 3.5L Stage 2 Power Package? The 3.5L Stage 2 Power Package contains four COBB items: the AP3-FOR-007 Accessport V3, the 7F2125 Intake System w/ HCT, the 7F1527-BK black factory location intercooler and the 800200 COBB vehicle badge. No exhaust parts are included, so the factory exhaust stays.
Do I need to cut the grille to fit the intercooler? No. The intercooler sits in the factory location and mates snugly to the OEM shutter shroud, so COBB states that no cutting, trimming or permanent modification is required. The larger COBB front mount intercooler is the option that needs light modification.
Is the package legal in California? Yes. COBB lists it as legal for sale and use on emissions controlled vehicles in all 50 states under California Air Resources Board Executive Order numbers shown as D-660-217 and D-660-245, provided every component is installed according to the COBB application guide. Keep the EO details with the truck for smog checks.
Can I add water or methanol injection later? Yes, the intercooler is prepared for it. Two flat sections are cast into the housing: the top flat can be drilled and tapped for an injection nozzle, and the bottom flat can serve as a drain port. The injection kit itself, and any tune changes it requires, are not part of this package.
Does it fit the 2020 Raptor or a 2019 F-150? No. This part number is confirmed for the USDM 2020 F-150 with the 3.5L EcoBoost only. The Raptor and Limited, and 2017 to 2019 trucks with separate engine and transmission controllers, use different Accessports, so this package does not apply to them. Confirm the model year and trim before ordering.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
