How does the 2024-2025 Stage 1+ Redline Package differ from the aluminum Stage 1+ kit?

Both bundles share the Accessport V3 with TCM flashing and a COBB badge. The 2024-2025 Stage 1+ Redline Package swaps the aluminum tubes for 3 inch carbon fiber tubing and adds a carbon airbox lid with a reusable dual-inlet filter. Choose it mainly for the finish and the larger filter surface area.

Is the carbon fiber intake legal in California?

Yes. This package carries CARB Executive Order D-660-307, so it is legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide. The HydroCarbon Trap built into the carbon tubing is the emissions component that COBB retained from the factory design.

What finish does the carbon fiber have?

COBB uses 3k tow carbon fiber laid in a 2x2 twill weave and finished with a gloss clear coat on every carbon piece in the system. The couplers are black 4-ply silicone and the clamps are black e-coated stainless steel, so the hardware matches the dark carbon instead of standing out against it.

Is the filter reusable?

Yes. COBB describes the dual-inlet high flow filter as reusable, and it offers 165 percent more surface area than the factory filter. It mounts beneath the carbon airbox lid that replaces the stock cover. Follow the COBB service guidance for cleaning.

Does the package include an intercooler or a tune?

It includes the tune but no intercooler. The Accessport V3 carries Off The Shelf engine maps, a Performance Tow map and three transmission maps, and it can hold a custom tune from a COBB tuner. An intercooler comes only with the Stage 2 packages for this truck.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

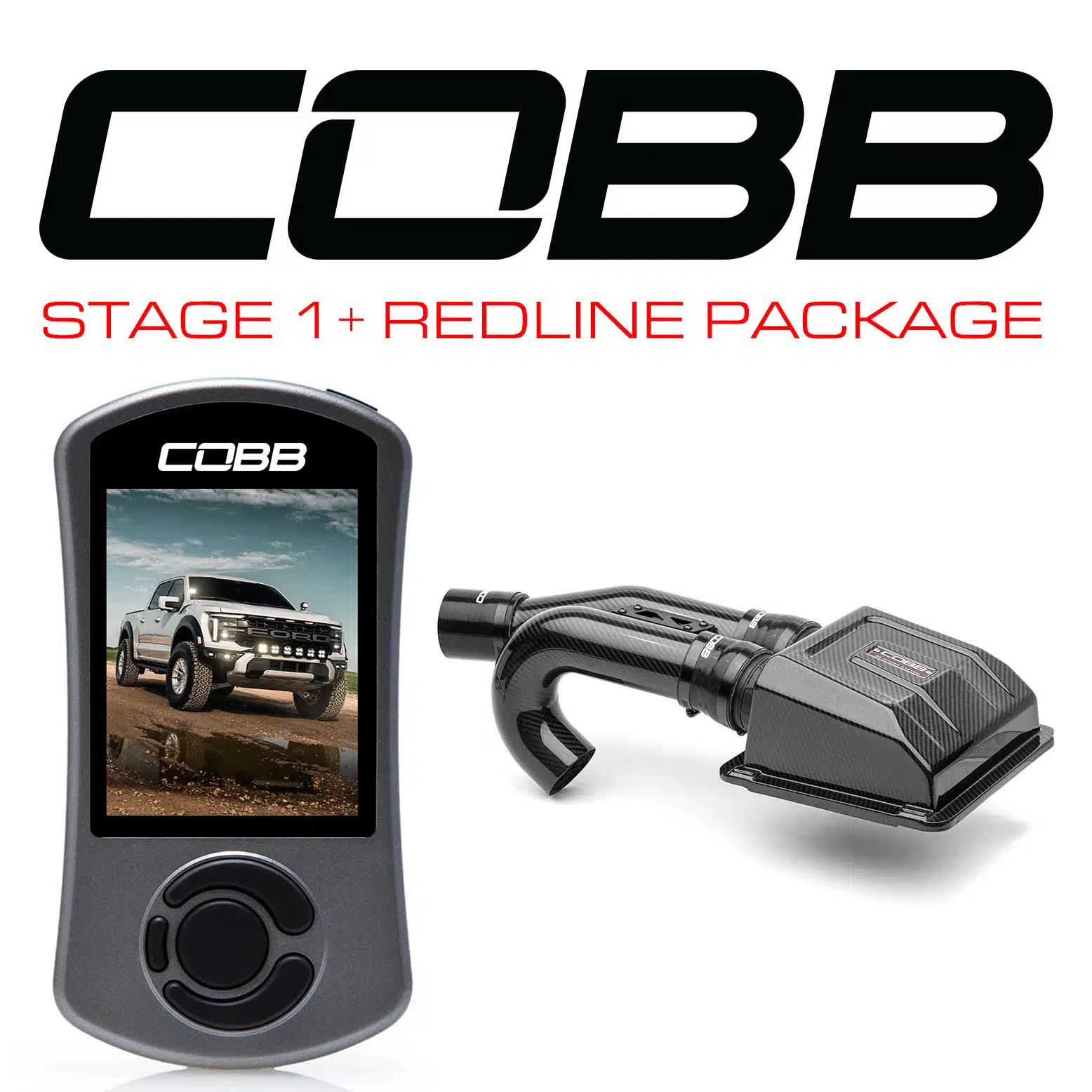

COBB Tuning 2024-2025 Stage 1+ Redline Package with Carbon Fiber Intake for P702 Ford F-150 Raptor

COBB Tuning’s 2024-2025 Stage 1+ Redline Package is the version for owners who lift the hood as often to show the engine bay as to check the oil. Every carbon fiber piece is 3k tow in a 2×2 twill weave under gloss clear coat, and a bespoke carbon lid replaces the factory airbox cover to hold a reusable dual-inlet filter with 165 percent more surface area than stock. Calibration comes from the same Accessport V3 with TCM flashing found in the aluminum Stage 1+ kit, and CARB EO D-660-307 keeps it legal everywhere. If appearance matters little, the aluminum package does the same job for less money.

Construction

The factory piping out of the airbox gives way to 3 inch carbon tubing, and COBB builds the HydroCarbon Trap into that tubing to mirror the factory arrangement while still adding airflow. Black 4-ply silicone couplers join the sections, held by black e-coated stainless steel clamps, so the finished install in the 2024-2025 Stage 1+ Redline Package reads as one dark, tidy assembly.

Features

3k tow carbon fiber in a 2×2 twill weave with gloss clear coat
Carbon airbox lid replacing the factory cover
Reusable dual-inlet high flow filter with 165 percent more surface area than stock
HydroCarbon Trap integrated into the 3 inch tubing
Black 4-ply silicone couplers with black e-coated stainless steel clamps
Accessport V3 with TCM flashing, 100 map slots and six live gauges
COBB vehicle badge included

What’s Included

Accessport V3 with TCM Flashing for 2024-2026 Ford F-150 Raptor (AP3-FOR-016)
COBB Redline Carbon Fiber Intake System with HCT for Ford F-150 EcoBoost Raptor (7F4160)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2024-2025 | 3.5L EcoBoost | USDM

Notes

Does not include an intercooler
50-state legal with CARB EO D-660-307
Off The Shelf maps disable Auto Start/Stop by default
Listed for 2024-2025 US-market F-150 Raptor trucks; the 2021-2023 trucks and the Raptor R need different parts

Frequently Asked Questions

How does the 2024-2025 Stage 1+ Redline Package differ from the aluminum Stage 1+ kit? Both bundles share the Accessport V3 with TCM flashing and a COBB badge. The 2024-2025 Stage 1+ Redline Package swaps the aluminum tubes for 3 inch carbon fiber tubing and adds a carbon airbox lid with a reusable dual-inlet filter. Choose it mainly for the finish and the larger filter surface area.
Is the carbon fiber intake legal in California? Yes. This package carries CARB Executive Order D-660-307, so it is legal for sale and use on emissions-controlled vehicles in all 50 states when installed according to the COBB application guide. The HydroCarbon Trap built into the carbon tubing is the emissions component that COBB retained from the factory design.
What finish does the carbon fiber have? COBB uses 3k tow carbon fiber laid in a 2×2 twill weave and finished with a gloss clear coat on every carbon piece in the system. The couplers are black 4-ply silicone and the clamps are black e-coated stainless steel, so the hardware matches the dark carbon instead of standing out against it.
Is the filter reusable? Yes. COBB describes the dual-inlet high flow filter as reusable, and it offers 165 percent more surface area than the factory filter. It mounts beneath the carbon airbox lid that replaces the stock cover. Follow the COBB service guidance for cleaning.
Does the package include an intercooler or a tune? It includes the tune but no intercooler. The Accessport V3 carries Off The Shelf engine maps, a Performance Tow map and three transmission maps, and it can hold a custom tune from a COBB tuner. An intercooler comes only with the Stage 2 packages for this truck.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
