Capristo Valved Exhaust Muffler for 992 Porsche 911 Carrera & Turbo

Capristo Valved Exhaust Muffler for 992 Porsche 911 Carrera & Turbo

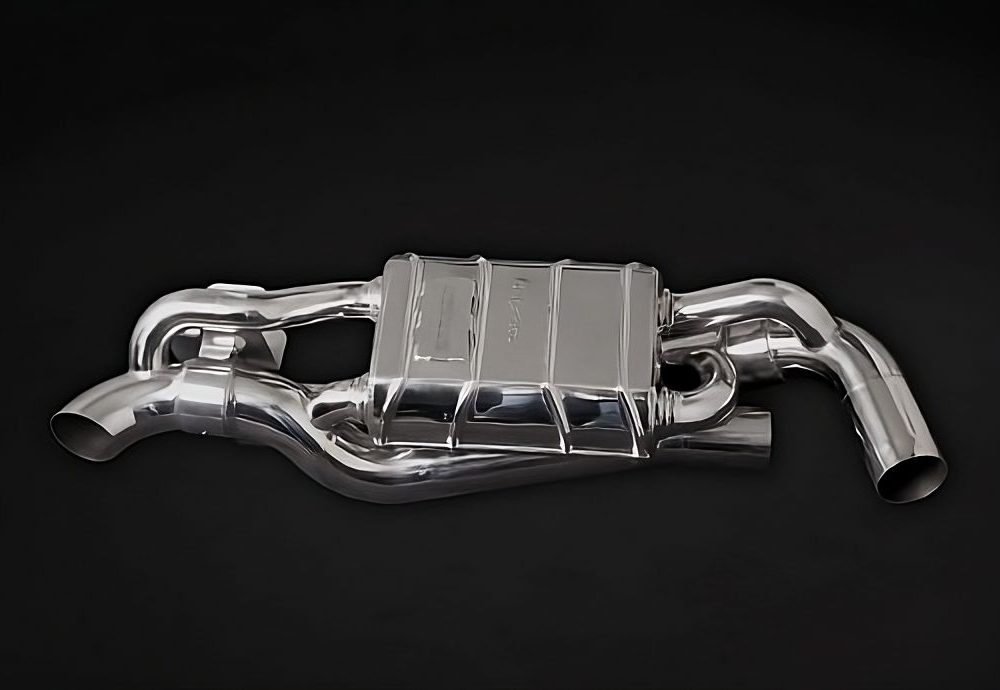

Introducing the Capristo Valved Exhaust Muffler, exclusively tailored for the 992 Porsche 911 Carrera & Turbo. This cutting-edge addition to your vehicle promises to redefine the driving experience by enhancing both performance and sound.

CAPRISTO Exhaust systems are skillfully engineered and fabricated using sophisticated techniques such as 3D Laser-Scanning, CAD Design, Digital prototyping, and CNC-bending/milling at their manufacturing plant in Germany. Each system is constructed from high-quality T309 (1.4828) Stainless Steel and is meticulously hand-polished to achieve a mirror-like finish. After in-depth research, this specific alloy was selected by CAPRISTO for its distinctive features, including the ability to resonate sound, its lightweight nature, and strong durability, properties that closely resemble those of Inconel, a material prominently used in Formula One racing.

The newly designed Capristo exhaust valves for the 992 model are managed electronically and seamlessly incorporate the OEM Actuators, ensuring that the factory valve functions are sustained through the Sport Control feature. This integration enables meticulous regulation of the exhaust system, tailored to individual driver preferences and tolerances, all without the need for supplementary electronics, modules, or remote devices.

When purchasing the Capristo exhaust for the 992 Porsche Carrera and Turbo, customers are provided with a variety of customization options to suit their specific needs and preferences. These options include the integration with OEM Cats & OEM Actuators for those looking to maintain original factory settings. For those seeking advanced control, the OEM Cats & CES3 Version is available. Race enthusiasts may opt for the combination of Race Pipes & OEM Valve Actuators, perfect for maximizing performance. Additionally, two variants involving 250 Cell Sport Cats are offered, either combined with OEM Valve Actuators for optimized flow and response or coupled with the CES3 Version for a blend of performance and control. These choices reflect Capristo’s commitment to offering tailored solutions for diverse driving requirements and tastes.

Specifications

• Carrera / Carrera S – Dyno Proven Gains of 4.9 PS and 18.7 Nm (4.83 hp / 13.79 lb/ft)
  • Stock – 451.5 PS @ 7098rpm / 567.2 Nm @ 3442rpm
  • Capristo – 456.4 PS @ 6610rpm / 585.9 Nm @ 3299rpm
• Turbo / Turbo S – Dyno Proven Gains of 15.4hp and 32Nm
  • Stock – 671.7hp @6792rpm / 738.8 Nm @4137rpm
  • Capristo – 687.1hp @6766rpm / 770.8 Nm @3578rpm

Applications

• 2019+ Porsche 911 Carrera / 3.0L Twin-Turbocharged Flat-6 – 992
• 2019+ Porsche 911 Carrera S / 3.0L Twin-Turbocharged Flat-6 – 992
• 2020+ Porsche 911 Turbo / 3.7L Twin-Turbocharged Flat-6 – 992
• 2020+ Porsche 911 Turbo S / 3.7L Twin-Turbocharged Flat-6 – 992

Notes

• The CES3 Version of this system supersedes the standard OE Electric Actuators by employing block-off adapters and then utilizing vacuum actuators. This change allows for Stand Alone Control of the exhaust valves, independent of the factory-monitored control. As a result, the valves can remain open at idle and open earlier within the RPM range, offering more flexibility and control over the exhaust system’s behavior.
• The exhaust system is designed to be installed directly into existing OEM mounting points.

About Capristo

Capristo has led the way in innovating a series of advancements in the design of performance exhaust systems and carbon fiber accessories. Each CAPRISTO exhaust is crafted from T309 stainless steel, specially formulated for extreme temperature uses (exceeding 600°C). The creation process involves mandrel-bent tubing and hand-welded assembly, executed with the highest level of care and expertise.
