How are the valves controlled on this Capristo Giulia Quadrifoglio exhaust?

Valve position is controlled through the included CES-3 programmable exhaust remote kit. It reads exhaust back-pressure and opens the butterfly valves at a preset threshold under acceleration, and a key fob lets the driver set Cruise, Sport, or Open mode directly rather than relying on the factory drive modes.

Is the CES-3 remote kit included or a separate purchase?

The CES-3 programmable exhaust remote kit is included with every Capristo Giulia Quadrifoglio exhaust system. It ships with a 444 MHz key fob, vacuum solenoid, and a pre-wired harness that only needs power and ground to install.

What happens to the valves if the CES-3 kit loses power?

The CES-3 has a built-in failsafe that leaves the valves fully open in the event of an electrical or vacuum fault, which protects the engine from potential damage until the fault is resolved.

What tip finishes are available on this Capristo Giulia Quadrifoglio exhaust?

The carbon tips are available in a choice of black or silver finish, both built from the same Type L carbon fiber weave with a hand applied German clear coat.

Are the carbon tips painted or raw carbon?

The tips ship with a premium German clear coat hand applied over the finished weave at Capristo's factory, rather than as raw carbon requiring separate paint prep.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

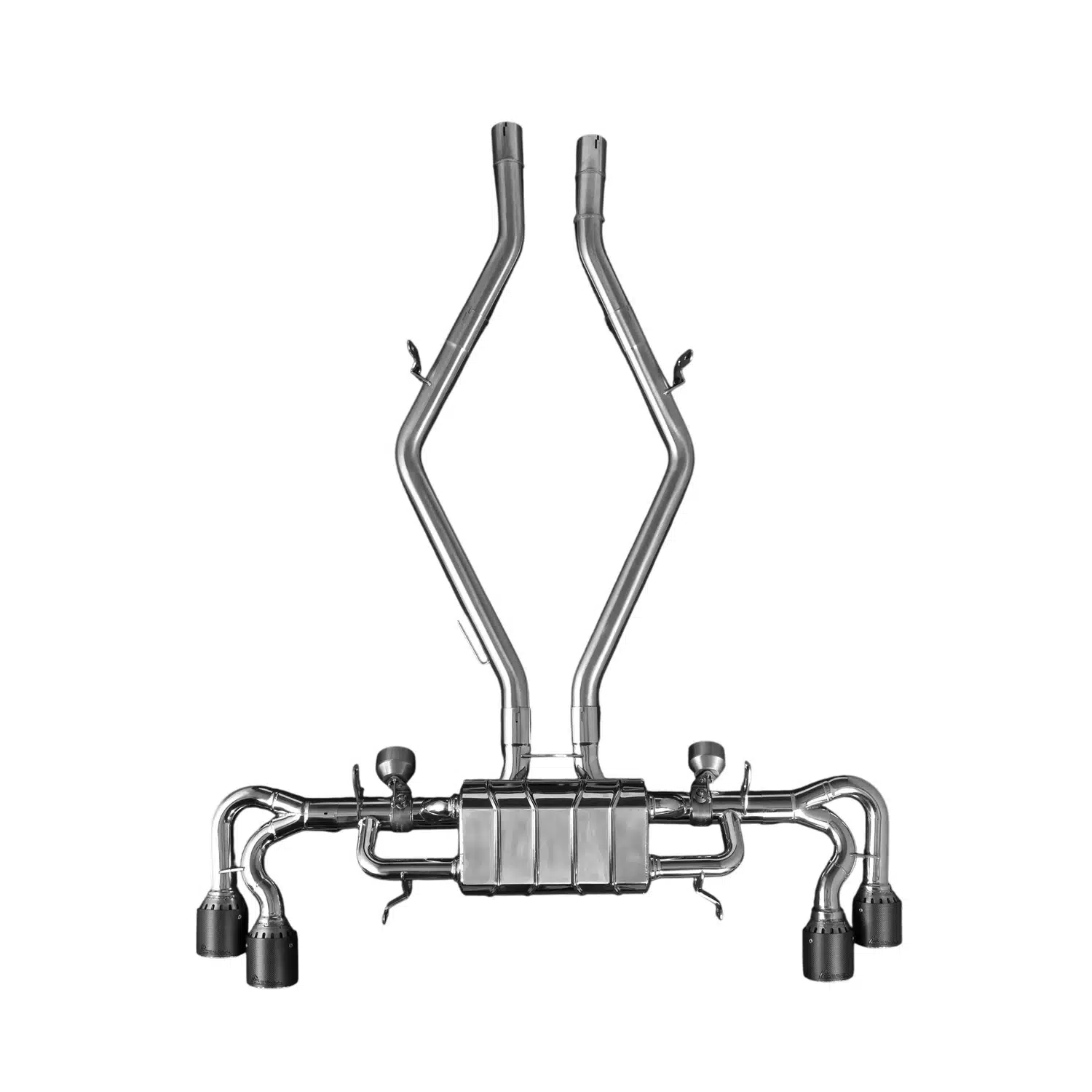

Capristo Valved Exhaust System with Carbon Tips for 952 Alfa Romeo Giulia Quadrifoglio

The Capristo Giulia Quadrifoglio exhaust replaces a factory system that keeps the 690T V6 quieter than an engine with this pedigree deserves, an engine developed by Ferrari engineers off the F154 architecture. Capristo manufactures the entire system at its own factory in Sundern, Germany using 3D laser-scanning, CAD design, digital prototyping, and CNC bending and milling, then manually TIG welds every joint and hand polishes the finished piece to a mirror finish. Construction is highest-grade T309 stainless steel, which Capristo notes shares resonance properties with Inconel, the alloy Formula 1 exhaust systems are built from, and the design carries a patented reinforcement aimed at eliminating resonance rather than relocating it further down the system. The tips finish in carbon, built from the same Type L carbon fiber weave grade Ferrari specifies for its own OEM parts, hand laid entirely in a prepreg process with no fiberglass, cured in Italian-built Maroso SRL autoclaves, and finished with a hand applied premium German clear coat. Tips are available in black or silver. It’s a system for a Quadrifoglio owner who already knows the Ferrari-built V6’s character and wants it heard without introducing drone at cruise.

CES-3 Programmable Exhaust Remote Kit

Every Capristo Giulia Quadrifoglio exhaust system includes the CES-3 programmable exhaust remote kit, which controls the proprietary Capristo valves rather than leaving them tied to the factory drive modes. The control unit reads exhaust back-pressure continuously and opens the butterfly valves at a preset threshold under acceleration, freeing up flow and volume where you want it, while holding more back-pressure at low throttle and low rpm for better torque and everyday drivability. The kit ships with a 444 MHz remote key fob, a vacuum solenoid, and a pre-wired harness that only needs power and ground to install, so there’s no splicing into the factory exhaust wiring. An on-board self-learning function lets you pair additional key fobs, and a built-in failsafe leaves the valves open in the event of an electrical or vacuum fault, protecting the engine from damage. You can also save a default valve setting, so the system starts the way you left it without needing to reselect a mode every time you start the car.
- Cruise Mode: Valves only open at higher exhaust pressure for a quieter, more comfortable drive.
- Sport Mode: Valves open sooner under load for a more aggressive exhaust note and increased performance.
- Open Mode: Valves remain fully open, optimized for track-use or when maximum volume is desired.

Features

Engineered specifically for the 952 Alfa Romeo Giulia Quadrifoglio
T309 stainless steel construction
Valvetronic
Patented reinforced design
Eliminates resonance
100% manufactured and hand TIG welded at Capristo’s own factory in Sundern, Germany
Hand polished to a mirror finish post-weld
Carbon tips built from Type L carbon fiber weave, the same grade Ferrari specifies for its own OEM carbon parts
Completely hand laid prepreg tip construction with no fiberglass
Cured in Italian-built Maroso SRL autoclaves
Hand applied premium German clear coat over the finished tip weave
Tips available in black or silver finish
Uses the CES-3 programmable exhaust remote kit to control valves (included)

Applications

Alfa Romeo Giulia Quadrifoglio: 952 | 2016-present | 690T 2.9L V6 twin-turbo

Notes

Uses CES-3 programmable exhaust remote kit to control valves, included with purchase
The CES-3 key fob design may differ from the picture while functionality and pairing process remain the same

Frequently Asked Questions

How are the valves controlled on this Capristo Giulia Quadrifoglio exhaust? Valve position is controlled through the included CES-3 programmable exhaust remote kit. It reads exhaust back-pressure and opens the butterfly valves at a preset threshold under acceleration, and a key fob lets the driver set Cruise, Sport, or Open mode directly rather than relying on the factory drive modes.
Is the CES-3 remote kit included or a separate purchase? The CES-3 programmable exhaust remote kit is included with every Capristo Giulia Quadrifoglio exhaust system. It ships with a 444 MHz key fob, vacuum solenoid, and a pre-wired harness that only needs power and ground to install.
What happens to the valves if the CES-3 kit loses power? The CES-3 has a built-in failsafe that leaves the valves fully open in the event of an electrical or vacuum fault, which protects the engine from potential damage until the fault is resolved.
What tip finishes are available on this Capristo Giulia Quadrifoglio exhaust? The carbon tips are available in a choice of black or silver finish, both built from the same Type L carbon fiber weave with a hand applied German clear coat.
Are the carbon tips painted or raw carbon? The tips ship with a premium German clear coat hand applied over the finished weave at Capristo’s factory, rather than as raw carbon requiring separate paint prep.

About Capristo

Capristo has built exhaust systems out of its own factory in Sundern, Germany since 1990, starting with systems for Ferrari and other exotic manufacturers before expanding into BMW M and other high-performance platforms. Every system is designed in-house using 3D laser-scanning, CAD modeling, digital prototyping, and CNC bending and milling, then hand TIG welded and polished by Capristo’s own craftsmen rather than outsourced to a third-party fabricator. Capristo builds exclusively from T309 stainless steel, a grade chosen for its heat resistance and long service life under repeated thermal cycling, and backs it with a patented reinforced design aimed at eliminating resonance rather than masking it. The result is a company that still manufactures everything at one factory, under one roof, the same way it did on its first exotic-car systems more than three decades ago.
