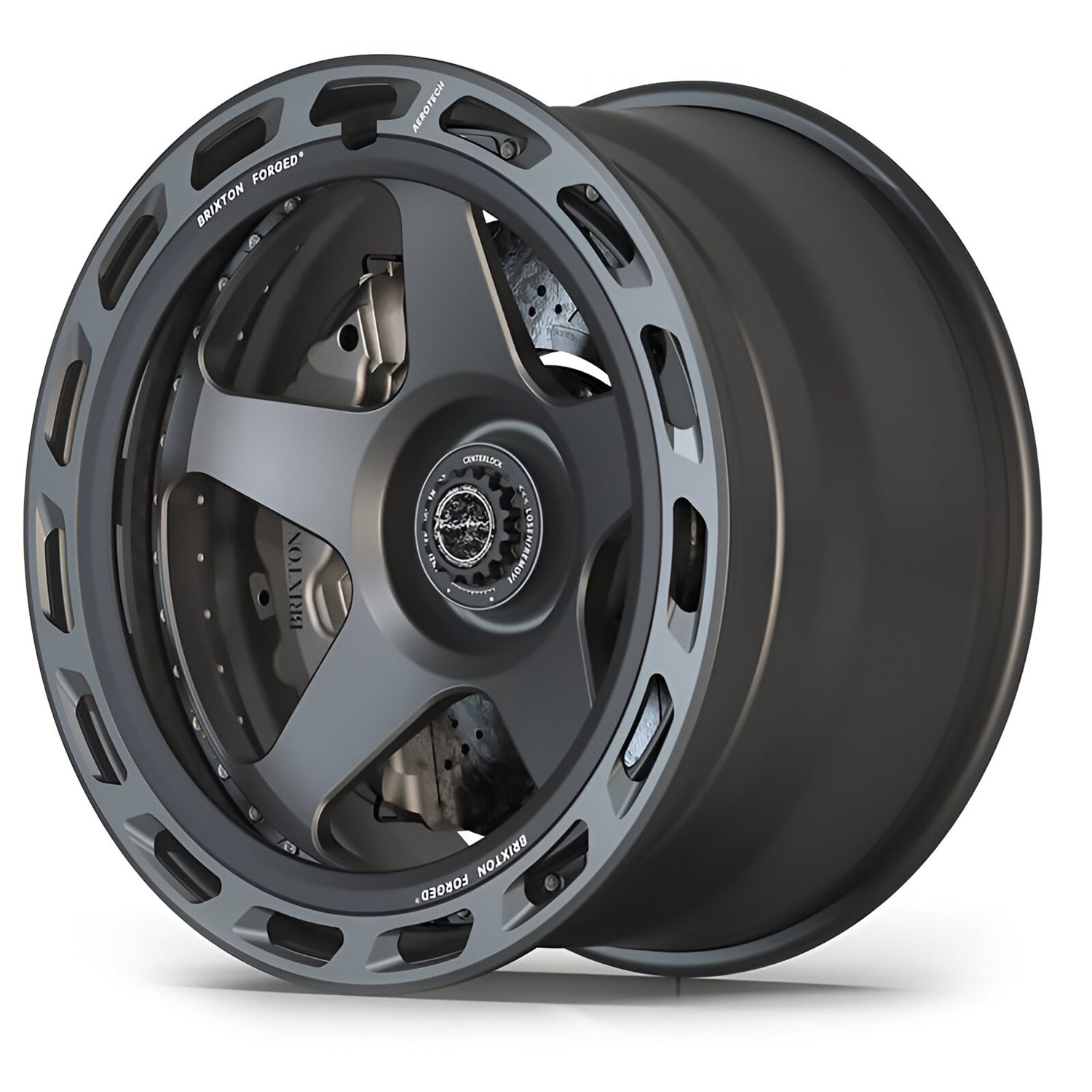

Brixton Forged Aerotech Series TR04 Wheel

The Brixton Forged Aerotech Series starts with a 3-piece forged aluminum base built from APP 6061-T6 aerospace-grade faces and rim halves, with the bolt-on Vented Disc moving the construction to 4-piece in its standard 1-piece form. Choosing the 2-piece Vented Disc configuration takes the build to 5-piece and opens up independent finish control that the single-piece version doesn’t provide. The Vented Disc is available in standard and premium powder-coat colors as well as Classic Twill and Forged Carbon fiber options in gloss or satin clear. Each wheel is built to order per application through custom CNC machining, with the Blind Vented Ring flush mount system and directionally vented flange keeping the visual language of the series consistent across both configurations. Backpad pocketing and water channeling manage unsprung mass and rotational inertia, and every wheel is tested to a 750kg minimum load rating meeting TÜV, SAE, JWL, and VIA standards. Stainless and PVD titanium hardware options, centerlock compatibility, OEM TPMS fitment, and a lifetime structural production warranty come standard across the lineup.

Vented Ring & Aero Ring Options

• The Vented Disc is where the Aerotech’s functional and visual identity is rooted, bolting directly onto the 3-piece forged base and using directional venting to push airflow toward the brake components on platforms where managing brake heat under load is a genuine performance consideration. The 1-piece configuration treats the disc as a single finished surface, while the 2-piece version breaks it into independently finished sections for builds that need that degree of specification. Standard and premium powder-coat colors are available across both, alongside Classic Twill and Forged Carbon fiber options in gloss or satin clear.
  • Standard Color Options:
    • Blue
    • Firecracker black
    • Forged bronze
    • Green
    • Grey
    • Hastings blue
    • Kingsport grey
    • Lunar white
    • ODB
    • Orange
    • Purple
    • Red
    • Sterling silver
    • Trofeo gold
    • Yellow
  • Premium Color Options:
    • Carbon bronze
    • Carbon red
    • Classic bronze
    • Double tint
    • Olympic bronze
    • Oxford gold
    • Raw aluminum
    • Single tint
    • Smoke black
    • Triple tint
  • Carbon Fiber Options:
    • Gloss twill
    • Satin twill
    • Gloss forged
    • Satin forged

Hardware Options

• Brixton Forged modular wheels support fully hidden, fully exposed, and 50/50 hardware configurations, giving buyers direct control over how the assembly hardware reads within the finished wheel.
  • 6-PT Torx Stainless Hardware:
    • Anodized black (standard)
    • Polished (standard)
    • Gloss black
    • Gloss blue
    • Gloss green
    • Gloss grey
    • Gloss orange
    • Gloss purple
    • Gloss red
    • Gloss white
    • Gloss yellow
  • 6-PT Torx Titanium:
    • PVD black
    • Raw

Center-Cap Options

• Brixton Forged’s original center-cap options are available across all standard 5 and 6-lug PCD applications, covering the most commonly used platforms without requiring any custom fitment work.
  • Satin piano black
  • Classic gloss twill carbon fiber
  • Gloss forged carbon fiber
• Centerlock fitments are handled through dedicated options developed around specific vehicles, and Brixton Forged also offers direct OEM badge replacements for Porsche and Lamborghini centerlock applications.
  • Classic gloss twill carbon fiber
  • Gloss forged carbon fiber

Text & Groove Fill Options

• Brixton’s Text and Groove Fill program is for builds where specific design details need color to stand apart from the base finish. Epoxy accents can be placed on the Brixton logo, wheel name, series name, and design-specific grooves or spokes, with up to 3 fill applications per wheel depending on the design. Standard colors are Black, Blue, Green, Grey, Orange, Purple, Red, White, and Yellow, with all other colors available on request.

Finishing Options

• Brixton Forged’s finish catalog covers more than 6,000 powder-coat and Cerakote options across solid opaque, textured, and transparent clear categories, giving builders a well-organized range to work from across the full forged wheel lineup.
  • Standard Colors: Solid opaques, textures, metallics
    • Solid finishes are selected annually through collaboration with international partners and global collaborators, keeping gloss, matte, satin, and textured options consistent and intentional from one season to the next.
      • Firecracker black
      • Forged bronze
      • Hastings blue
      • Kingsport grey
      • Lunar white
      • ODB
      • Sterling silver
      • Trofeo gold
  • Premium Colors: Transparent clear hues over brushed or polished aluminum
    • Premium transparent finishes are built over ceramic-polished aluminum with multiple layers of transparent high-grade powder coat applied to develop surface depth and clarity. Brushed finishes begin with 120-grit hand-brushed aluminum before a transparent coat seals the grain and preserves the handworked character of the surface. Polished Mirror Gloss, Polished Anodized Satin, Brushed Gloss, and Brushed Satin are available across both finish paths.
      • Carbon bronze
      • Carbon red
      • Classic bronze
      • Double tint
      • Olympic bronze
      • Oxford gold
      • Raw aluminum
      • Single tint
      • Smoke black
      • Triple tint

Features

• Aerotech Series
• 6061-T6 aerospace forged aluminum
• Blind vented ring
• Flush mount system
• Stainless & PVD titanium hardware options available
• Tested to 750kg min. load rating
• Meets TÜV / SAE / JWL / VIA standards
• Multiple text fill placements optional
• Built-to-order per application
• Custom CNC machined
• Mid & deep-concave (application dependent)
• Standard backpad pocketing & water channeling
• Minimize unsprung mass & rotational inertia for maximum performance and handling
• OEM TPMS compatible
• Lifetime structural production warranty & 2-year finish warranty

Specifications

• Construction: 4-piece / 5-piece vented modular
• Diameters:
  • 18″
  • 19″
  • 20″
  • 21″
  • 22″
  • 23″
• Widths:
  • 8″
  • 8.5″
  • 9″
  • 9.5″
  • 10″
  • 10.5″
  • 11″
  • 11.5″
  • 12″
  • 12.5″
  • 13″
  • 13.5″
  • 14″
  • 14.5″
  • 15″
  • 15.5″
  • 16″
• Offsets: Custom
• Hardware:
  • Fully exposed
  • Exposed 50/50
  • Hidden

Other TR04 Configurations

• AERO1 SERIES 1-piece lightweight vented monoblock
• AERO3 SERIES 3-piece vented deep concave
• TR SERIES 1-piece lightweight monoblock
• TR CIRCUIT+ SERIES 3-piece classic profile

Notes

• All Brixton Forged wheels are individually crafted from the finest materials to your individual spec. There are no “off the shelf” Brixton wheels and as such, a lead time of a few weeks is to be expected once your spec has been finalized. The Bulletproof Team will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.
• Standard PCD center caps are not available in any PCD lower than 100mm, OEM center cap adapters may be required
• If the Text & Groove Fill option is selected, a Bulletproof Automotive Wheel Specialist will reach out to you to go over options. Please note, only up to 3 fill instances are available per wheel; all color options are available.
• Standard, premium, and custom color finishes available for hardware

About Brixton Forged

Brixton Forged wheels are entirely conceived and hand-crafted in their manufacturing facility based in Los Angeles, California. With its origins in Los Angeles, their product development team brings decades of experience in creating the highest quality forged wheels in the industry. The team consists of professional Mechanical Engineers and Machinists who spare no effort in the product development process, ensuring no corners are cut. They have a thorough understanding of Vehicle Dynamics, OEM load ratings, and Material Science, equipping them with the necessary skills to engineer wheels that are not only visually stunning but also safe and designed to perform. Brixton Forged has its own team of Mechanical Engineers and technical staff who individually engineer and conduct FEA testing on every wheel set. Their product development team’s wealth of experience enables them to consistently deliver wheels of the highest quality in the industry. Their team of professional Mechanical Engineers ensures no compromises are made throughout the product development process. With a deep understanding of Vehicle Dynamics, OEM load ratings, and Material Science, their team possesses the necessary skills to engineer wheels that are both visually impressive and safe, designed to deliver exceptional performance.
