What separates the edirb 171 Reclining Bucket Seat from the 172?

Cushion height, and nothing else. The 171 is the standard cushion and the 172 is the low cushion, on the same STRADIA III shell with identical materials, weight and rail fitment. Take the 172 if headroom is tight or a lower hip point is wanted, and the 171 otherwise.

How does it compare to the edirb 161?

Different shell. This one uses the STRADIA III at 555mm across the shoulders; the 161 uses the GIAS III at 560mm. The GIAS III carries deeper shoulder support and taller side bolsters, the STRADIA III is shaped for easier entry and exit and takes a larger under-thigh belt hole.

Is this seat FIA approved?

No. BRIDE supplies it without an FIA certification label, so it is not eligible for classes that require an FIA homologated seat. The edirb 171 Reclining Bucket Seat is built to the Japanese safety standard, and the bolstering is there for fast road and occasional track use rather than for competition.

What does the carbon shell do for it?

It is what holds the seat to 31.7lbs while carrying this much bolster and a reclining mechanism. BRIDE publishes no comparison against an FRP version of the same shell, so the exact saving over one is not something this listing can state.

Which seat rails fit it?

BRIDE lists rail types LR, RO, RB and RK, and states the correct one varies by vehicle. Rails are vehicle specific and sold separately, so confirm the type against the chassis before ordering rather than assuming from another BRIDE seat.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

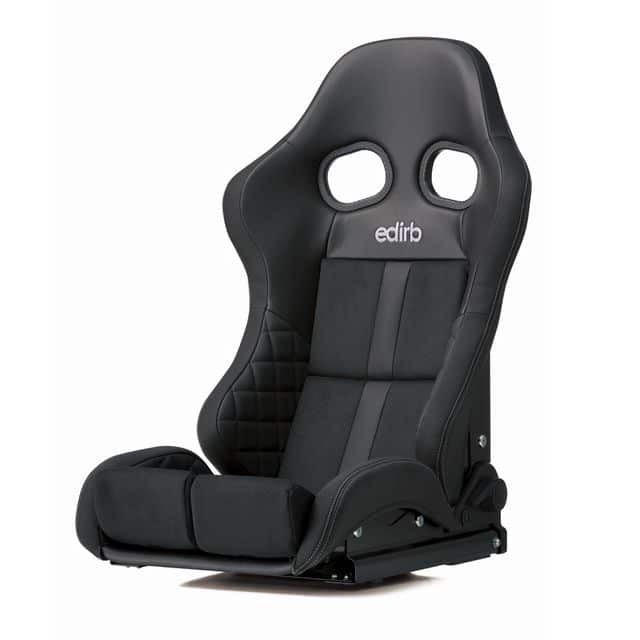

BRIDE edirb 171 Reclining Bucket Seat

The BRIDE edirb 171 Reclining Bucket Seat is the STRADIA III shell wearing the edirb material set, and the one built to be lived with. BRIDE shapes the STRADIA III to balance getting in and out against holding the driver once seated, and gives it a larger under-thigh belt hole than the GIAS III shell so a harness can be run without fighting the cushion. At 555mm across the shoulders it is the narrower shell, on carbon, at 31.7lbs.

Construction

A carbon shell carries the load, which is what keeps a reclining seat with this much side bolster down to 31.7lbs. Over it sit three skin materials, each placed for what that part of the seat has to survive. Protein Leather, developed from reclaimed silk and eggshell protein, takes the main panels. Ultrasuede covers the backrest and seat base, where its grip holds the driver through a corner. Vigaprimo, a vegan leather, faces the upper surface of each side support, the first place a reclining seat wears through. All three sit over a flame-retardant base.

Features

Carbon shell
Standard cushion height
Shell geometry carried from the STRADIA III
Three stitch colors: silver, red and blue
Made in Japan

Specifications

Model Name: edirb 171 -STRADIA III STD-
Base Model: STRADIA III
Cushion Type: Standard
Shell: Carbon
Skin Materials: Protein Leather, Ultrasuede and Vigaprimo over flame-retardant fabric
Shoulder Width: 555mm
Base Width: 445mm
Height: 860mm
Back Height: 580mm
Depth: 710mm
Seat Depth: 460mm
Weight: 31.7lbs (14.4kg)
FIA Homologation: None

Notes

Vehicle-specific seat rails (sold separately) are required for installation
Sold as a single seat
BRIDE catalogs its edirb arm rests for the 054V, 064V and 132V only, not for this seat
Built and imported from Japan. For current lead times, contact us

Frequently Asked Questions

What separates the edirb 171 Reclining Bucket Seat from the 172? Cushion height, and nothing else. The 171 is the standard cushion and the 172 is the low cushion, on the same STRADIA III shell with identical materials, weight and rail fitment. Take the 172 if headroom is tight or a lower hip point is wanted, and the 171 otherwise.
How does it compare to the edirb 161? Different shell. This one uses the STRADIA III at 555mm across the shoulders; the 161 uses the GIAS III at 560mm. The GIAS III carries deeper shoulder support and taller side bolsters, the STRADIA III is shaped for easier entry and exit and takes a larger under-thigh belt hole.
Is this seat FIA approved? No. BRIDE supplies it without an FIA certification label, so it is not eligible for classes that require an FIA homologated seat. The edirb 171 Reclining Bucket Seat is built to the Japanese safety standard, and the bolstering is there for fast road and occasional track use rather than for competition.
What does the carbon shell do for it? It is what holds the seat to 31.7lbs while carrying this much bolster and a reclining mechanism. BRIDE publishes no comparison against an FRP version of the same shell, so the exact saving over one is not something this listing can state.
Which seat rails fit it? BRIDE lists rail types LR, RO, RB and RK, and states the correct one varies by vehicle. Rails are vehicle specific and sold separately, so confirm the type against the chassis before ordering rather than assuming from another BRIDE seat.

About BRIDE

BRIDE is a Japan-based manufacturer specializing in seats and rail components designed to sit closest to the driver, offering maximum protection in a collision. Their ASEA-accredited products meet full vehicle inspection standards and pass six rigorous safety tests covering seat back impact, head restraint performance, seat and belt mounting, and flame resistance. BRIDE is also the first Japanese company to receive FIA endorsement for its seats, with nine models approved for international competition. Every seat is built by hand in Japan using precision-engineered shells and technical fabrics, with all components sourced domestically to keep quality tightly controlled from start to finish.
