What does the edirb 132V Reclining Bucket Seat replace?

The edirb 132, which BRIDE has retired. The V model moves to the STREAMS CRUZ shell, adds quilted side supports and a center line across the seat face, and moves the logo from the headrest down to the neck. The three stitch colors carry over as silver, blue and red.

Is this seat FIA approved?

No. BRIDE supplies it without an FIA certification label, so it is not eligible for classes that require an FIA homologated seat. It is built to the Japanese safety standard and passes vehicle inspection on BRIDE rails. The edirb 132V Reclining Bucket Seat is a touring seat, not a competition one.

What does the heater option add?

A 12V heating element in the backrest and seating surface. It warms the driver directly rather than waiting on engine heat, so it heats quickly in cold weather. The heater is installed during manufacture and cannot be fitted later, so it is chosen at the time of order.

How big is it and what does it weigh?

The seat measures 560mm across at its widest point, 880mm tall and 540mm from the backrest to the front of the cushion, and weighs 15.3kg, or about 33.7lbs. Those are the STREAMS CRUZ shell figures; BRIDE publishes no drawing specific to the V. Check the width against a narrow cabin before ordering.

Which seat rails fit it?

BRIDE lists rail types MO, MB, MK and YZ. The correct type depends on the vehicle, the seating position and whether a low or standard mounting height is wanted. Rails are vehicle specific and sold separately, so confirm the type against the chassis before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

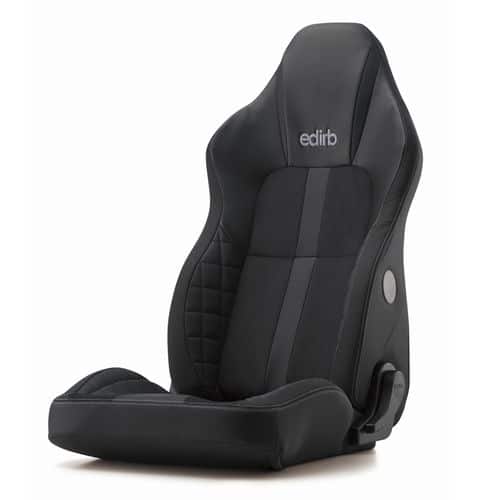

BRIDE edirb 132V Reclining Bucket Seat

BRIDE’s edirb 132V Reclining Bucket Seat replaces the edirb 132 and is the first of the line built on the STREAMS CRUZ shell. The edirb brief has always been a reclining seat a driver can sit in for hours without giving up lateral support, and the V model pursues that through its surfaces rather than its shape. The logo has come off the headrest and moved down to the neck at a smaller size, the side supports are quilted, and a center line runs down the seat face. It is a quieter, more finished seat than the one it replaces.

Construction

Three skin materials sit over a flame-retardant base, each placed deliberately. Protein Leather, developed from reclaimed silk and eggshell protein, takes the main surfaces. Ultrasuede covers the backrest and seat base, where its grip holds the driver in place once seated while still allowing an easy slide in and out. Vigaprimo, a vegan leather, faces the upper surface of each side support, where BRIDE specifies it for abrasion resistance. BRIDE states it takes roughly half the production energy of a conventional synthetic.

Features

One-touch reclining lever
Optional 12V seat heater in the backrest and seating surface
Quilted side supports
Seating sensor fitted as standard
Made in Japan

Specifications

Colors: Black with silver, blue or red stitching
Skin Materials: Protein Leather, Ultrasuede and Vigaprimo over flame-retardant fabric
Width: 560mm (at its widest point)
Height: 880mm
Seat Depth: 540mm (BRIDE publishes no overall depth figure for the STREAMS CRUZ shell)
Weight: 15.3kg (33.7lbs)
FIA Homologation: None

Notes

Vehicle-specific seat rails (sold separately) are required for installation
Sold as a single seat
The edirb 132V Reclining Bucket Seat is supplied without an FIA certification label and is not eligible for competition classes that require an FIA-approved seat
The seat heater is fitted during manufacture and cannot be added afterwards
Threaded for the BRIDE edirb left and right arm rests, sold separately
Built and imported from Japan. For current lead times, contact us

Frequently Asked Questions

What does the edirb 132V Reclining Bucket Seat replace? The edirb 132, which BRIDE has retired. The V model moves to the STREAMS CRUZ shell, adds quilted side supports and a center line across the seat face, and moves the logo from the headrest down to the neck. The three stitch colors carry over as silver, blue and red.
Is this seat FIA approved? No. BRIDE supplies it without an FIA certification label, so it is not eligible for classes that require an FIA homologated seat. It is built to the Japanese safety standard and passes vehicle inspection on BRIDE rails. The edirb 132V Reclining Bucket Seat is a touring seat, not a competition one.
What does the heater option add? A 12V heating element in the backrest and seating surface. It warms the driver directly rather than waiting on engine heat, so it heats quickly in cold weather. The heater is installed during manufacture and cannot be fitted later, so it is chosen at the time of order.
How big is it and what does it weigh? The seat measures 560mm across at its widest point, 880mm tall and 540mm from the backrest to the front of the cushion, and weighs 15.3kg, or about 33.7lbs. Those are the STREAMS CRUZ shell figures; BRIDE publishes no drawing specific to the V. Check the width against a narrow cabin before ordering.
Which seat rails fit it? BRIDE lists rail types MO, MB, MK and YZ. The correct type depends on the vehicle, the seating position and whether a low or standard mounting height is wanted. Rails are vehicle specific and sold separately, so confirm the type against the chassis before ordering.

About BRIDE

BRIDE is a Japan-based manufacturer specializing in seats and rail components designed to sit closest to the driver, offering maximum protection in a collision. Their ASEA-accredited products meet full vehicle inspection standards and pass six rigorous safety tests covering seat back impact, head restraint performance, seat and belt mounting, and flame resistance. BRIDE is also the first Japanese company to receive FIA endorsement for its seats, with nine models approved for international competition. Every seat is built by hand in Japan using precision-engineered shells and technical fabrics, with all components sourced domestically to keep quality tightly controlled from start to finish.
