How does the edirb 0A1 Bucket Seat differ from the rest of the line?

Shell and certification. This is a fixed back full bucket on the ZETA IV shape, where the 161, 162, 171 and 172 are reclining seats on the GIAS III and STRADIA III shells. BRIDE lists this one as FIA standard certified and those four as not.

Is this seat FIA approved?

BRIDE states that the edirb 0A1 Bucket Seat is an FIA standard certified model. It does not print the homologation number or the expiry, and a scrutineer wants both, so contact us to confirm the label before entering a class that requires one.

What does the LOWMAX System do?

It lowers the seating position so seat center lines up with steering center. BRIDE used to keep LOWMAX to selected models and now applies it far more widely, which is why this seat fits a longer list of vehicles than an older ZETA does.

How big is it and what does it weigh?

It measures 560mm across the shoulders and 460mm across the base, stands 890mm tall with a 600mm back, and runs 710mm deep on a 450mm cushion. Weight is 17.2lbs, or 7.8kg. Check the base width against the transmission tunnel first.

Which seat rails fit it?

BRIDE lists types LF, FO, FB, FK, FT, FG, IG, LG and FX, and states the correct one varies by vehicle. Rails are vehicle specific and sold separately, so confirm the type against the chassis rather than assuming from another BRIDE seat.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

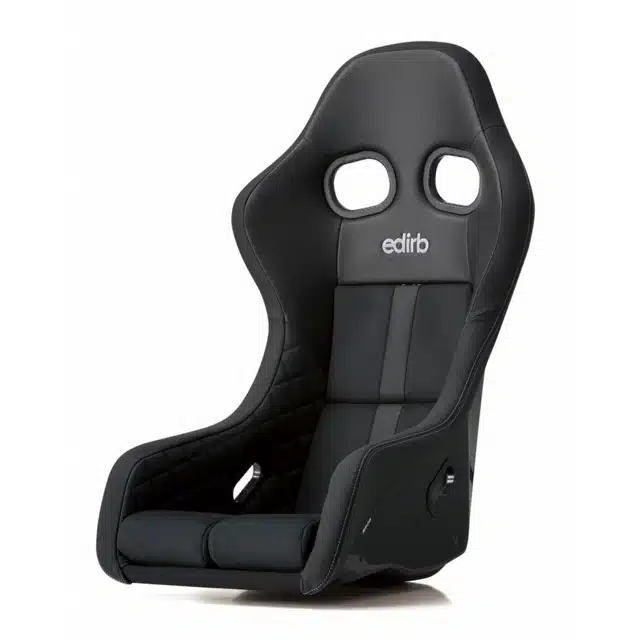

BRIDE edirb 0A1 Bucket Seat

The BRIDE edirb 0A1 Bucket Seat is the ZETA IV shell in edirb trim, and BRIDE lists it as an FIA standard certified model, which sets it apart from the reclining seats in the same line. ZETA is the shape BRIDE has built its full buckets around since 1990, drawn from the human skeleton rather than any one competition rule book. The 0A1 keeps that geometry and swaps the skin for the three-material edirb set, on carbon, at 17.2lbs.

Construction

A carbon shell carries the load and holds the seat to 17.2lbs. Over it sit three skin materials, each placed for what that part of the seat has to take. Protein Leather covers the main panels, Ultrasuede takes the backrest and seat base where its grip holds the driver through a corner, and Vigaprimo faces the upper surface of each side support, the first place a bucket seat wears through. All three sit over a flame-retardant base, under an antibacterial treatment that works against odor as well as bacteria.

Features

Antibacterial treatment covering sanitizing and deodorizing
Carbon shell
FIA standard certified model
LOWMAX System brings seat center in line with steering center
Made in Japan
Seating sensor fitted as standard
Three stitch colors: gray, red and blue

Specifications

Model Name: edirb 0A1 -ZETA IV-
Base Model: ZETA IV
Shell: Carbon
Skin Materials: Protein Leather, Ultrasuede and Vigaprimo over flame-retardant fabric
Shoulder Width: 560mm
Base Width: 460mm
Height: 890mm
Back Height: 600mm
Depth: 710mm
Seat Depth: 450mm
Weight: 17.2lbs (7.8kg)
FIA: FIA standard certified model

Notes

Vehicle-specific seat rails (sold separately) are required for installation
Sold as a single seat
BRIDE lists the edirb 0A1 Bucket Seat as an FIA standard certified model but does not publish the homologation number or its expiry
Built and imported from Japan. For current lead times, contact us

Frequently Asked Questions

How does the edirb 0A1 Bucket Seat differ from the rest of the line? Shell and certification. This is a fixed back full bucket on the ZETA IV shape, where the 161, 162, 171 and 172 are reclining seats on the GIAS III and STRADIA III shells. BRIDE lists this one as FIA standard certified and those four as not.
Is this seat FIA approved? BRIDE states that the edirb 0A1 Bucket Seat is an FIA standard certified model. It does not print the homologation number or the expiry, and a scrutineer wants both, so contact us to confirm the label before entering a class that requires one.
What does the LOWMAX System do? It lowers the seating position so seat center lines up with steering center. BRIDE used to keep LOWMAX to selected models and now applies it far more widely, which is why this seat fits a longer list of vehicles than an older ZETA does.
How big is it and what does it weigh? It measures 560mm across the shoulders and 460mm across the base, stands 890mm tall with a 600mm back, and runs 710mm deep on a 450mm cushion. Weight is 17.2lbs, or 7.8kg. Check the base width against the transmission tunnel first.
Which seat rails fit it? BRIDE lists types LF, FO, FB, FK, FT, FG, IG, LG and FX, and states the correct one varies by vehicle. Rails are vehicle specific and sold separately, so confirm the type against the chassis rather than assuming from another BRIDE seat.

About BRIDE

BRIDE is a Japan-based manufacturer specializing in seats and rail components designed to sit closest to the driver, offering maximum protection in a collision. Their ASEA-accredited products meet full vehicle inspection standards and pass six rigorous safety tests covering seat back impact, head restraint performance, seat and belt mounting, and flame resistance. BRIDE is also the first Japanese company to receive FIA endorsement for its seats, with nine models approved for international competition. Every seat is built by hand in Japan using precision-engineered shells and technical fabrics, with all components sourced domestically to keep quality tightly controlled from start to finish.
